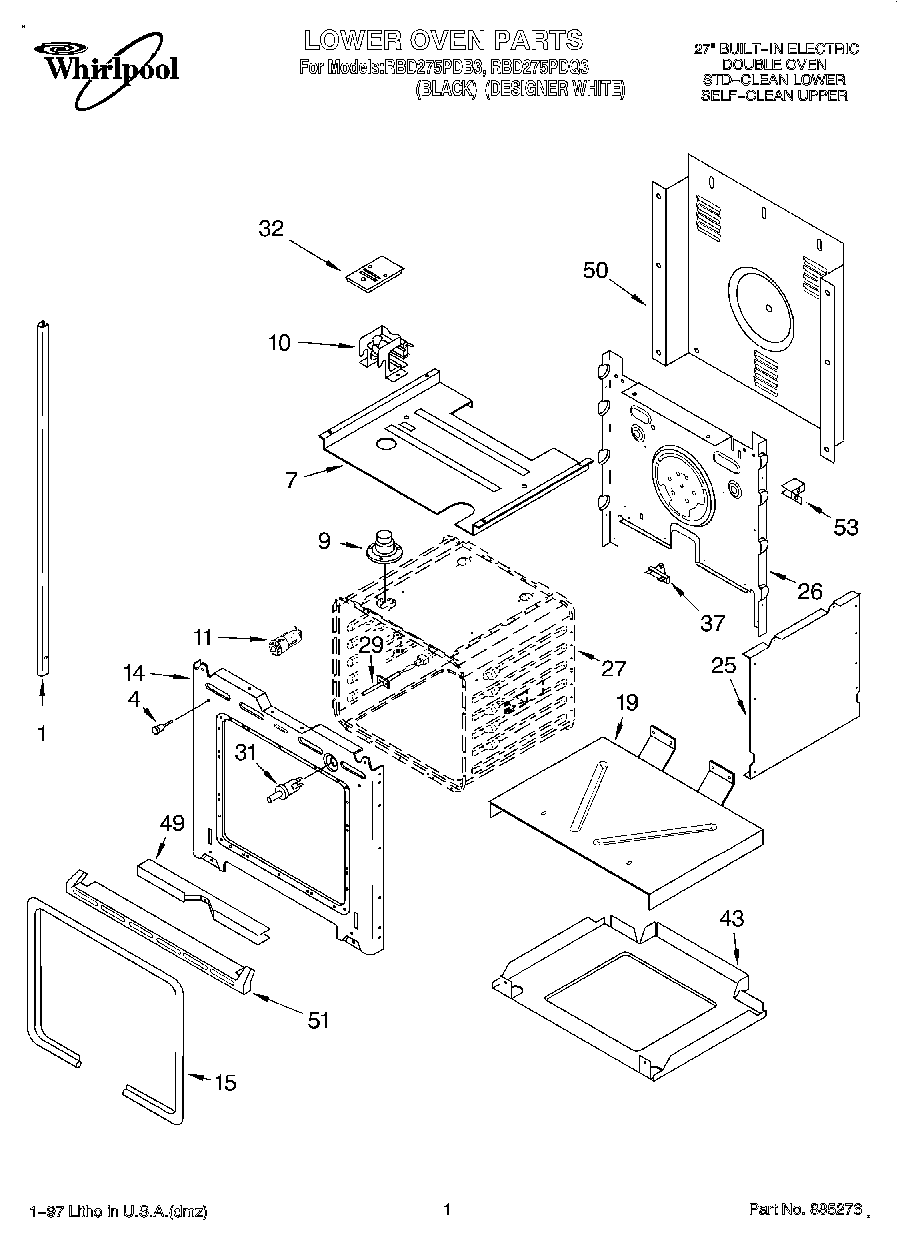

RBD275PDB3 01 – LOWER OVENadmin2025-04-26T11:25:52+00:00RBD275PDB3 01 – LOWER OVEN
Products
| Position | Product |
|---|
| 1 | WP8281236 Whirlpool Screw |
| 1 | Trim, Side (White) |
| 1 | Trim, Side (RH Black) |
| 1 | Trim, Side (Right Hand) (White Model) |
| 1 | Trim, Side (LH Black) |
| 1 | Trim, Side (Left Hand)) (White Model) |
| 4 | 4448520 Whirlpool Oven Bumper |
| 7 | Partition |
| 9 | Tube, Vent |
| 10 | Fan & Bracket Assy |
| 11 | WPW10734065 Whirlpool Light |
| 14 | Screw |
| 14 | Frame, Front |
| 15 | Gasket, Door |
| 19 | Support, Insulation |
| 25 | Side, Chassis (R.H. & L.H.) |
| 26 | Back, Chassis |
| 27 | Liner, Oven (Not a Serviceable Part) |
| 29 | Sensor |
| 31 | Switch, Door |
| 32 | Vent Box Assy |
| 37 | WP4451354 Whirlpool Thermal Fuse Assembly |
| 43 | Base, Chassis |
| 49 | WP4448933 Whirlpool Retainer |
| 49 | WP4449154 Whirlpool Screw |
| 50 | Cover, Back |
| 51 | WPL 4448476 |
| 51 | Trim, Bottom (Screw) |
| 51 | Tri |
| 53 | WPL 4449845 |
| 53 | WPL 4450364 |
| 53 | WPL 4449315 |
| 53 | WP4449809 Whirlpool Screw |
