RBD275PDB3 03 – LOWER OVEN DOOR

RBD275PDB3 03 – LOWER OVEN DOOR

Written by

in

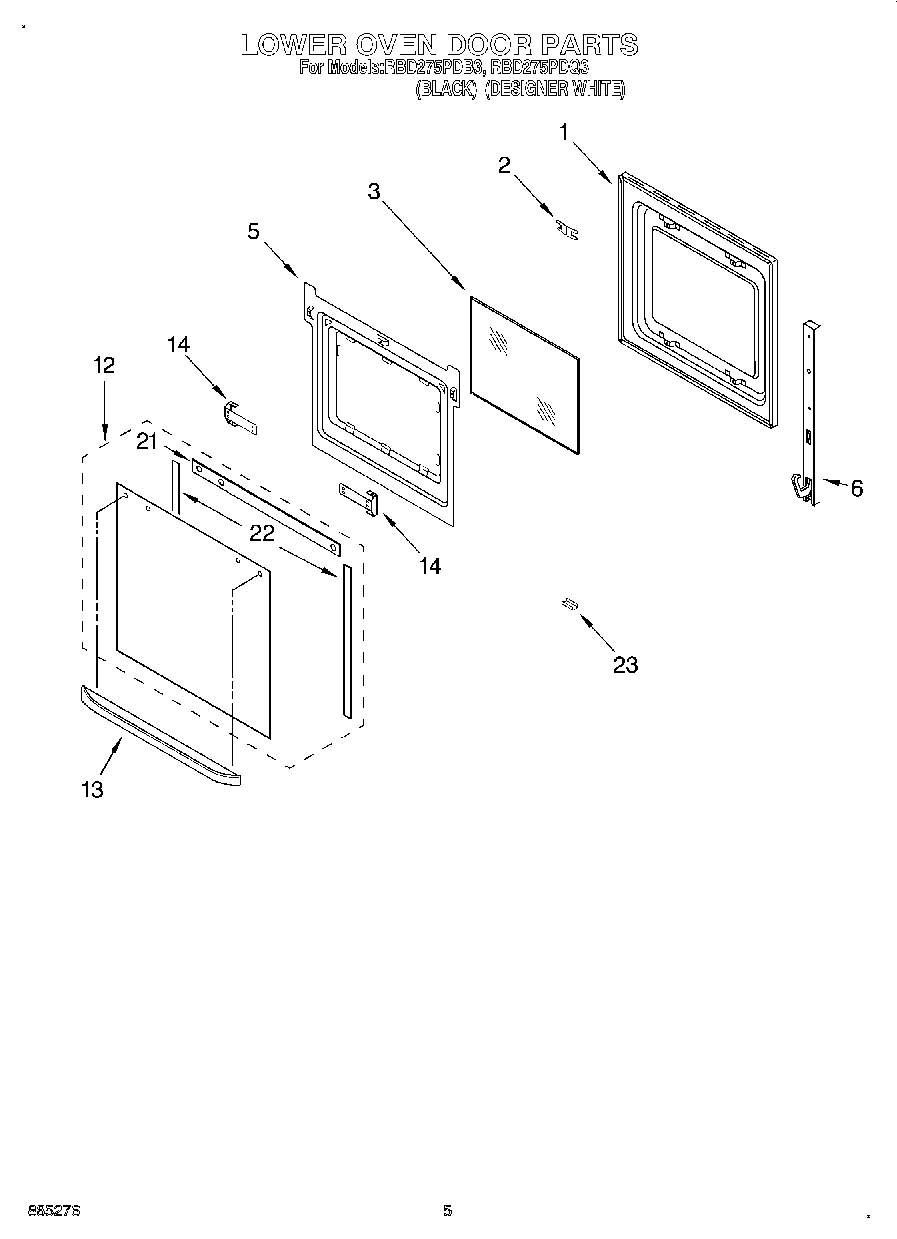

RBD275PDB3 03 – LOWER OVEN DOOR

Products

PositionProduct
1Door Liner
24450935 Whirlpool Oven Door Plug
3WP4449253 Whirlpool Glass Window
5WP4449809 Whirlpool Screw
5Retainer, Glass
6WP4449743 Whirlpool Screw
6Hinge, Door
12Door Glass, Outer (White Model)
12Door Glass, Outer (Black Model)
13Handle, Door (White Model)
13Handle, Door (Black Model)
14Screw
14Bracket, Handle
21Seal, Top
22Seal, Sides
23Clip, Retainer (Black Model)
23Clip, Retainer (White Model)
