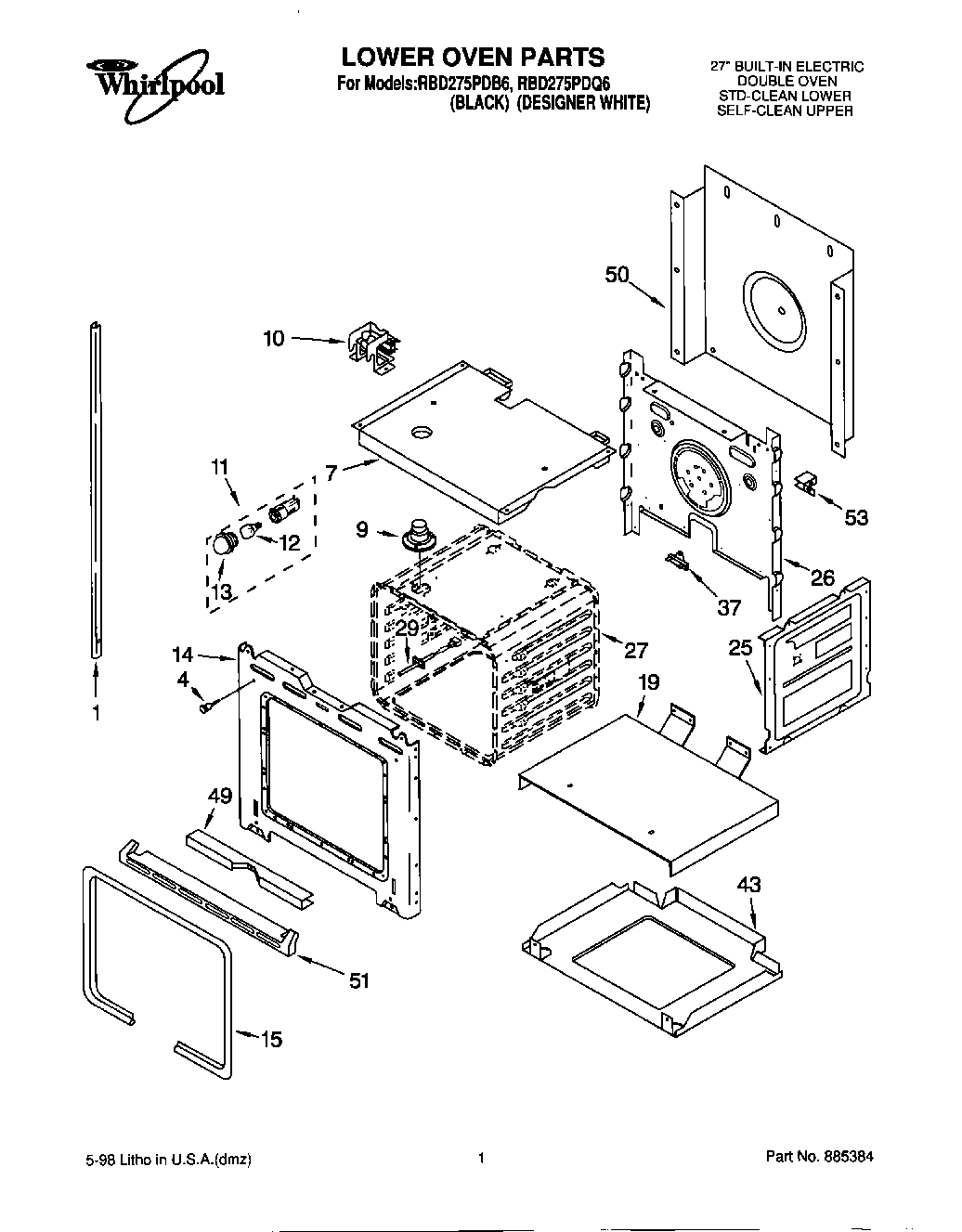

RBD275PDB6 01 – LOWER OVEN

RBD275PDB6 01 – LOWER OVEN

Written by

in

RBD275PDB6 01 – LOWER OVEN

Products

PositionProduct
1Trim, Side (Left Hand)) (White Model)
1Trim, Side (LH Black)
1Trim, Side (Right Hand) (White Model)
1Trim, Side (RH Black)
1WP8281236 Whirlpool Screw
1Trim, Side (White)
44448520 Whirlpool Oven Bumper
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Fan & Bracket Assy
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Lens, Light
14WP4450118 Whirlpool Nut
14Screw
14Frame, Front
15Gasket, Door
19Support, Insulation
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
37WP4451354 Whirlpool Thermal Fuse Assembly
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51Screw, (2)
51WPL 4448476
51Tri
53WPL 4449845
53WPL 4450364
53WPL 4449315
53WP4449809 Whirlpool Screw
