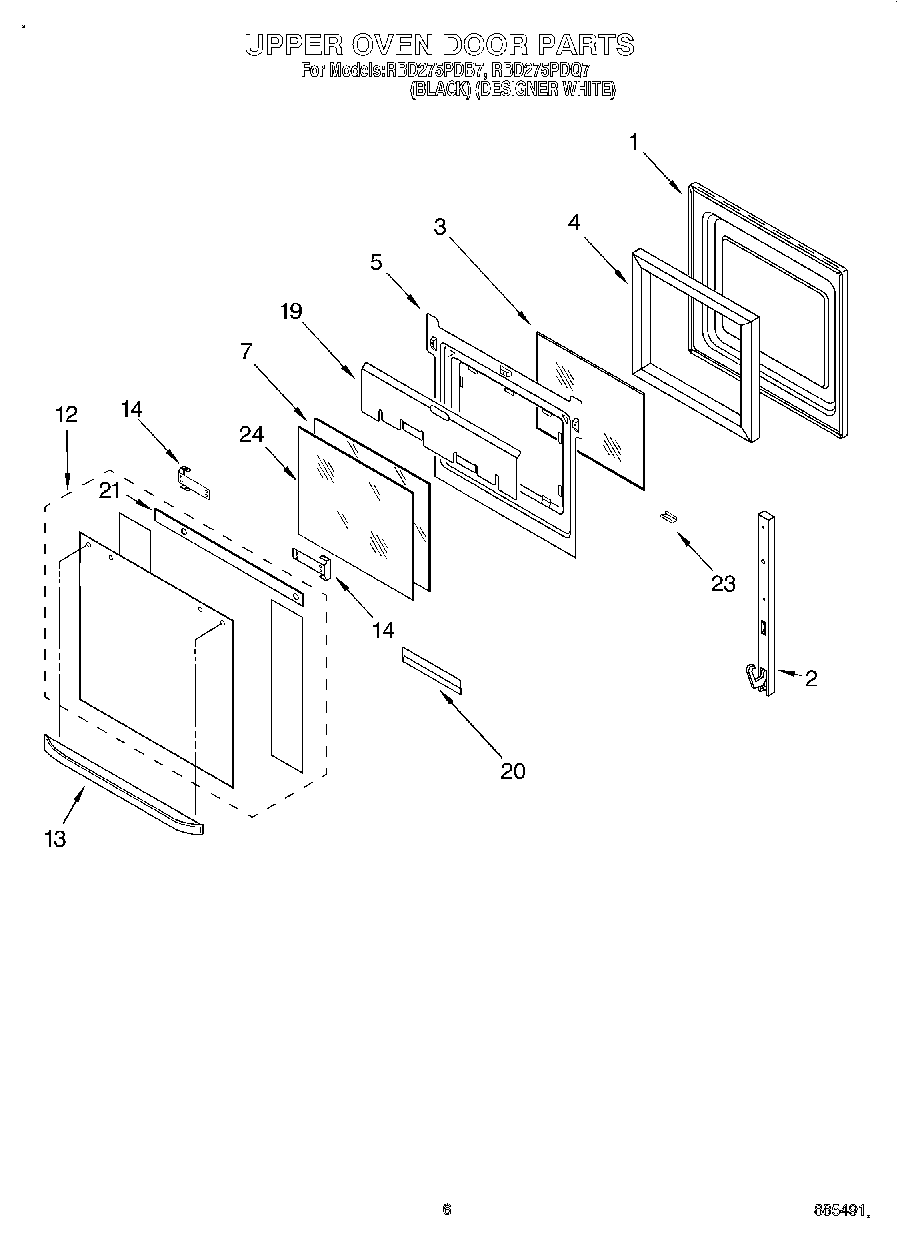

RBD275PDB7 04 – UPPER OVEN DOOR

RBD275PDB7 04 – UPPER OVEN DOOR

Written by

in

RBD275PDB7 04 – UPPER OVEN DOOR

Products

Position	Product
1	Door Liner
2	Hinge, Door
2	WP4449743 Whirlpool Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
12	Door Glass, Assy (White Model)
12	Door Glass Assy (Black Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Bracket, Handle
14	Screw
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	Glass, Inner
