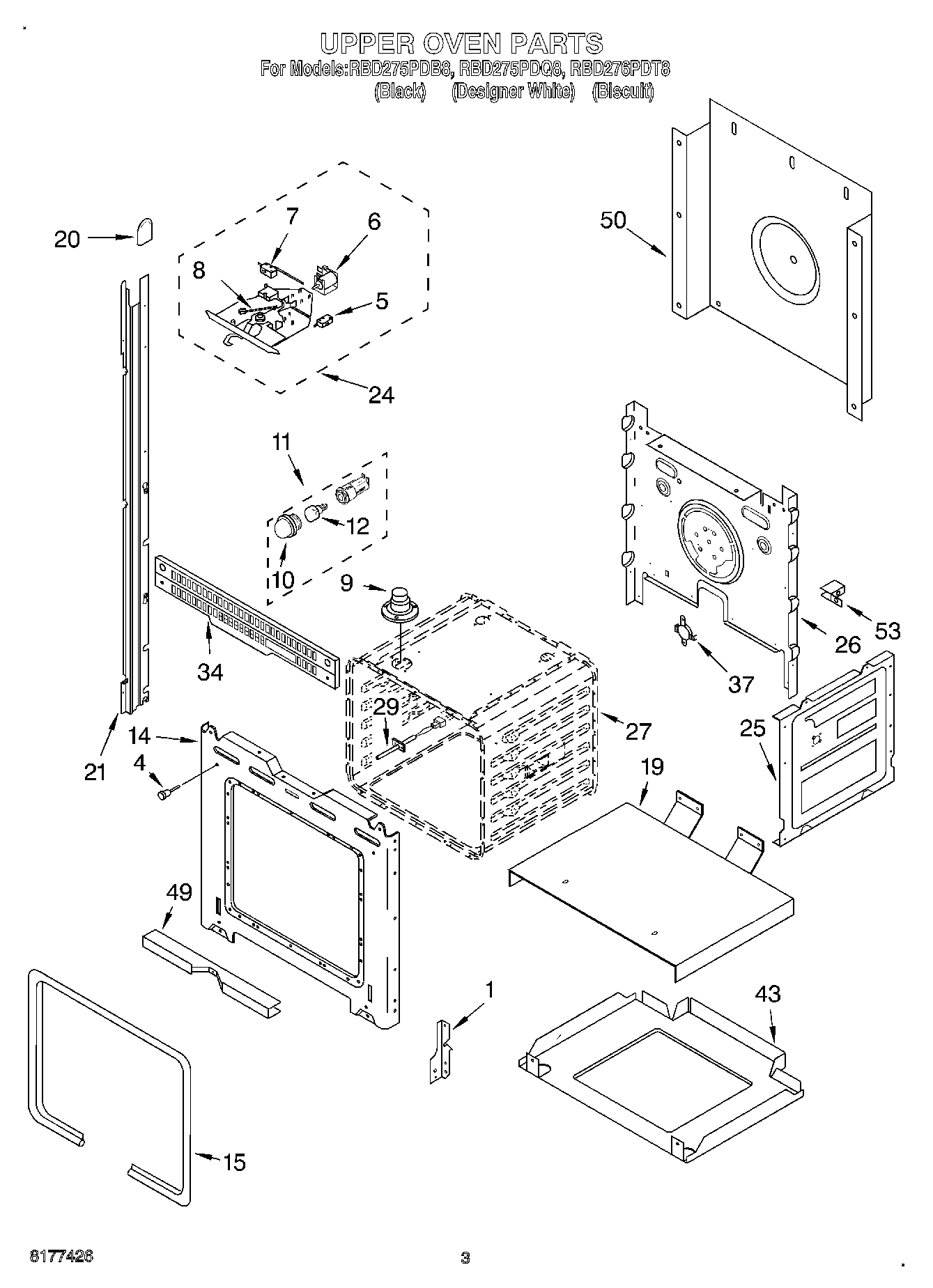

RBD275PDB8 02 – UPPER OVENadmin2025-04-26T11:25:52+00:00RBD275PDB8 02 – UPPER OVEN
Products
| Position | Product |
|---|
| 1 | Reciever, Hinge (Left Hand) |
| 1 | Reciever, Hinge (Right Hand) |
| 4 | 4448520 Whirlpool Oven Bumper |
| 5 | Microswitch N.C. |
| 6 | Solenoid |
| 7 | Microswitch |
| 8 | Spring, Latch |
| 9 | W10861715 Whirlpool Vent Tube |
| 10 | Lens, Light |
| 10 | SCREW |
| 11 | WPW10734065 Whirlpool Light |
| 12 | WP4173175 Whirlpool Light Bulb |
| 14 | Screw |
| 14 | Frame, Front |
| 15 | WP4455381 Whirlpool Door Gasket |
| 19 | Support, Insulation |
| 20 | Cap, Spacer |
| 21 | 814374 Whirlpool Oven Rail Mount |
| 21 | 814373 Whirlpool Oven Rail Mount |
| 21 | WP4448444 Whirlpool Grommet |
| 24 | Latch Assembly |
| 25 | Side, Chassis (R.H. & L.H.) |
| 26 | Back, Chassis |
| 27 | Liner, Oven (Not a Serviceable Part) |
| 29 | Sensor |
| 34 | Vent, Center |
| 37 | WP9759243 Whirlpool Thermostat |
| 43 | Base, Chassis |
| 49 | WP4448933 Whirlpool Retainer |
| 49 | WP4449154 Whirlpool Screw |
| 50 | WP4451747 Whirlpool Rear Cover |
| 53 | WPL 4449845 |
| 53 | WPL 4450364 |
| 53 | WP4449809 Whirlpool Screw |
| 53 | WPL 4449315 |
