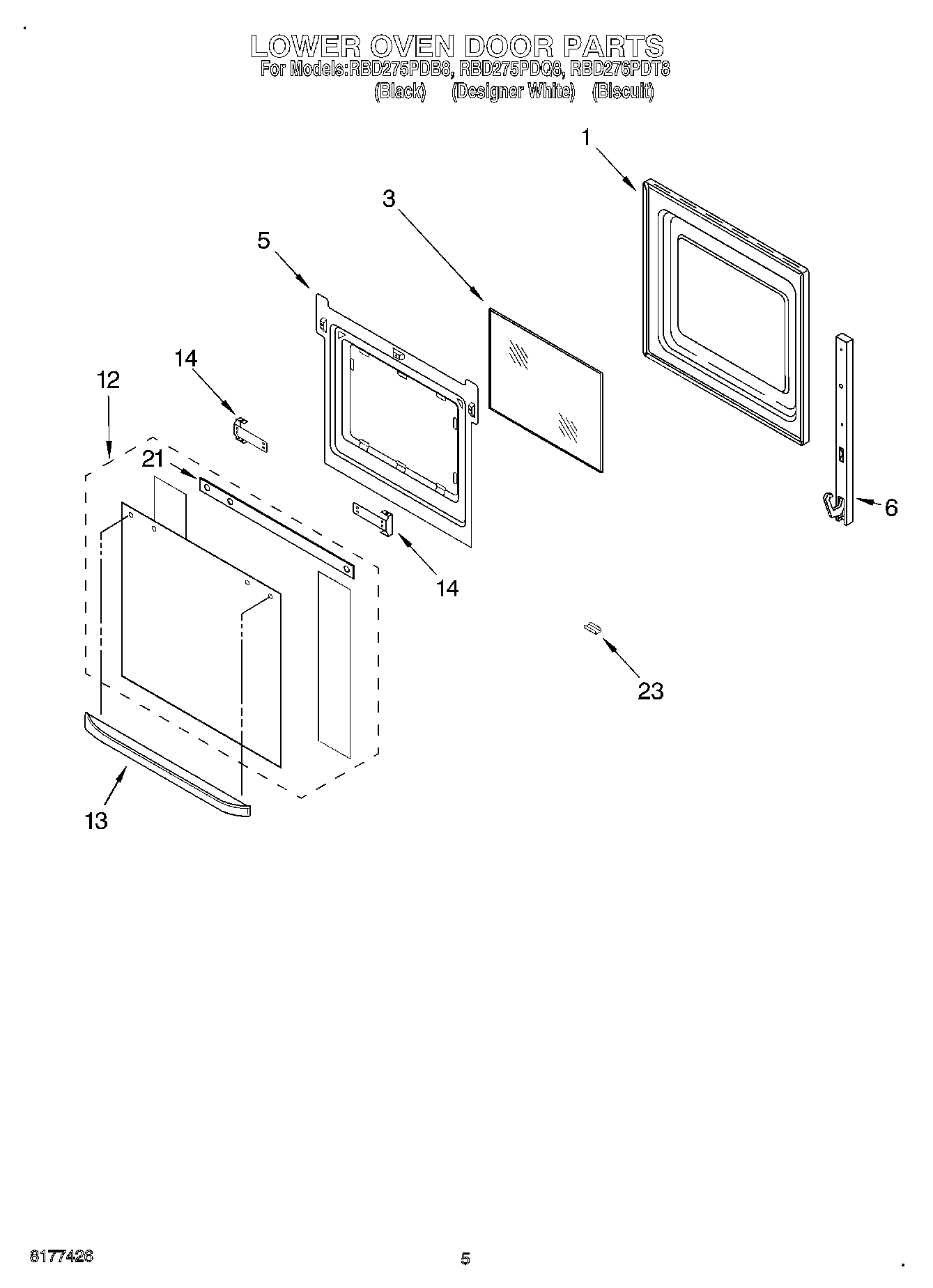

RBD275PDB8 03 – LOWER OVEN DOOR

RBD275PDB8 03 – LOWER OVEN DOOR

Written by

in

RBD275PDB8 03 – LOWER OVEN DOOR

Products

PositionProduct
1Door Liner
3WP4449253 Whirlpool Glass Window
5WP4449809 Whirlpool Screw
5Retainer, Glass
6Hinge, Door
6WP4449743 Whirlpool Screw
12Door Glass, Assy (White Model)
12Door Glass Assy (Black Model)
13Handle, Door (Black Model)
13Door Glass Assy (Biscuit)
13Handle, Door (White Model)
14Door Handle (Biscuit Model)
14Bracket, Handle
14Screw
21Seal, Top
23Clip, Retainer (White Model)
23Clip, Retainer (Black Model)
