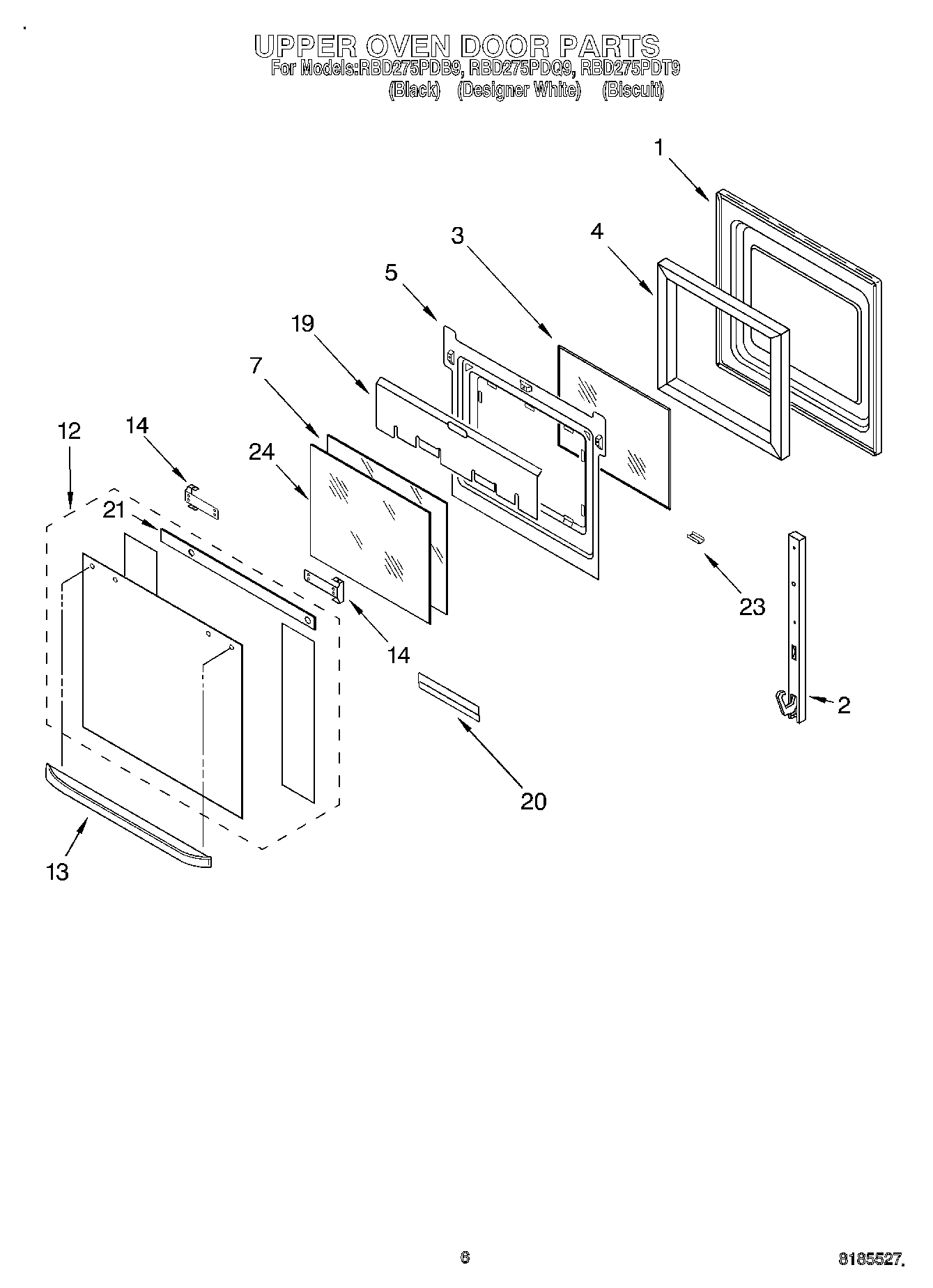

RBD275PDB9 04 – UPPER OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4449743 Whirlpool Screw
2	WP4455524 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
12	Door Glass, Assy (White Model)
12	Door Glass Assy (Biscuit)
12	Door Glass Assy (Black Model)
13	Door Handle (Biscuit Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Bracket, Handle
14	Screw
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	Glass, Inner
