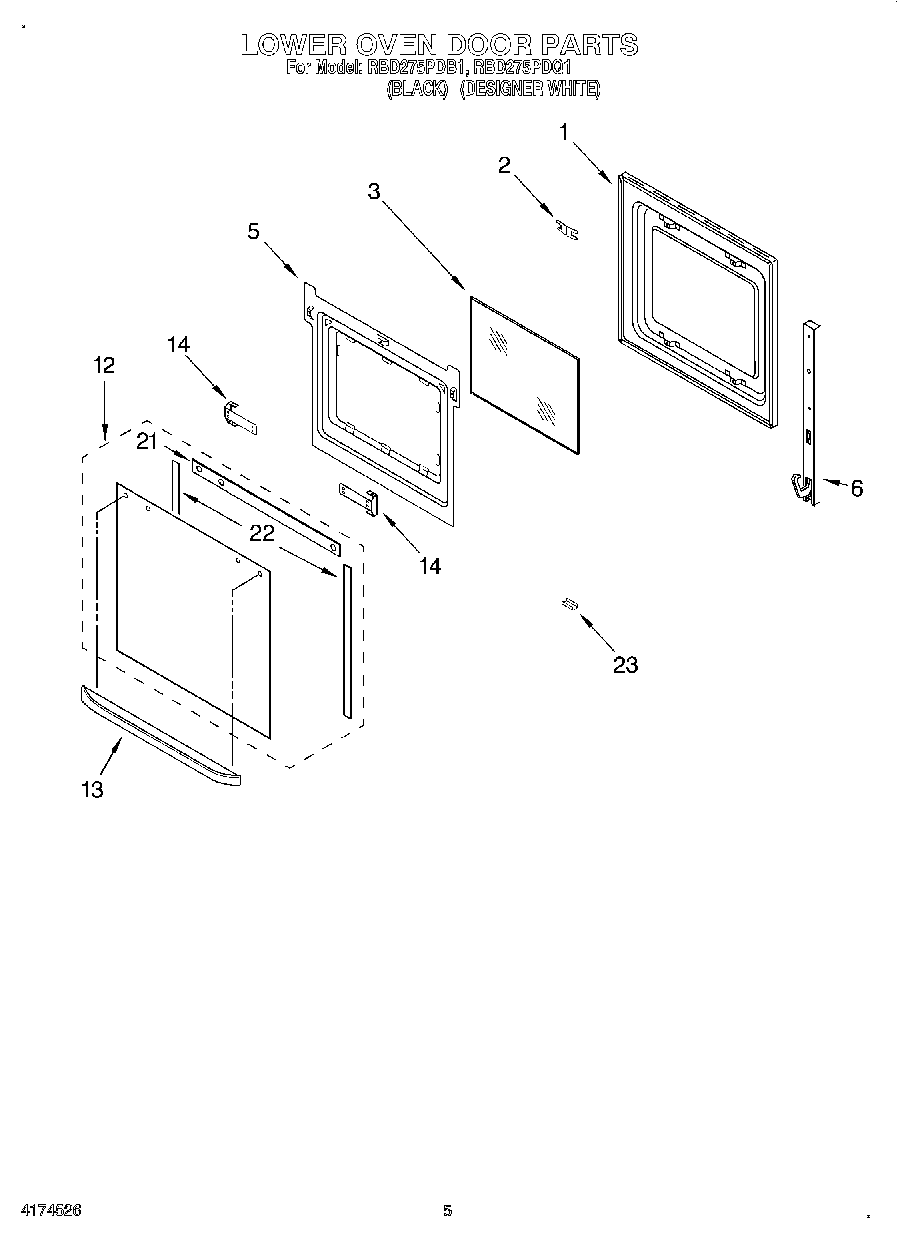

RBD275PDQ1 03 – LOWER OVEN DOOR

Products

Position	Product
1	Door Liner
2	4450935 Whirlpool Oven Door Plug
3	WP4449253 Whirlpool Glass Window
5	WP4449809 Whirlpool Screw
5	Retainer, Glass
6	WP4449743 Whirlpool Screw
6	Hinge, Door
12	Door Glass, Outer (White Model)
12	Door Glass, Outer (Black Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Screw
14	Bracket, Handle
21	Seal, Top
22	Seal, Sides
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
