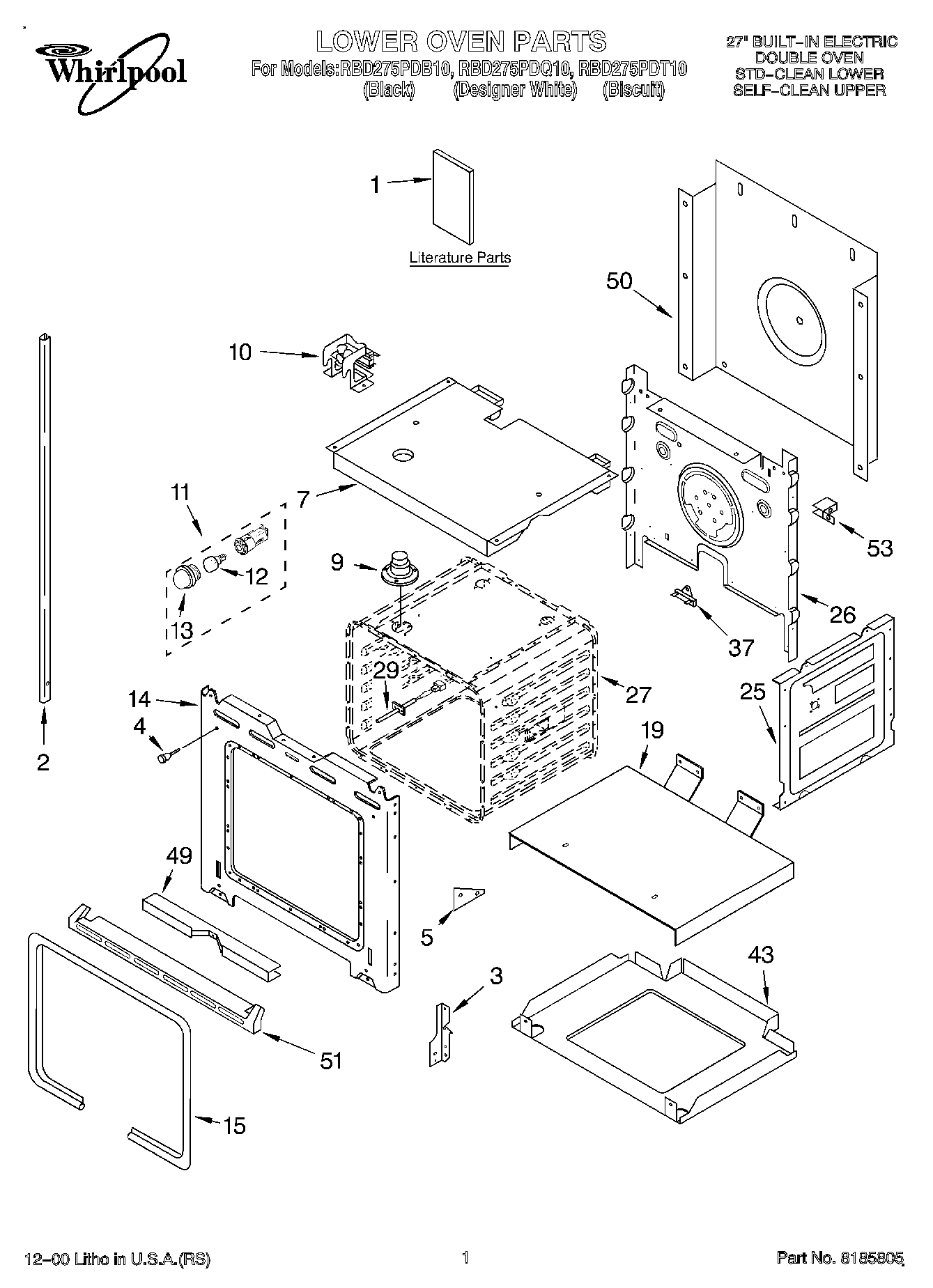

RBD275PDQ10 01 – LOWER OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Tech Sheet)
2Trim, Side (Right Hand) (White Model)
2Trim, Side (LH Black)
2Trim, Side (Left Hand)) (White Model)
2Trim, Side (RH Black)
2Trim, Side (RH Biscuit)
2Trim, Side (White)
2WP8281236 Whirlpool Screw
2Trim, Side (LH Biscuit)
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
7Top, Chassis
9W10861715 Whirlpool Vent Tube
9SCREW
10Fan & Bracket Assy
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Lens, Light
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15Gasket, Door
19Support, Insulation
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29WPW10131825 Whirlpool Oven Temperature Sensor
37WP4451354 Whirlpool Thermal Fuse Assembly
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51Tri
51Screw, (2)
51WPL 4448476
51WPL 4452414
53WPL 4450364
53WP4449809 Whirlpool Screw
53WPL 4449845
53WPL 4449315
