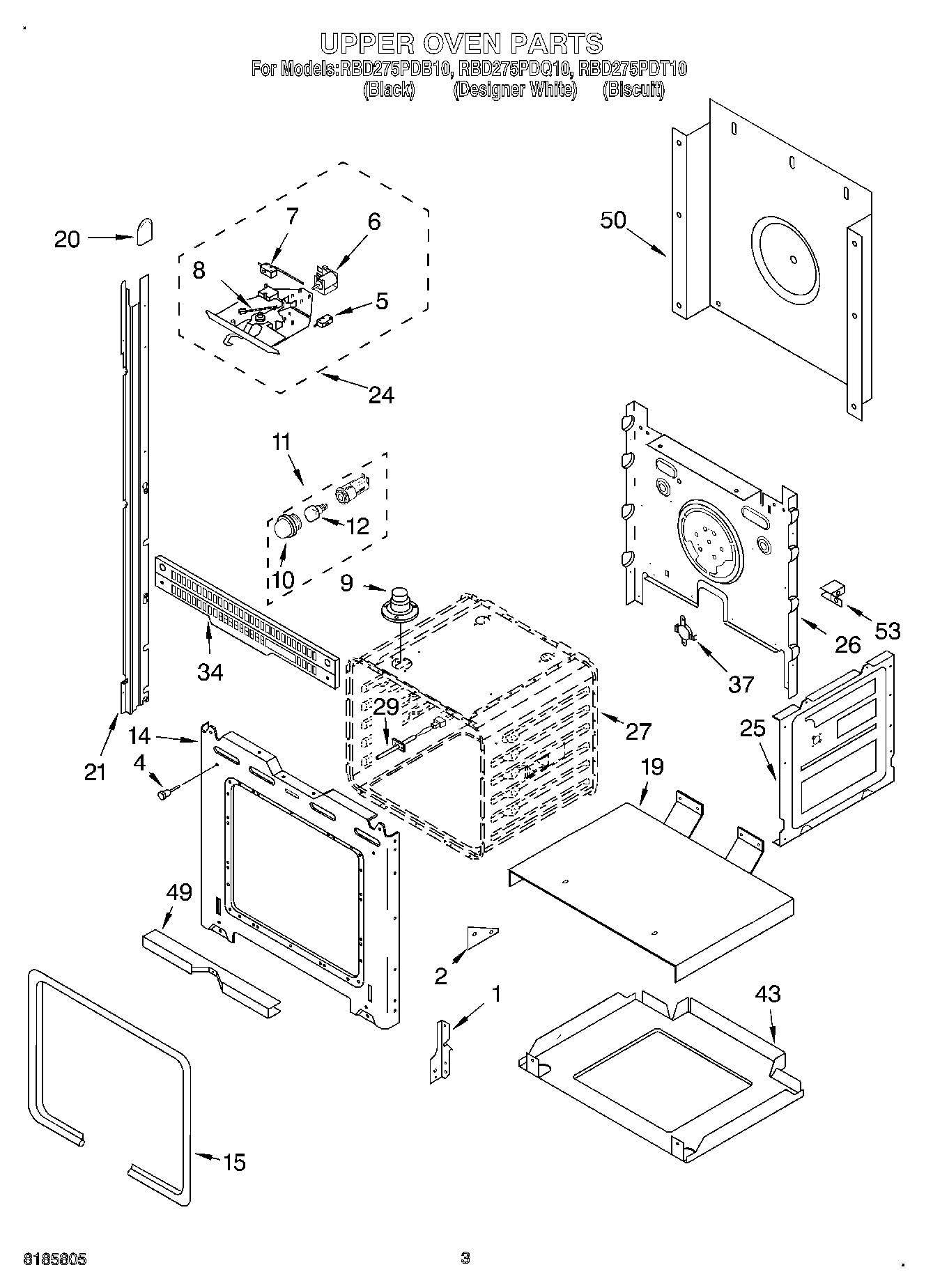

RBD275PDQ10 02 – UPPER OVEN

Products

Position	Product
1	Reciever, Hinge (Right Hand)
1	Reciever, Hinge (Left Hand)
2	WP4455509 Whirlpool Support Bracket
4	4448520 Whirlpool Oven Bumper
5	Microswitch N.C.
6	Solenoid
7	Microswitch
8	Spring, Latch
9	W10861715 Whirlpool Vent Tube
10	SCREW
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	Frame, Front
14	Screw
15	WP4455381 Whirlpool Door Gasket
19	Support, Insulation
20	Cap, Spacer
21	WP4448444 Whirlpool Grommet
21	814373 Whirlpool Oven Rail Mount
21	814374 Whirlpool Oven Rail Mount
24	Latch Assembly
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	WPW10131825 Whirlpool Oven Temperature Sensor
34	Vent, Center
37	WP9759243 Whirlpool Thermostat
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
53	WPL 4449315
53	WP4449809 Whirlpool Screw
53	WPL 4449845
53	WPL 4450364
