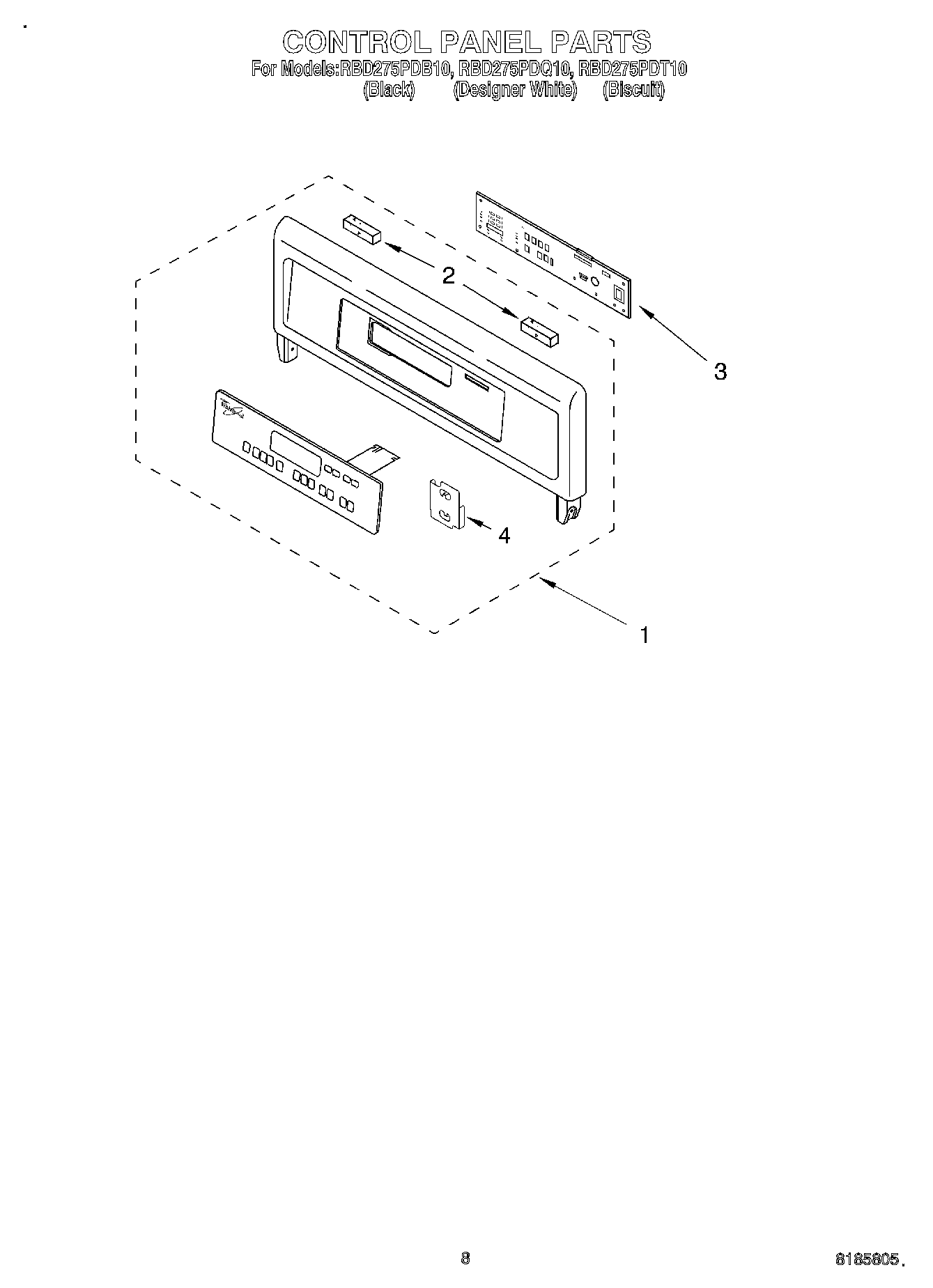

RBD275PDQ10 06 – CONTROL PANEL

RBD275PDQ10 06 – CONTROL PANEL

Written by

in

RBD275PDQ10 06 – CONTROL PANEL

Products

PositionProduct
1Control Panel Assy. W/Membrane Switch (Black Model)
1Control Panel Assy. W/Membrane Switch (White Model)
1Control Panel Assy. W/Membrane Switch (Biscuit Model)
2Gasket, Control Panel
3WP3400832 Whirlpool Screw
3WP4449745 Whirlpool Screw
3Microcomputer
4Insulator, Switch Membrane
