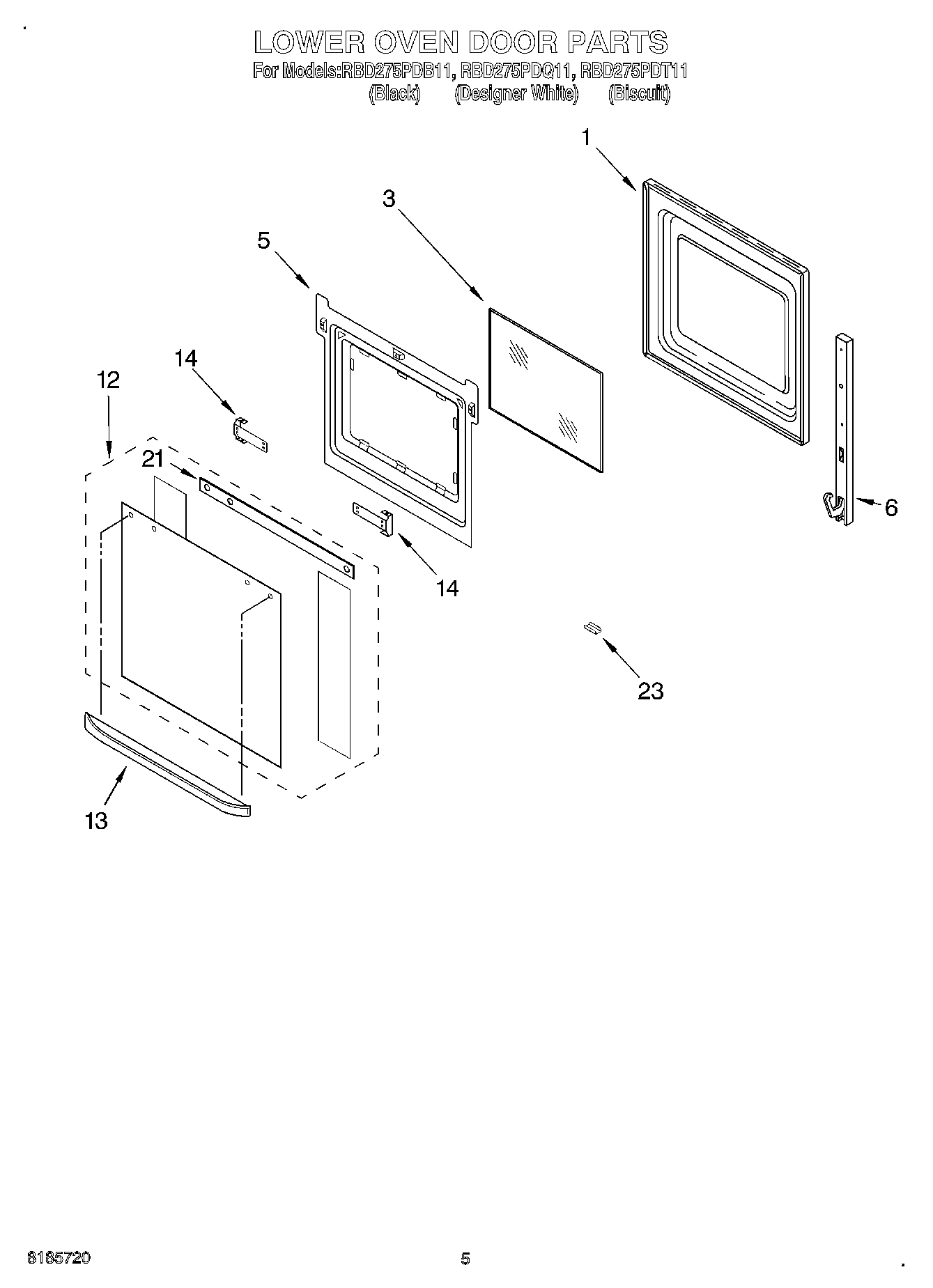

RBD275PDQ11 03 – LOWER OVEN DOOR

RBD275PDQ11 03 – LOWER OVEN DOOR

Written by

in

RBD275PDQ11 03 – LOWER OVEN DOOR

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
5	WP4449809 Whirlpool Screw
5	Retainer, Glass
6	Hinge, Door
6	WP4449743 Whirlpool Screw
12	Door Glass Assy (Black Model)
12	Door Glass Assy (Biscuit)
12	Door Glass, Assy (White Model)
13	Door Handle (Biscuit Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Bracket, Handle
14	Screw
21	Seal, Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
