RBD275PDQ12 03 – LOWER OVEN DOOR – Aparts

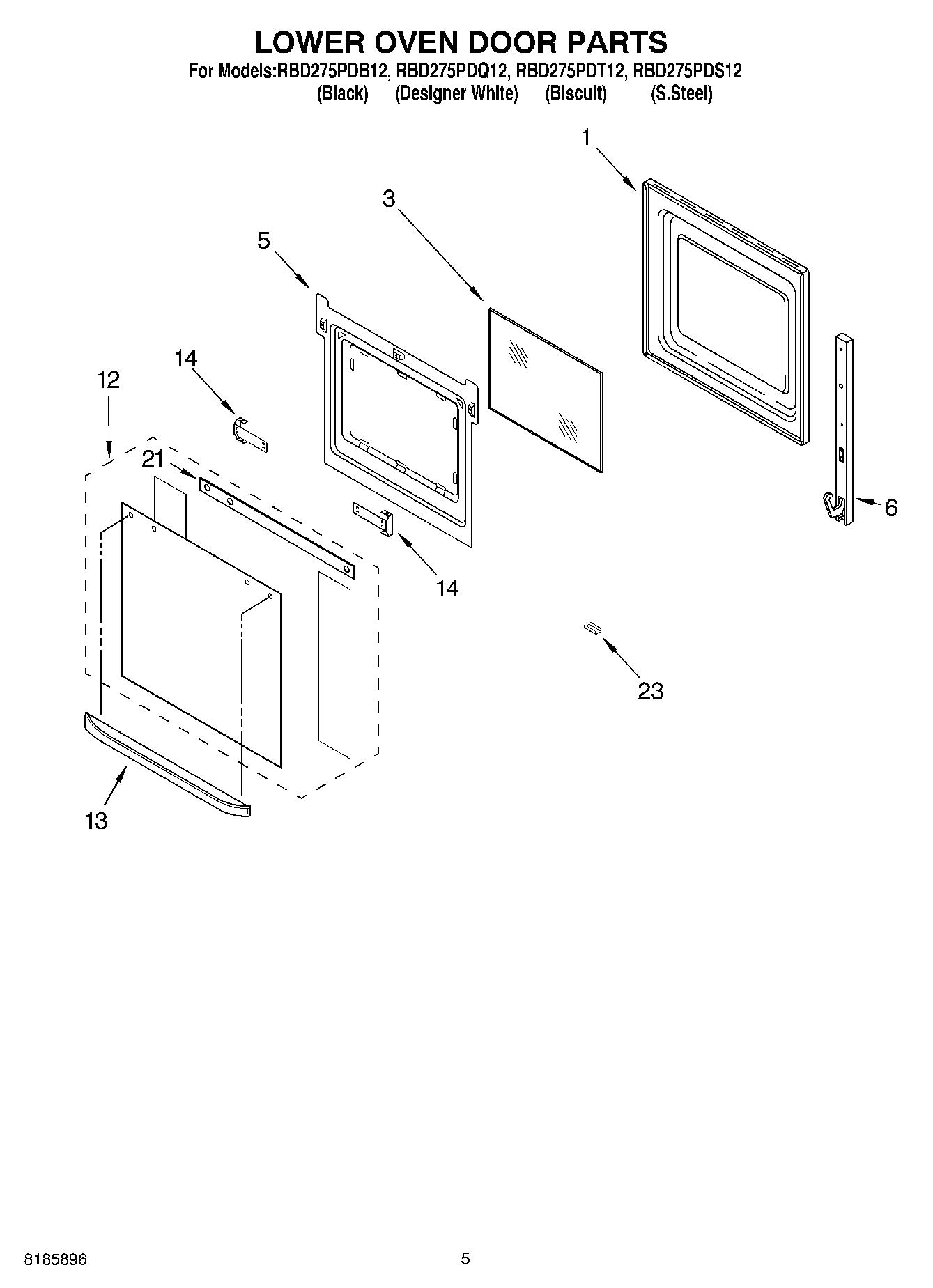

RBD275PDQ12 03 – LOWER OVEN DOOR

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
5	WP4449809 Whirlpool Screw
5	Retainer, Glass
6	WP9760563 Whirlpool Door Hinge
6	Hinge, Door (Left Side)
6	Hinge, Door (R.Side (L.Brown))
6	Hinge, Door (L.Side (L.Brown))
6	WP4449743 Whirlpool Screw
12	Door Glass Assy (Biscuit)
12	Door Glass, Assy (White Model)
12	Door Glass Assy (Black Model)
12	Door Glass, Assy (S.Steel Model)
13	Handle, Door (Black Model)
13	Door Handle (Biscuit Model)
13	Handle, Door (White Model)
14	Screw
14	Bracket, Handle
21	Seal, Door Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
