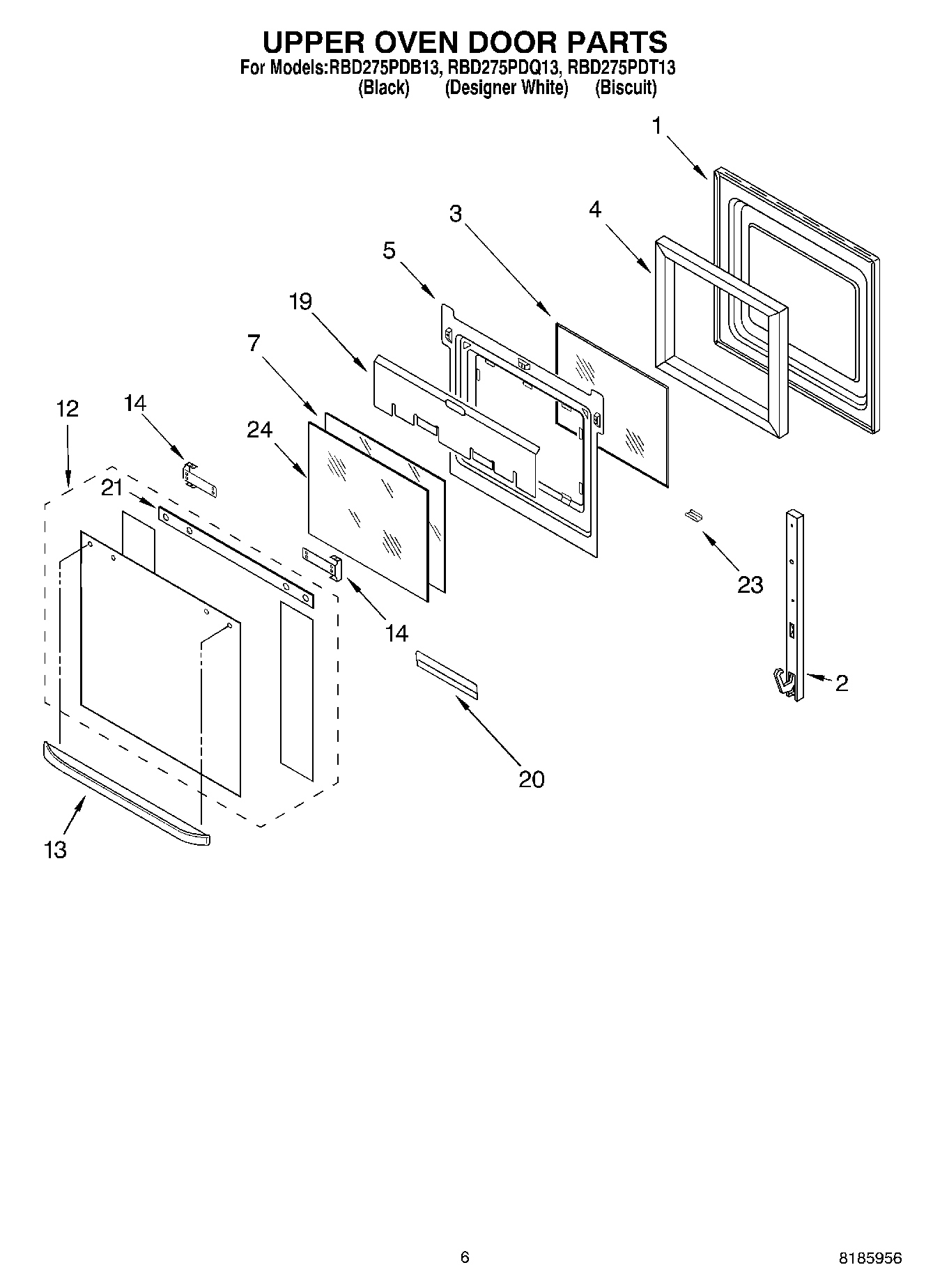

RBD275PDQ13 04 – UPPER OVEN DOOR

Products

PositionProduct
1Door Liner
29760570 Whirlpool Door Hinge
2WP4449743 Whirlpool Screw
29760569 Whirlpool Door Hinge
3WP4449253 Whirlpool Glass Window
4Insulation, Sides
5Retainer, Glass
7WP4449257 Whirlpool Door Glass
12Door Glass Assy (Black Model)
12Door Glass, Assy (White Model)
12Door Glass Assy (Biscuit)
13Handle, Door (White Model)
13Handle, Door (Black Model)
13Door Handle (Biscuit Model)
14Screw
14Bracket, Handle
19Shield, Heat
20WP4449809 Whirlpool Screw
20Retainer, Glass
21Seal, Door Top
23Clip, Retainer (White Model)
23Clip, Retainer (Black Model)
23RETAINER,GLASS CLIP (BISCUIT)
24Glass, Inner
