RBD275PDQ15 03 – LOWER OVEN DOOR PARTS – Aparts

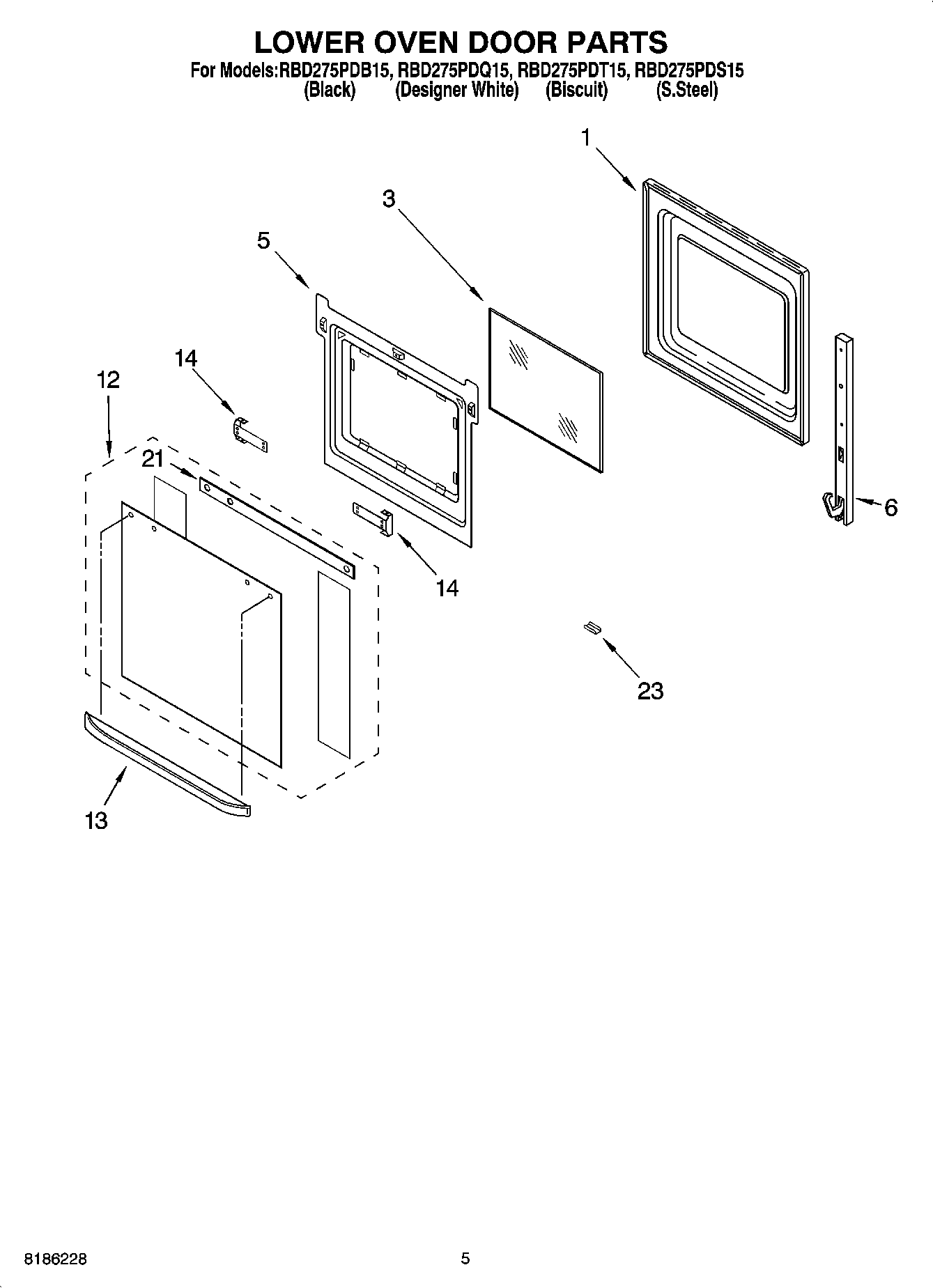

RBD275PDQ15 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
5	WP4449809 Whirlpool Screw
5	Retainer, Glass
6	WP4449743 Whirlpool Screw
6	Hinge, Door (R.Side (L.Brown))
6	Hinge, Door (Left)
6	WP9760563 Whirlpool Door Hinge
6	9760570 Whirlpool Door Hinge
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (Black Model)
12	Door Glass Assy (Biscuit)
12	Door Glass, Assy (S.Steel Model)
13	Handle, Door (Black Model)
13	Handle, Door (White Model)
13	Door Handle (Biscuit Model)
14	Bracket, Handle
14	Screw
21	Seal, Door Top
23	Clip, Retainer (Black Model)
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
