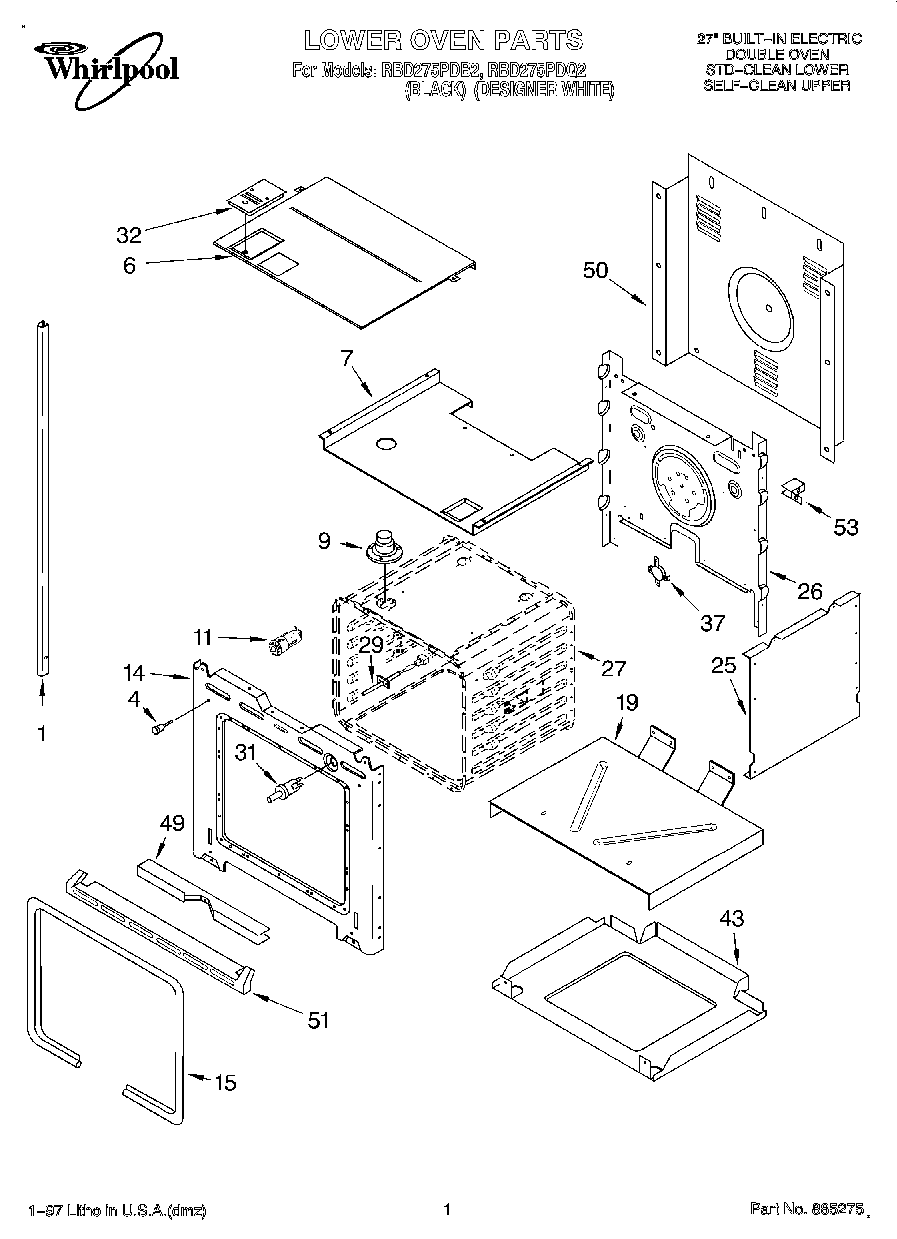

RBD275PDQ2 01 – LOWER OVEN

Products

PositionProduct
1WP8281236 Whirlpool Screw
1Trim, Side (White)
1Trim, Side (RH Black)
1Trim, Side (Right Hand) (White Model)
1Trim, Side (LH Black)
1Trim, Side (Left Hand)) (White Model)
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Partition
9Tube, Vent
11WPW10734065 Whirlpool Light
14Screw
14Frame, Front
15Gasket, Door
19Support, Insulation
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
31Switch, Door
32Vent Box Assy
37WP4450249 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50Cover, Back
51WPL 4448476
51Tri
51Trim, Bottom (Screw)
53WPL 4449845
53WPL 4450364
53WPL 4449315
53WP4449809 Whirlpool Screw
