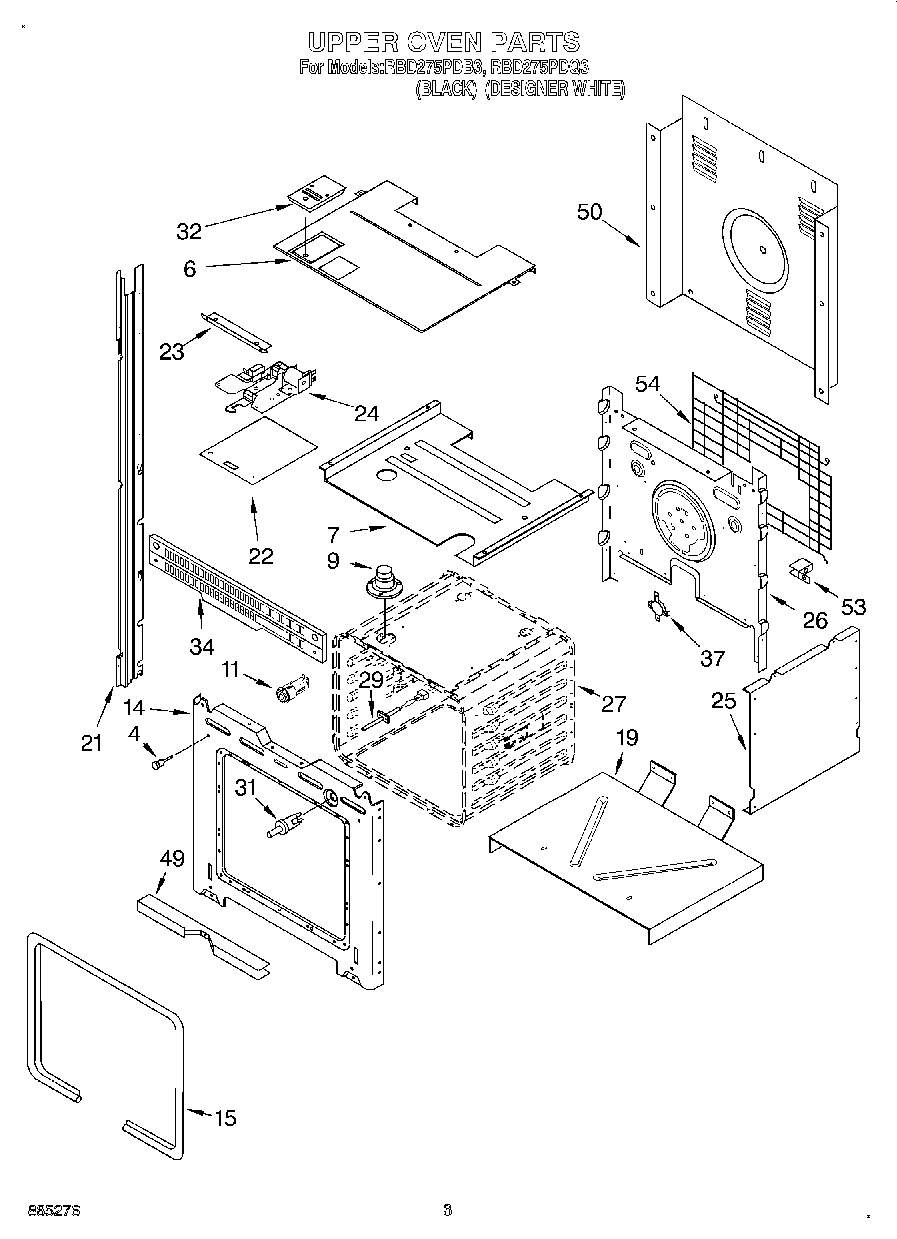

RBD275PDQ3 02 – UPPER OVEN

RBD275PDQ3 02 – UPPER OVEN

Written by

in

RBD275PDQ3 02 – UPPER OVEN

Products

PositionProduct
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Partition
9Tube, Vent
11WPW10734065 Whirlpool Light
14Frame, Front
14Screw
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
21814374 Whirlpool Oven Rail Mount
21814373 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
22Trim, Bottom (Screw)
22Shield, Latch
23Deflector, Latch
24Latch Assy
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
31Switch, Door
32Vent Box Assy
34Vent, Center
37WP4450934 Whirlpool Thermostat Assembly
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50Cover, Back
53WPL 4449845
54Spacer, Harness
54WPL 4450364
54WPL 4449315
54WP4449809 Whirlpool Screw
