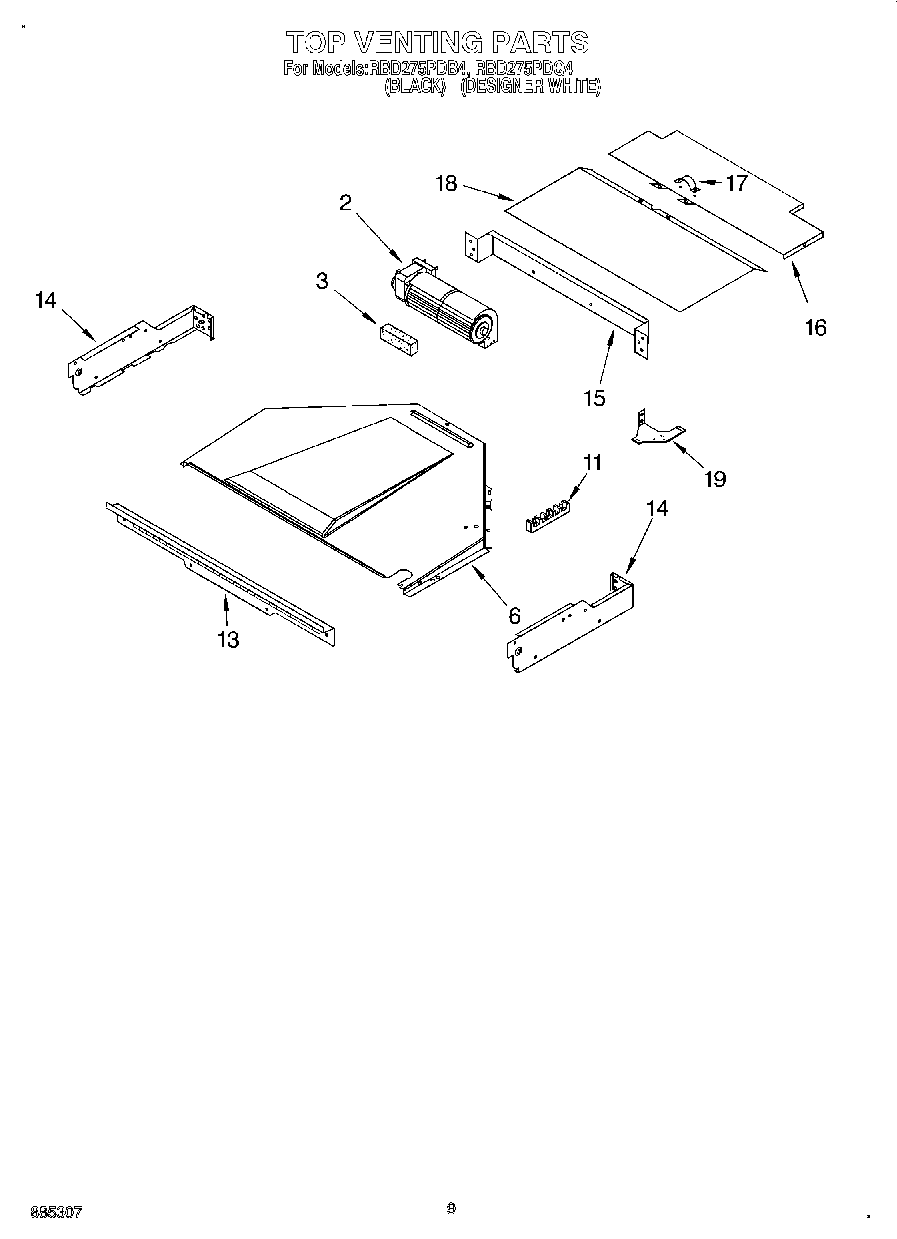

RBD275PDQ4 07 – TOP VENTING, OPTIONAL

RBD275PDQ4 07 – TOP VENTING, OPTIONAL

Written by

in

RBD275PDQ4 07 – TOP VENTING, OPTIONAL

Products

PositionProduct
2Blower
3Seal, Foam
6Exhaust Duct
11WP3387230 Whirlpool Screw
11WP8203546 Whirlpool Terminal Block
13Vent, (Control Panel)
13WP4450038 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
14WP4449154 Whirlpool Screw
15Back, Control
16Cover, Top Rear
18Cover, Top Front
19Bracket, Blower
19242831 Whirlpool Oven Wire
19WPL 591014
191
19Wire (14 Ga. 200 c Brown)
19Harness, Wire Main (Also, Order Door Switch Harness)
19Roll Tape, Exhaust Duct
19Harness, Wire (Door Switch) (Also, order Main Harness)
19Harness, Wire (Latch)
19261900 Whirlpool Microwave Spray
19WP4451042 Whirlpool Thermal Fuse
19Harness, STD (Door Switch)
19Harness, Wire (Lower Fan)
1918 Ga. 80~c Rating (Red)
19Wire (12 Ga. 150 c Black)
194450800 Whirlpool Oven Screw
194448664 Whirlpool Oven Mounting Bracket
19Wire, 25“ Roll (White 14 GA.)
19Wire, 25` Roll (Red 14 Ga.)
19Wire, 25` Roll (Black 14 Ga.)
19WP112432 Whirlpool Nut Assembly
19WP488366 Whirlpool Refrigerator Clamp
19WP4449809 Whirlpool Screw
1972017 Whirlpool Appliance Touch-Up Paint White
19285006 Whirlpool Spray
1972032 Whirlpool Touch Up Paint Black
19WP482338 Whirlpool Refrigerator Adhesive
19Wire (14 Ga. 150 c Yellow)
19Wire (14 Ga. 150 c Orange)
19Wire (14 Ga. 150 c Green)
19Wire (14 Ga. 150 c Brown)
19Wire (14 Ga. 150 c Blue)
19WP261869 Whirlpool Microwave Paint
19Conduit, Double
19WP4448950 Whirlpool Screw
19814381 Whirlpool Pin
19350930 Whirlpool White Spray Paint
