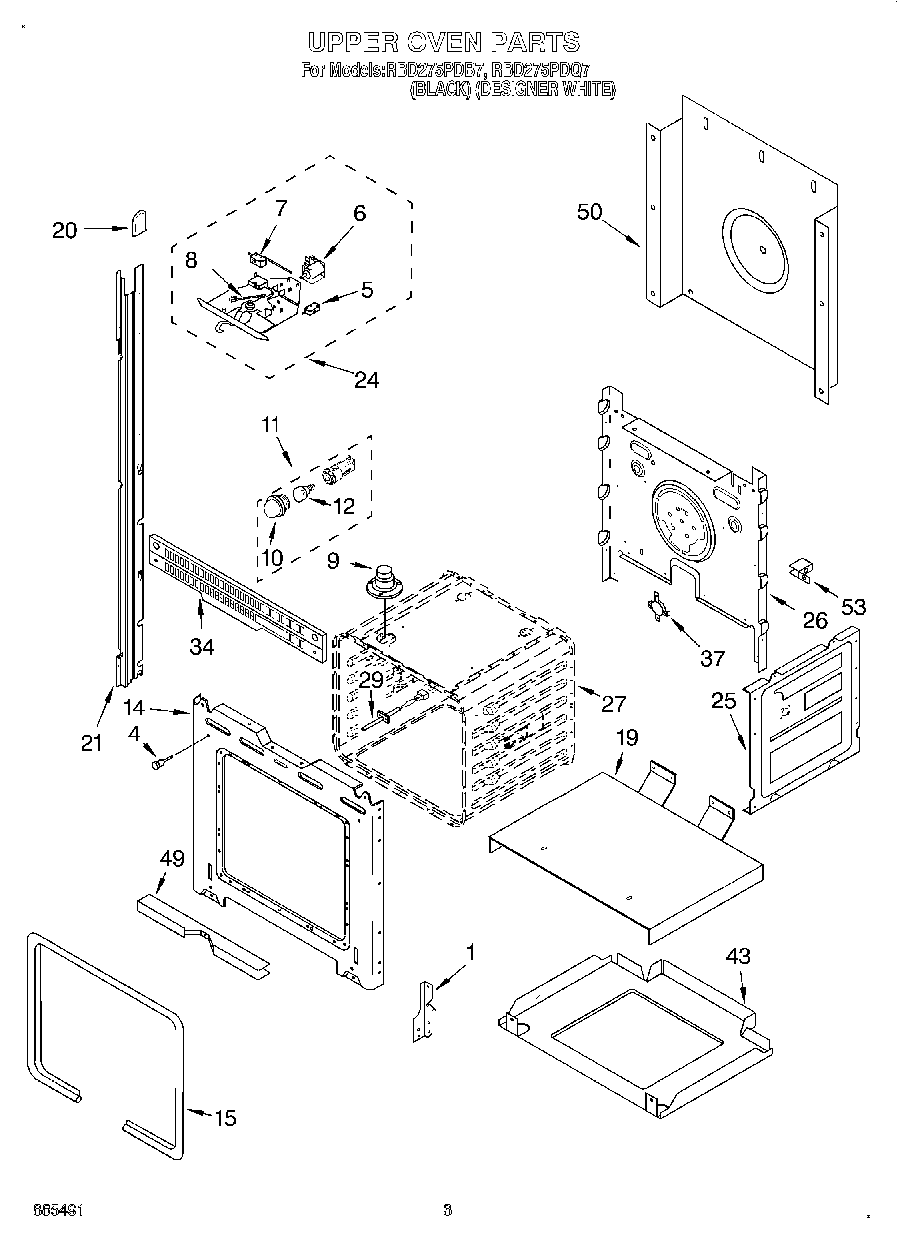

RBD275PDQ7 02 – UPPER OVEN

Products

PositionProduct
1Reciever, Hinge (Right Hand)
1Reciever, Hinge (Left Hand)
44448520 Whirlpool Oven Bumper
5Micro Switch N.C.
6Solenoid
7Microswitch
8Spring, Latch
9W10861715 Whirlpool Vent Tube
10SCREW
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14Frame, Front
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21814374 Whirlpool Oven Rail Mount
21814373 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
24Latch Assembly
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
34Vent, Center
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
53WP4449809 Whirlpool Screw
53WPL 4449845
53WPL 4450364
53WPL 4449315
