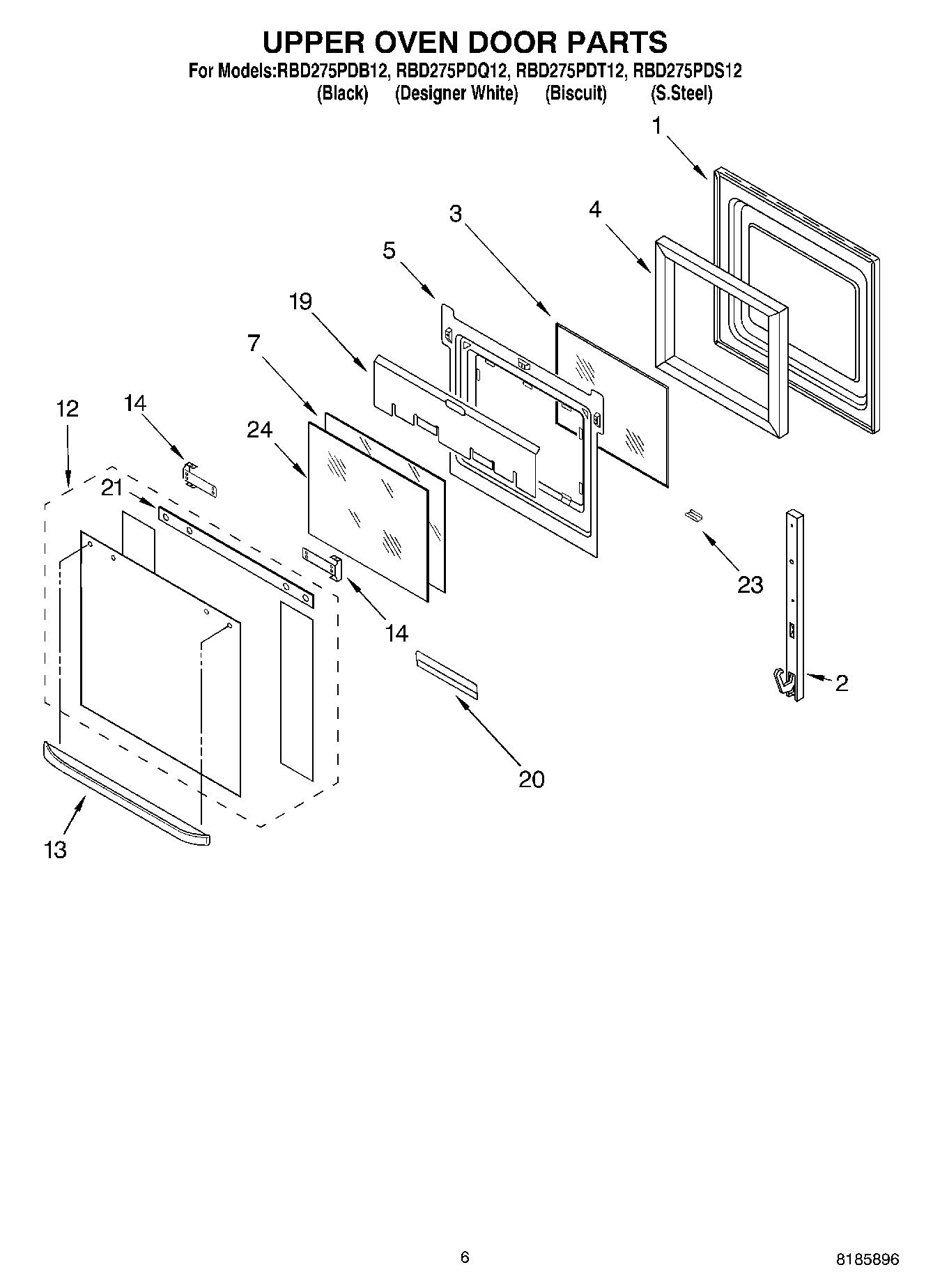

RBD275PDS12 04 – UPPER OVEN DOOR

RBD275PDS12 04 – UPPER OVEN DOOR

Written by

in

RBD275PDS12 04 – UPPER OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP9760571 Whirlpool Door Hinge
2	9760569 Whirlpool Door Hinge
2	9760570 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
12	Door Glass Assy (Biscuit)
12	Door Glass Assy (Black Model)
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (S.Steel Model)
13	Door Handle (Biscuit Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Screw
14	Bracket, Handle
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	RETAINER,GLASS CLIP (BISCUIT)
24	Glass, Inner
