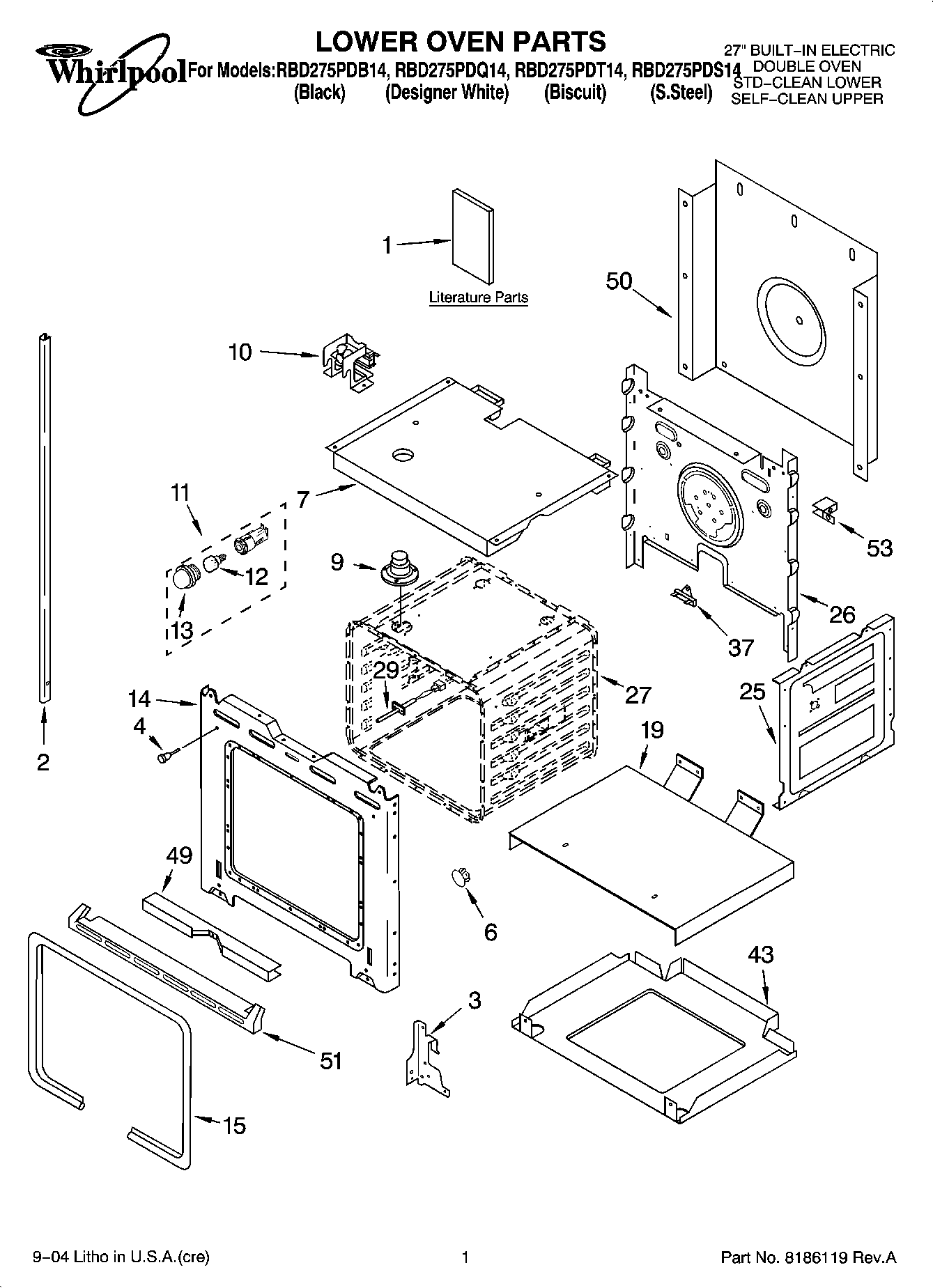

RBD275PDS14 01 – LOWER OVEN PARTS

RBD275PDS14 01 – LOWER OVEN PARTS

Written by

in

RBD275PDS14 01 – LOWER OVEN PARTS

Products

PositionProduct
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide (English))
1Literature Parts (Tech Sheet (Oven))
2Trim, Side (Left Hand)) (White Model)
2Trim, Side (LH Black)
2Trim, Side (RH Biscuit)
2Trim, Side (Right Hand) (White Model)
2Trim, Side (RH Black)
2Trim, Side (LH Biscuit)
2WP8281236 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
64450935 Whirlpool Oven Door Plug
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Fan & Bracket Assy
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Lens, Light
14WP4450118 Whirlpool Nut
14Frame, Front
14Screw
15Gasket, Door
19Support, Insulation
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
37WP4451354 Whirlpool Thermal Fuse Assembly
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WPL 4452414
51WP3400832 Whirlpool Screw
51WPL 4448476
51Tri
53WPL 4450364
53WPL 4449315
53WPL 4449845
53WP4449809 Whirlpool Screw
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
