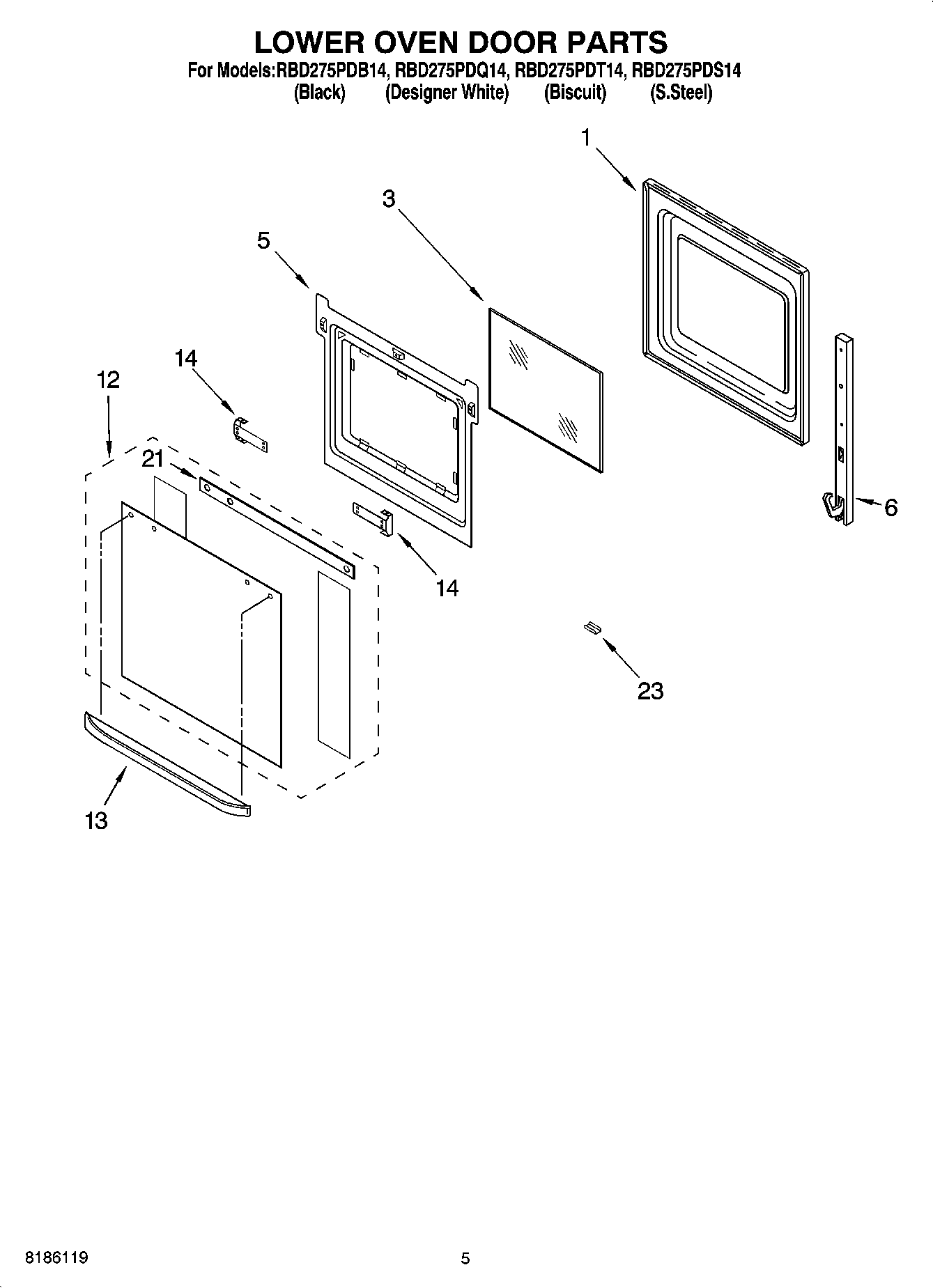

RBD275PDS14 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Door Liner
3	WP4449253 Whirlpool Glass Window
5	WP4449809 Whirlpool Screw
5	Retainer, Glass
6	9760570 Whirlpool Door Hinge
6	WP4449743 Whirlpool Screw
6	WP9760563 Whirlpool Door Hinge
6	Hinge, Door (Left Side)
6	Hinge, Door (R.Side (L.Brown))
12	Door Glass, Assy (S.Steel Model)
12	Door Glass, Assy (Black Model)
12	Door Glass, Assy (White Model)
12	Door Glass Assy (Biscuit)
13	Door Handle (Biscuit Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Bracket, Handle (R.Hand)
14	Bracket, Handle (L.Hand)
14	Screw
14	Bracket, Handle
21	Seal, Door Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
