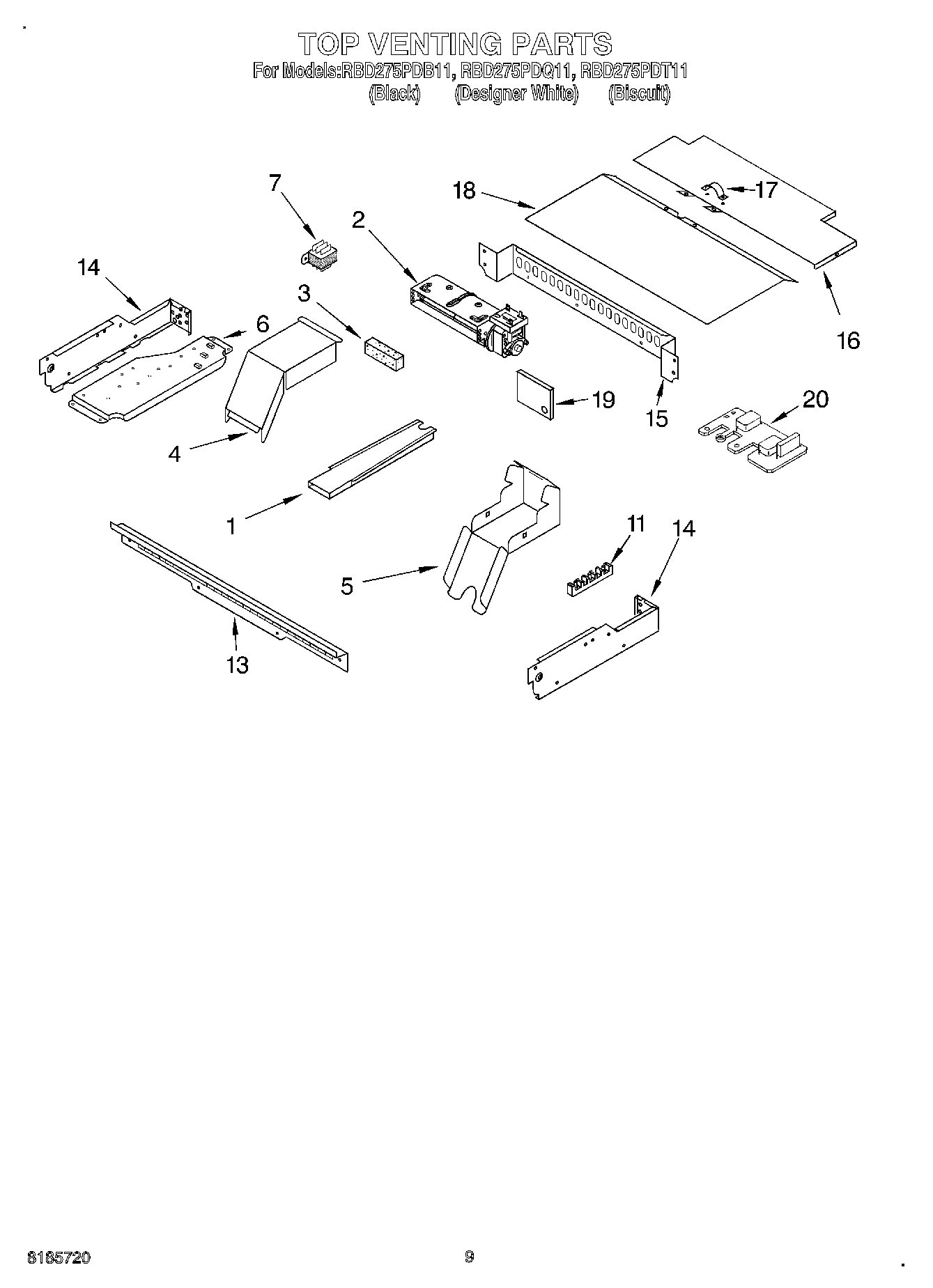

RBD275PDT11 07 – TOP VENTING

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
1	Screw
2	WP4455352 Whirlpool Mounting Bracket
2	Blower
3	W10491987 Whirlpool Foam Seal
4	4455178 Whirlpool Oven Top Elbow
5	4455177 Whirlpool Oven Bottom Elbow
6	Plate, Mounting
7	Transformer, Control
11	Screw
11	WP8203546 Whirlpool Terminal Block
13	Vent, (Control Panel)
13	WP4450038 Whirlpool Screw
14	WP4449154 Whirlpool Screw
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	Cover, Top Rear
18	Cover, Top Front
19	Plate, Fan
20	18 Ga. 80~c Rating (Red)
20	Wire (14 Ga. 200 c Brown)
20	1
20	Wire, 25` Roll (Red 14 Ga.)
20	261900 Whirlpool Microwave Spray
20	WPL 591014
20	WP4451985 Whirlpool Noise Filter Board
20	4451761 Whirlpool Oven Support Bracket
20	Harness, Wire STD (Main)
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	285006 Whirlpool Spray
20	WPW10339879 Whirlpool Wire Tie
20	4450800 Whirlpool Oven Screw
20	4448664 Whirlpool Oven Mounting Bracket
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Black 14 Ga.)
20	WP112432 Whirlpool Nut Assembly
20	WP4449809 Whirlpool Screw
20	72017 Whirlpool Appliance Touch-Up Paint White
20	72032 Whirlpool Touch Up Paint Black
20	WP482338 Whirlpool Refrigerator Adhesive
20	814381 Whirlpool Pin
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	WP261869 Whirlpool Microwave Paint
20	242831 Whirlpool Oven Wire
20	Spacer, Harness
20	Conduit, Double
20	WP4448950 Whirlpool Screw
20	350930 Whirlpool White Spray Paint
