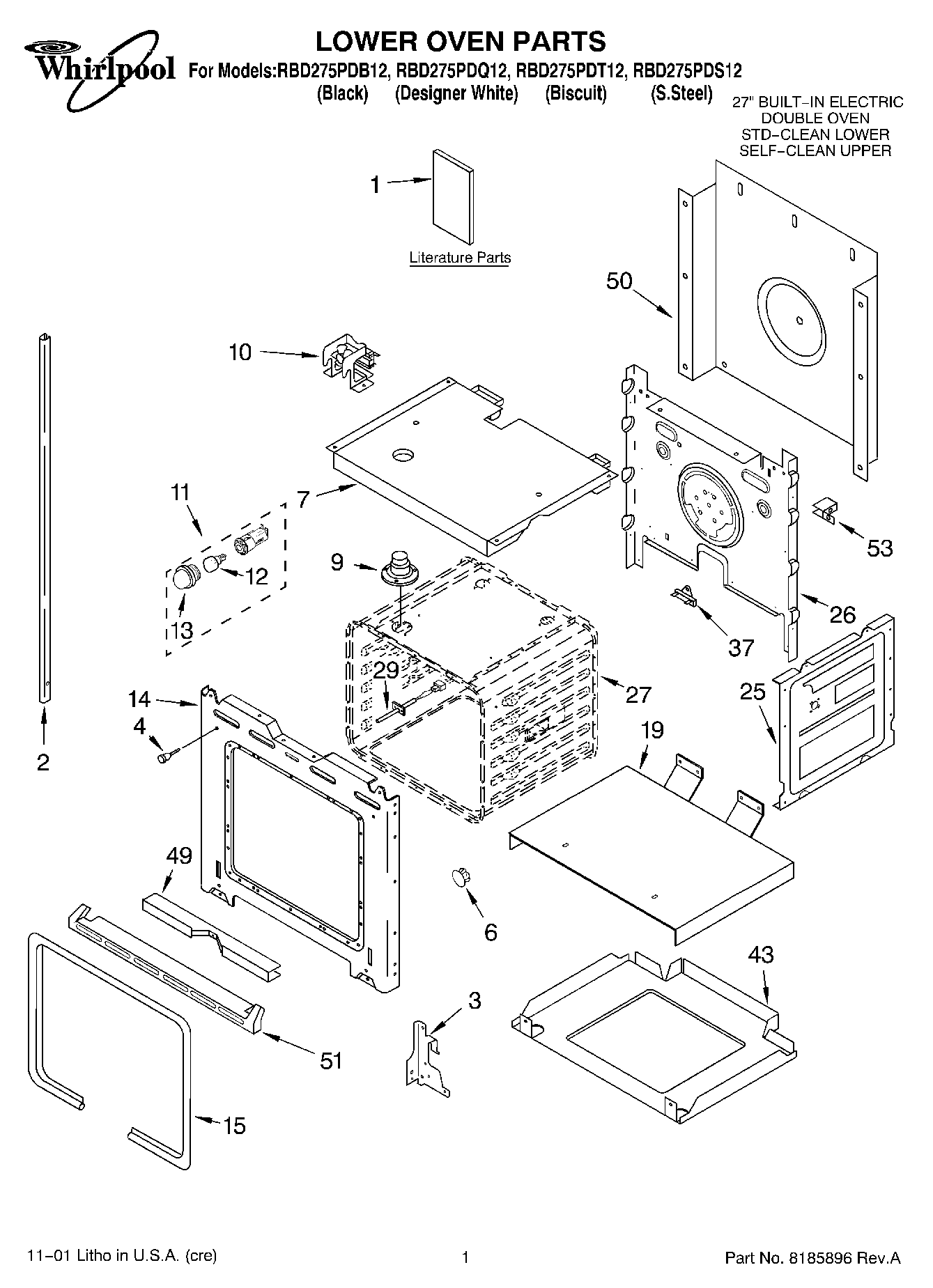

RBD275PDT12 01 – LOWER OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Use & Care Guide (English))
1	Literature Parts (Tech Sheet)
1	Literature Parts (Installation Instructions)
2	Trim, Side (RH Biscuit)
2	Trim, Side (LH Biscuit)
2	WP8281236 Whirlpool Screw
2	Trim, Side (Left Hand)) (White Model)
2	Trim, Side (LH Black)
2	Trim, Side (Right Hand) (White Model)
2	Trim, Side (RH Black)
2	Trim, Side (White)
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	4448520 Whirlpool Oven Bumper
6	4450935 Whirlpool Oven Door Plug
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
9	SCREW
10	Fan & Bracket Assy
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Lens, Light
14	Frame, Front
14	Screw
14	WP4450118 Whirlpool Nut
15	Gasket, Door
19	Support, Insulation
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
37	WP4451354 Whirlpool Thermal Fuse Assembly
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
51	Tri
51	WPL 4452414
51	WP3400832 Whirlpool Screw
51	WPL 4448476
53	WP4449809 Whirlpool Screw
53	WPL 4449315
53	WPL 4450364
53	WPL 4449845
