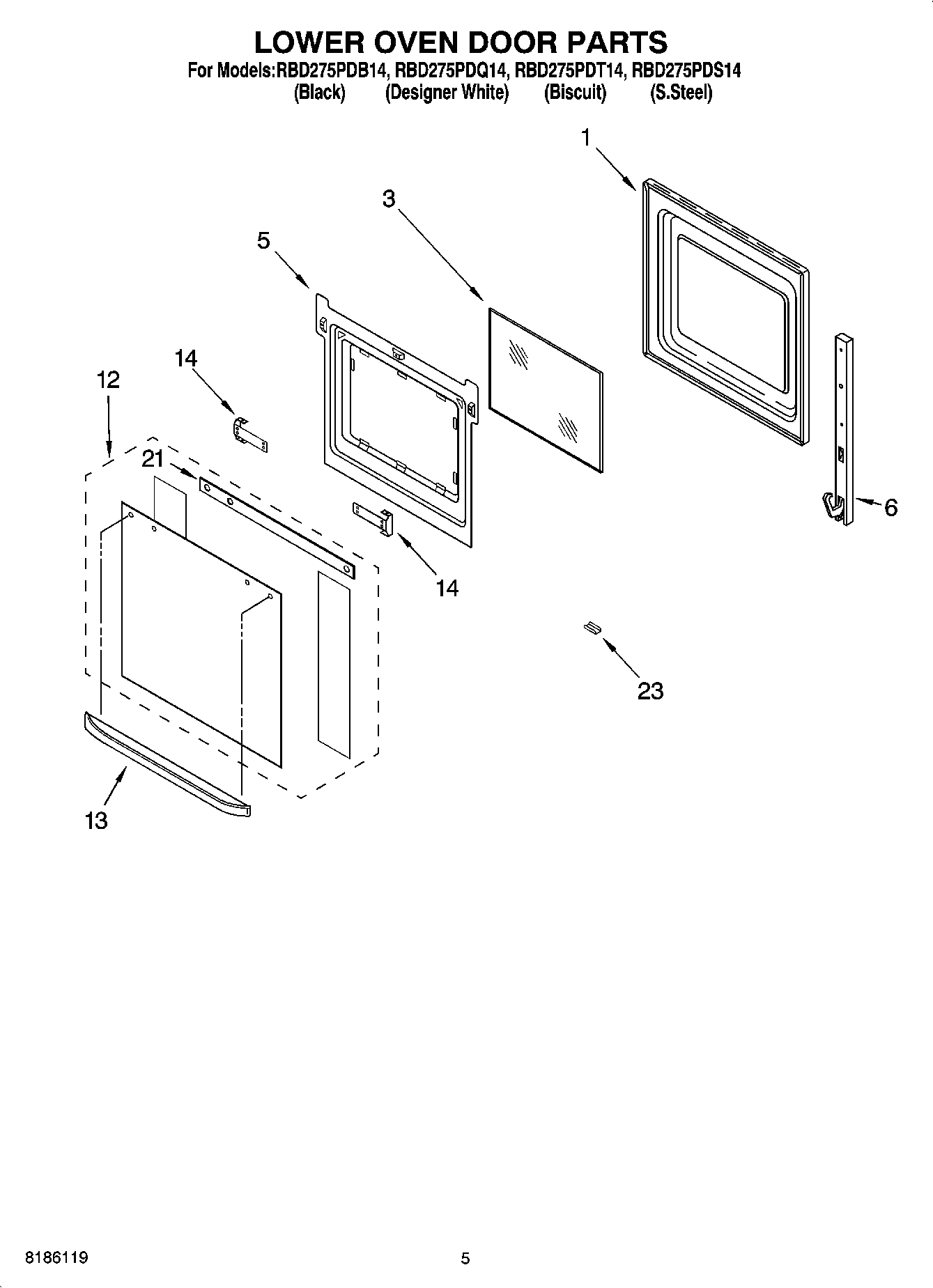

RBD275PDT14 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Door Liner
3	WP4449253 Whirlpool Glass Window
5	WP4449809 Whirlpool Screw
5	Retainer, Glass
6	Hinge, Door (R.Side (L.Brown))
6	Hinge, Door (Left Side)
6	WP9760563 Whirlpool Door Hinge
6	9760570 Whirlpool Door Hinge
6	WP4449743 Whirlpool Screw
12	Door Glass, Assy (S.Steel Model)
12	Door Glass, Assy (Black Model)
12	Door Glass, Assy (White Model)
12	Door Glass Assy (Biscuit)
13	Handle, Door (Black Model)
13	Handle, Door (White Model)
13	Door Handle (Biscuit Model)
14	Screw
14	Bracket, Handle (R.Hand)
14	Bracket, Handle
14	Bracket, Handle (L.Hand)
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	RETAINER,GLASS CLIP (BISCUIT)
