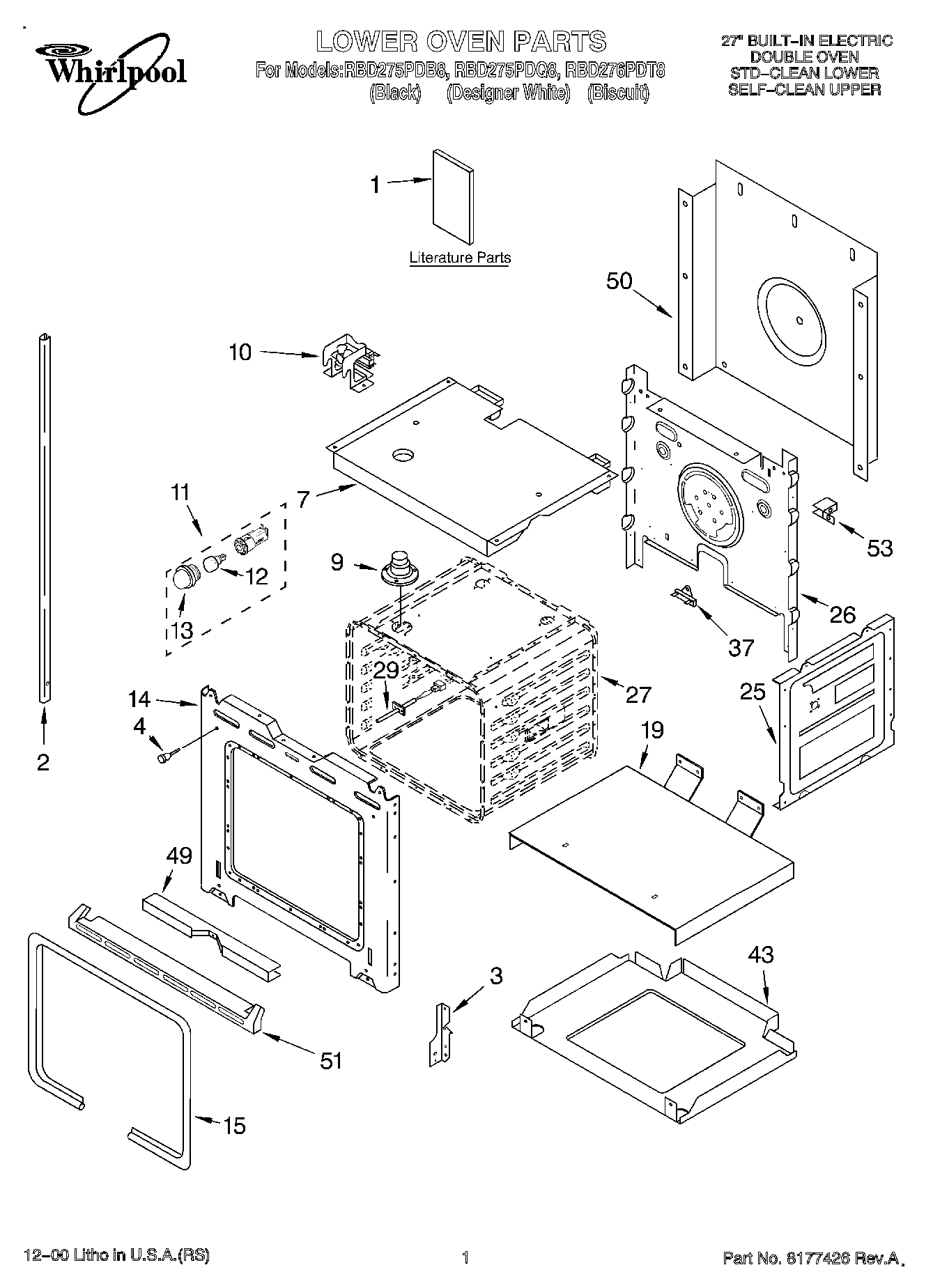

RBD275PDT8 01 – LOWER OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide (Oven))
1	Literature Parts (Tech Sheet)
2	Trim, Side (Right Hand) (White Model)
2	Trim, Side (LH Black)
2	Trim, Side (Left Hand)) (White Model)
2	Trim, Side (RH Biscuit)
2	Trim, Side (LH Biscuit)
2	Trim, Side (RH Black)
2	Trim, Side (White)
2	WP8281236 Whirlpool Screw
3	Reciever, Hinge (Left Hand)
3	Reciever, Hinge (Right Hand)
4	4448520 Whirlpool Oven Bumper
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
9	SCREW
10	Fan & Bracket Assy
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Lens, Light
14	Frame, Front
14	WP4450118 Whirlpool Nut
14	Screw
15	Gasket, Door
19	Support, Insulation
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
37	WP4451354 Whirlpool Thermal Fuse Assembly
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	WPL 4448476
51	WPL 4452414
51	Screw, (2)
51	Tri
53	WPL 4449845
53	WPL 4449315
53	WPL 4450364
53	WP4449809 Whirlpool Screw
