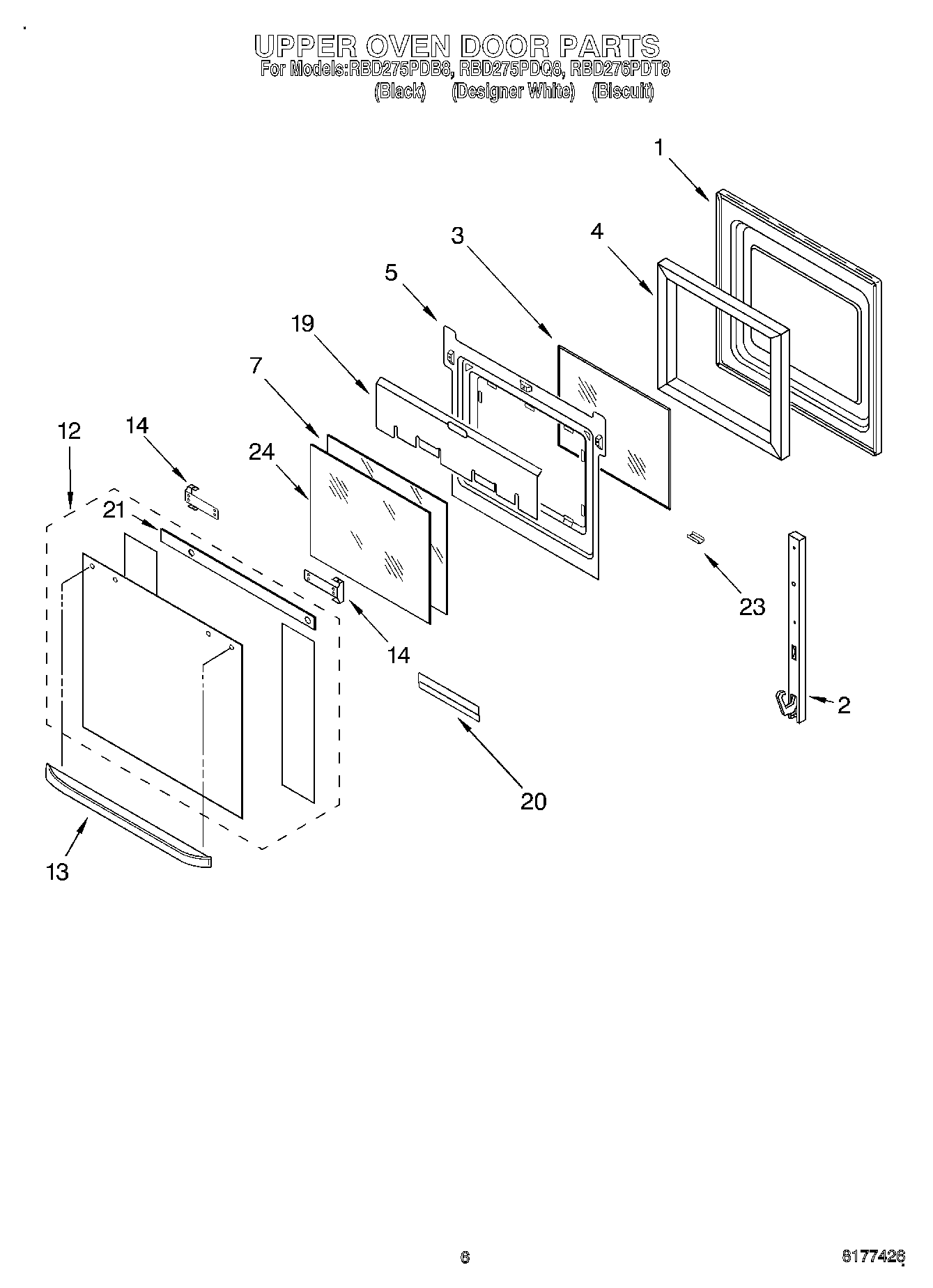

RBD275PDT8 04 – UPPER OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4455523 Whirlpool Oven Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
12	Door Glass, Assy (White Model)
12	Door Glass Assy (Black Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
13	Door Glass Assy (Biscuit)
14	Bracket, Handle
14	Screw
14	Door Handle (Biscuit Model)
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	Glass, Inner
