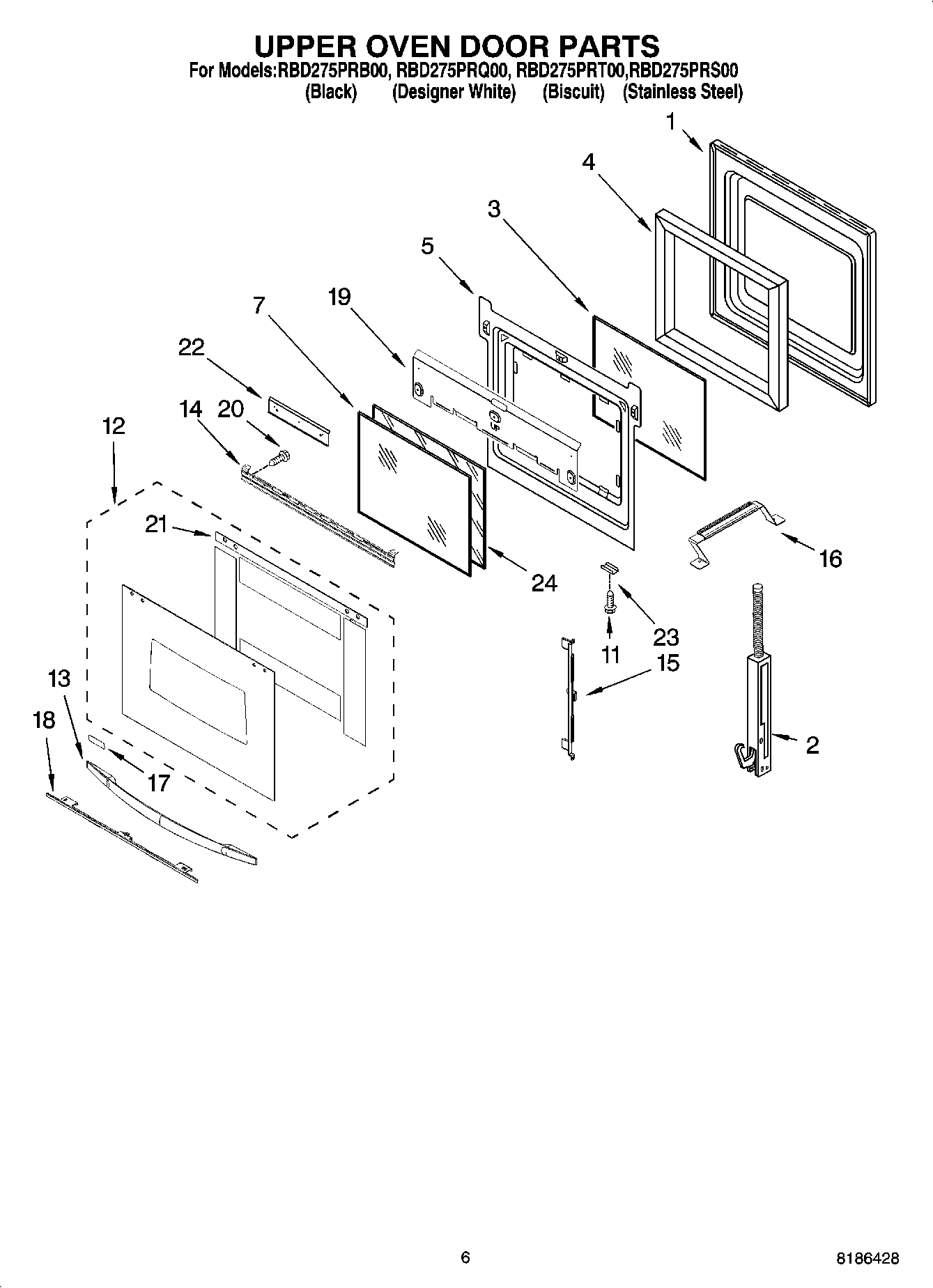

RBD275PRB00 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	9760569 Whirlpool Door Hinge
2	9760570 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	Glass, Inner
11	WP3400832 Whirlpool Screw
12	Door Glass, Assy (White)
12	Assembly, Door Glass (Black)
12	Assembly, Door Glass (Stainless)
12	Assembly, Door Glass (Biscuit)
13	Handle, Door (Biscuit Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Bracket, Handle
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	BADGE
18	Clip, Door (White)
18	Clip, Door (Black)
18	Retainer, Door (Biscuit)
19	Shield, Heat
20	Screw
21	Seal-Door
22	Shield, Heat (Bottom)
23	Retainer, Glass-Clip (Stainless Steel)
24	WP9759227 Whirlpool Glass Door
