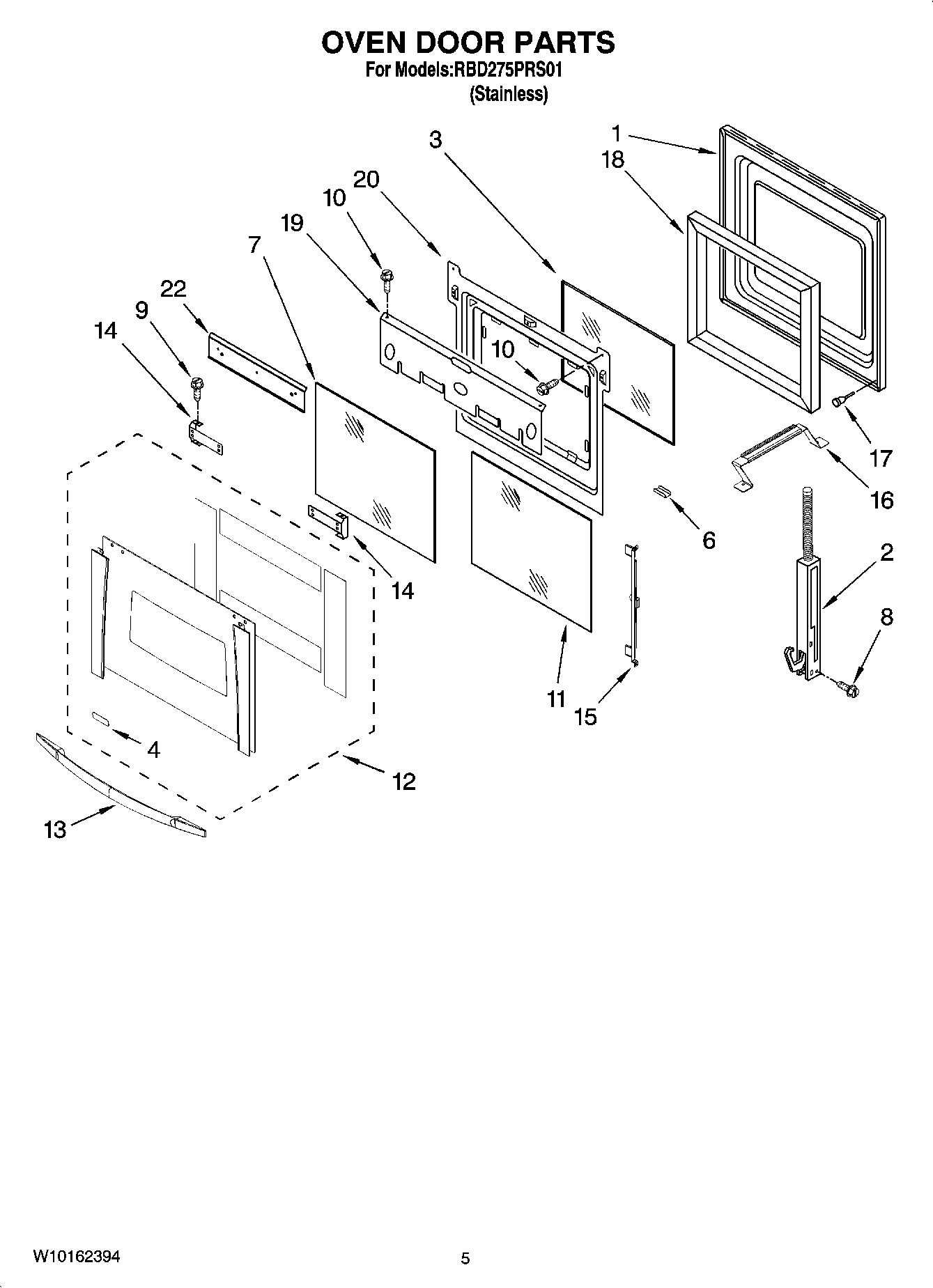

RBD275PRS01 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	Hinge, Door (For Stainless Model Only) (Left)
2	Hinge, Door (For Stainless Model Only) (Right)
3	Glass, Inner
4	BADGE
6	Retainer, Glass-Clip (Stainless Steel)
7	WP4449253 Whirlpool Glass Window
8	WP4449743 Whirlpool Screw
9	Screw
10	WP4449809 Whirlpool Screw
11	Glass, Inner
12	Assembly, Door Glass (Stainless)
12	Assembly, Door Glass (Upper)
13	Handle, Door (Black Model)
14	Bracket, Handle
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	4448520 Whirlpool Oven Bumper
18	Insulation, Sides
19	Shield, Heat
20	Retainer, Glass
22	Shield, Heat (Bottom)
