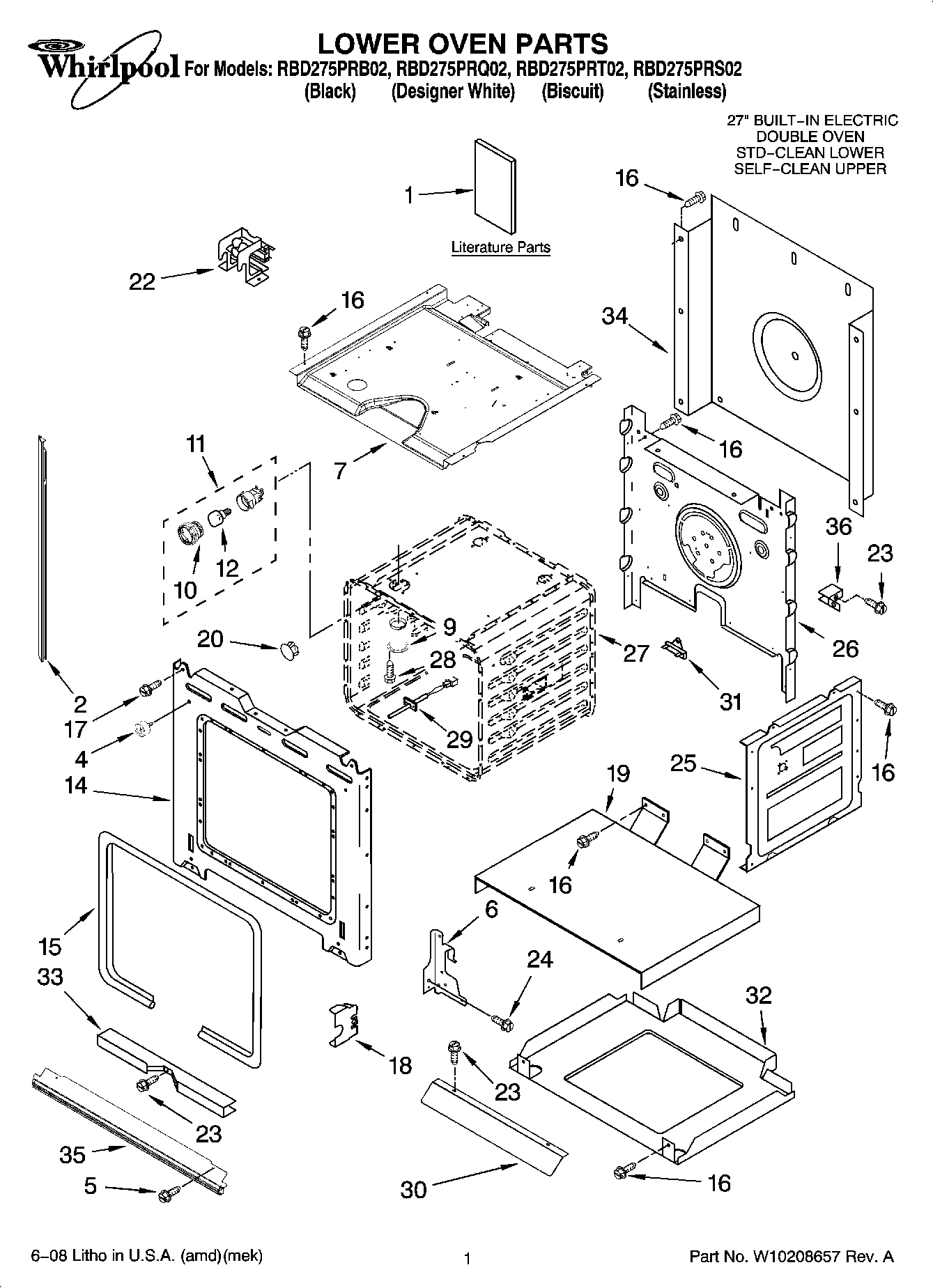

RBD275PRS02 01 – LOWER OVEN PARTS

Products

Position	Product
	WPL 4450364
	WPL 4449315
	Following Parts Not Illustrated
	Insulation
1	Installation Instructions
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	Tech Sheet (Oven)
1	Use & Care Guide
2	WPW10339499 Whirlpool Trim Assembly
2	W10339503 Whirlpool Trim
2	WPW10339500 Whirlpool Trim
2	WPW10339502 Whirlpool Trim Kit
2	Trim, Side Left (Stainless)
2	Trim, Side Right (Stainless)
2	Trim, Side Left (Biscuit)
2	Trim, Side Right (White)
4	W10105790 Whirlpool Bumper
5	WP3400805 Whirlpool Screw Assembly
5	WP3400832 Whirlpool Screw
6	WP4455605 Whirlpool Left Hand Hinge
6	WP4455606 Whirlpool Right Hand Hinge
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	Frame, Front
15	Gasket, Door
16	WP4449809 Whirlpool Screw
17	Screw
18	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
20	4450935 Whirlpool Oven Door Plug
22	Fan & Bracket Assy
23	WP4449154 Whirlpool Screw
24	WP4449743 Whirlpool Screw
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	SCREW
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Deflector, Vent
31	WP4451354 Whirlpool Thermal Fuse Assembly
32	Base, Chassis
33	WP4448933 Whirlpool Retainer
34	WP4451747 Whirlpool Rear Cover
35	Trim, Bottom (Biscuit)
35	Trim, Bottom (Stainless)
35	Trim, Bottom (White)
35	Trim, Bottom (Black)
36	WPL 4449845
