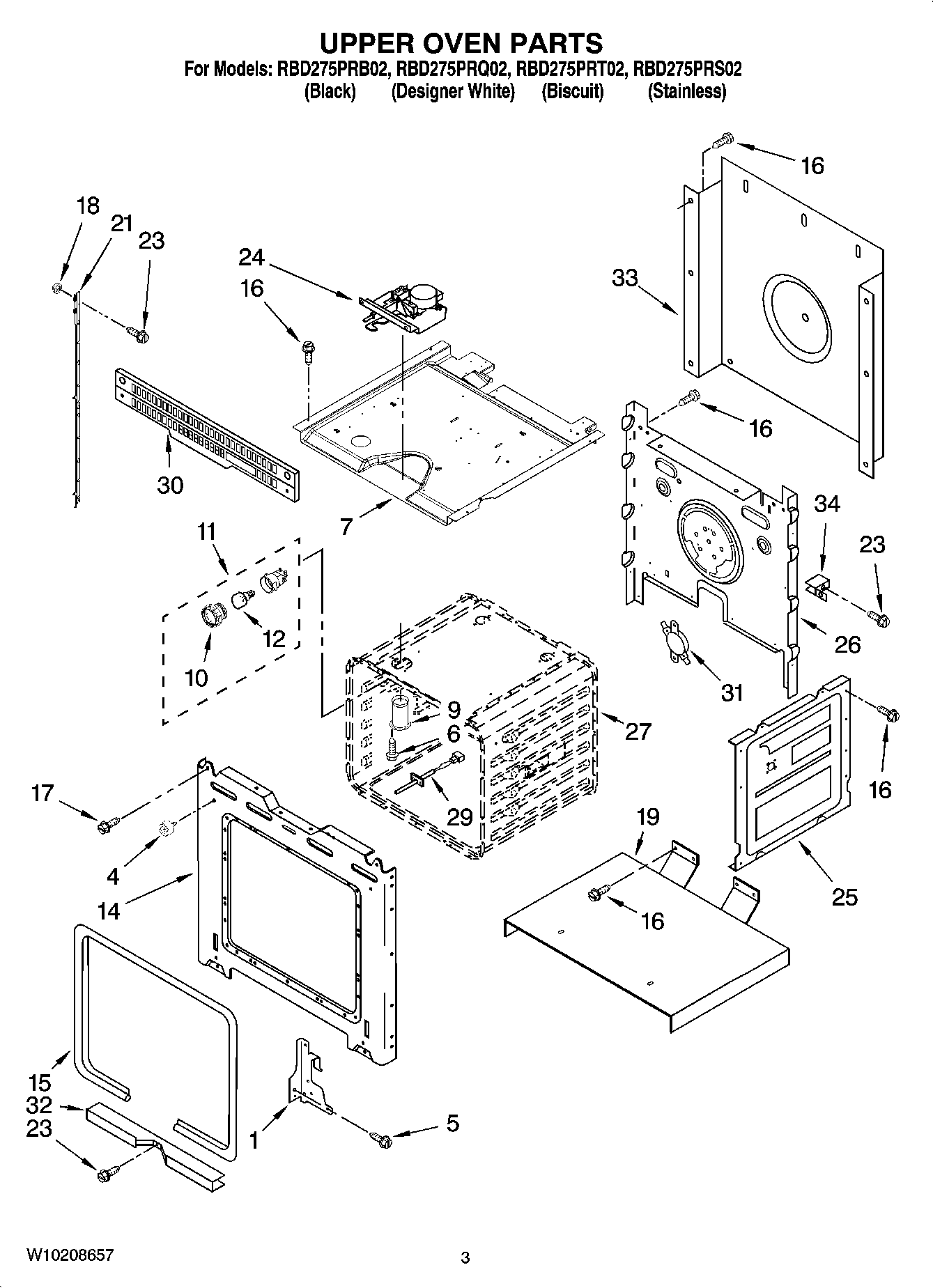

RBD275PRS02 02 – UPPER OVEN PARTS

Products

Position	Product
	Following Parts Not Illustrated
	WPL 4450364
	WPL 4449315
	Insulation
1	WP4455606 Whirlpool Right Hand Hinge
1	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	WP4449743 Whirlpool Screw
6	SCREW
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	Frame, Front
15	WP4455381 Whirlpool Door Gasket
16	WP4449809 Whirlpool Screw
17	Screw
18	WP4448444 Whirlpool Grommet
19	Support, Insulation
21	WP8302793 Whirlpool Mounting Rail
21	Rail, Side (Left)
23	WP4449154 Whirlpool Screw
24	WP9760889 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Vent, Center
31	WP9759243 Whirlpool Thermostat
32	WP4448933 Whirlpool Retainer
33	WP4451747 Whirlpool Rear Cover
34	WPL 4449845
