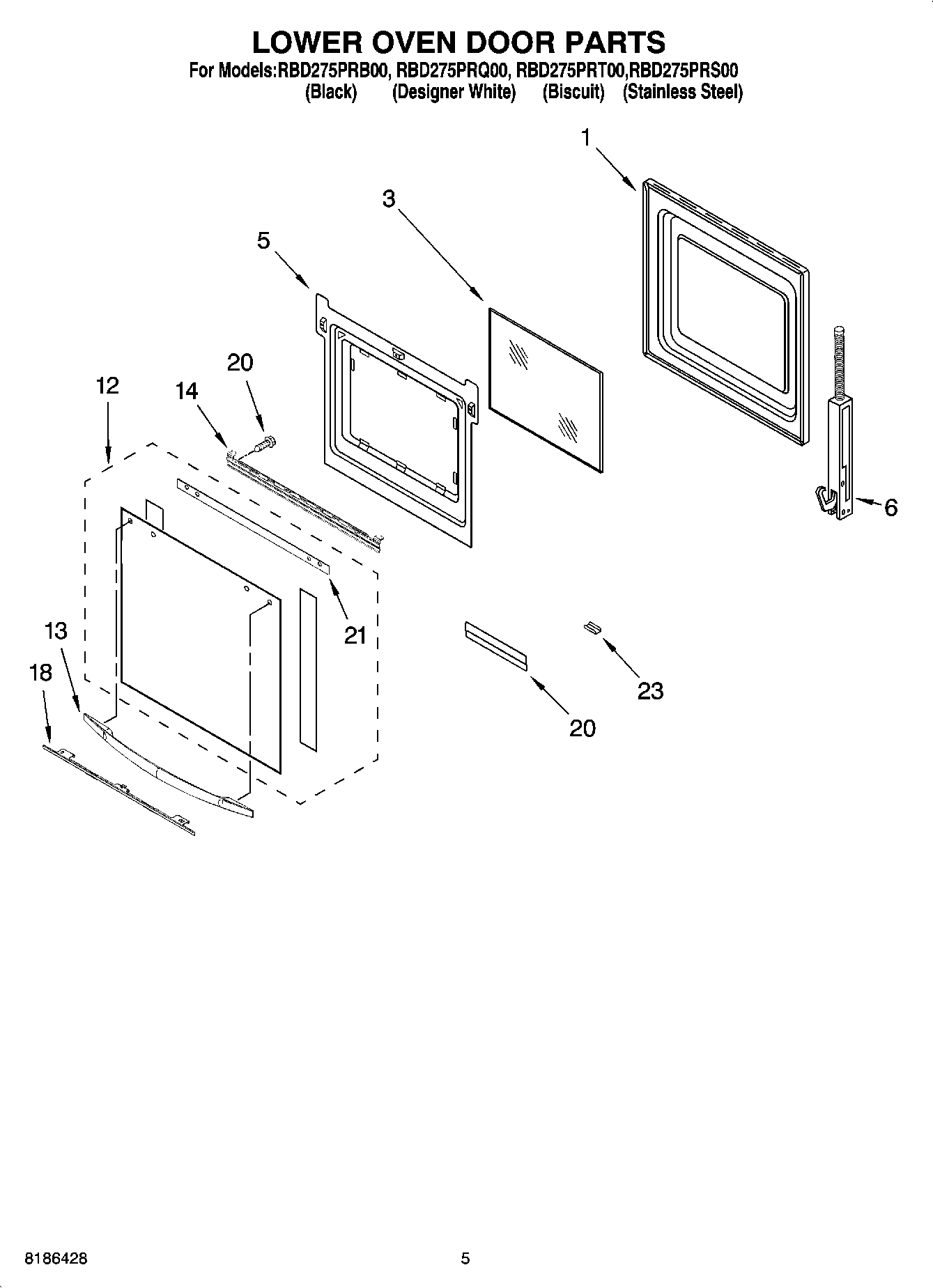

RBD275PRT00 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
5	Retainer, Glass
6	Hinge, Door (Left)
6	WP9760563 Whirlpool Door Hinge
6	Hinge, Door (For Stainless Model Only) (Left)
6	Hinge, Door (For Stainless Model Only) (Right)
12	Assembly, Door Glass (Biscuit)
12	Door Glass, Assy (White)
12	Assembly, Door Glass (Black)
12	Assembly, Door Glass (Stainless)
13	Handle, Door (Biscuit Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Bracket, Handle
18	Retainer, Door (Biscuit)
18	Clip, Door (White)
18	Clip, Door (Black)
20	Screw
21	Seal-Door
23	Clip, Retainer (Black Model)
