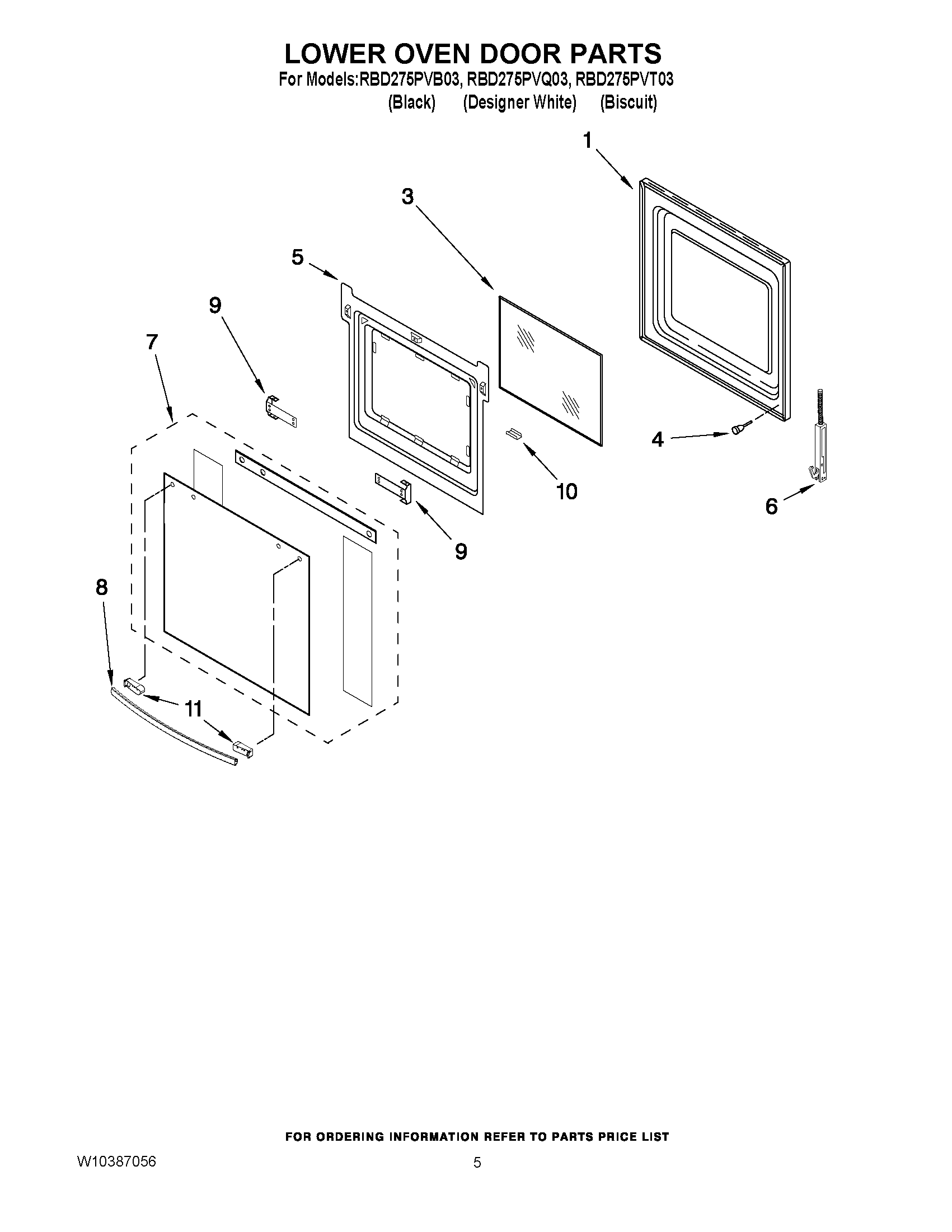

RBD275PVB03 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
4	4448520 Whirlpool Oven Bumper
5	SCREW
5	Retainer, Glass
6	Hinge, Door (Left)
6	WP9760563 Whirlpool Door Hinge
6	WP4449743 Whirlpool Screw
7	ASSEMBLY, DOOR GLASS (WHITE)
7	Assembly, Door Glass (Biscuit)
7	ASSEMBLY, DOOR GLASS (BLACK)
8	Door Handle (Biscuit)
8	Door Handle (White)
8	W10169802 Whirlpool Microwave Door Handle
9	4455803 Whirlpool Oven Bracket
9	Bracket, Handle (L.Hand)
10	RETAINER, CLIP (WHITE)
10	RETAINER, CLIP (BLACK)
10	CLIP, RETAINER (BISCUIT)
11	ENDCAP, HANDLE (BLACK)
11	ENDCAP, HANDLE (WHITE)
11	ENDCAP, HANDLE (BISCUIT)
