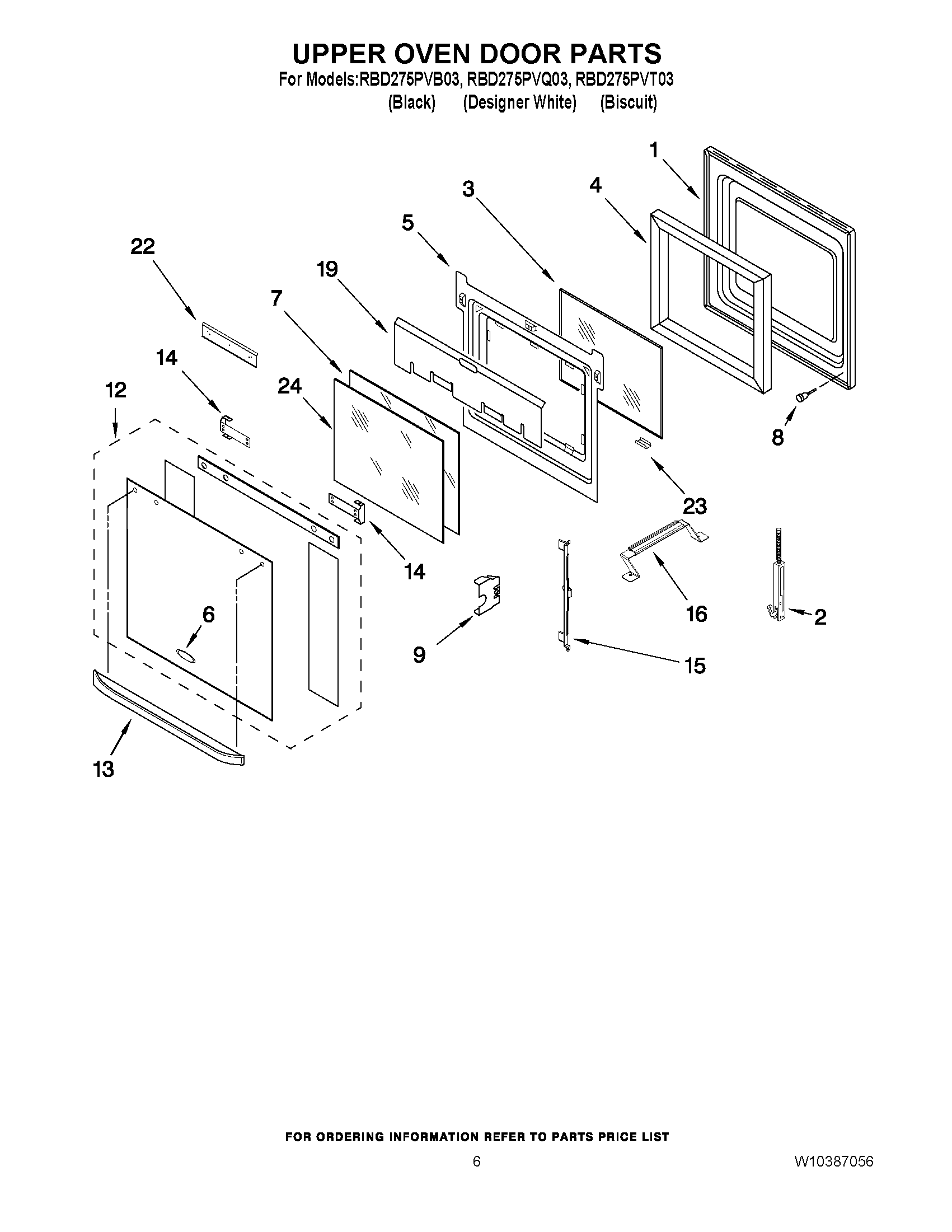

RBD275PVB03 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
6	Nameplate
7	Glass, Inner
8	4448520 Whirlpool Oven Bumper
9	4452152 Whirlpool Oven Mounting Bracket
12	Assembly, Door Glass (Biscuit)
12	ASSEMBLY, DOOR GLASS (BLACK)
12	ASSEMBLY, DOOR GLASS (WHITE)
13	Door Handle (Biscuit)
13	Door Handle (White)
13	W10169802 Whirlpool Microwave Door Handle
14	Bracket, Handle (L.Hand)
14	4455803 Whirlpool Oven Bracket
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
19	SCREW
22	Shield, Heat (Bottom)
23	RETAINER, CLIP (BLACK)
23	RETAINER, CLIP (WHITE)
23	CLIP, RETAINER (BISCUIT)
24	WP9759227 Whirlpool Glass Door
