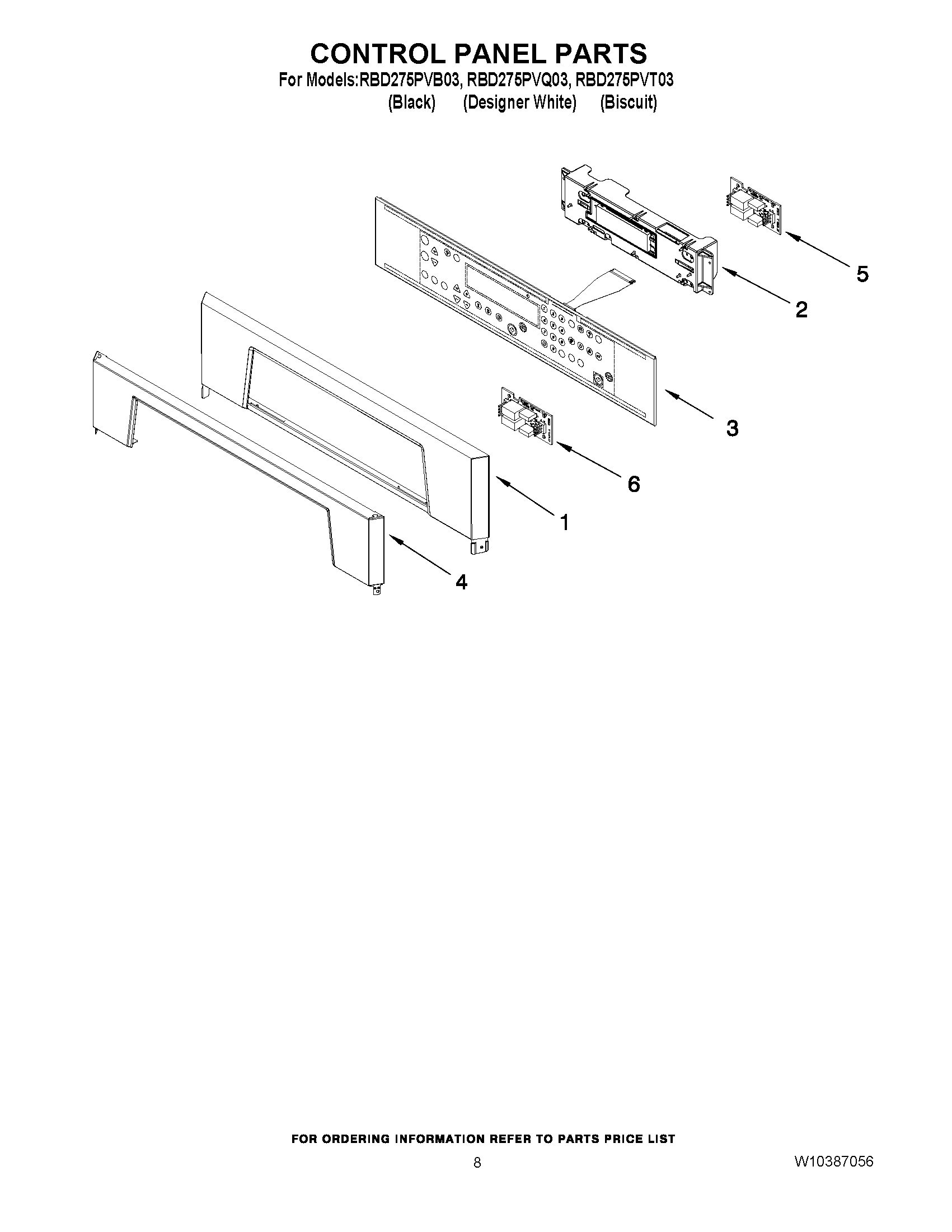

RBD275PVB03 06 – CONTROL PANEL PARTS

RBD275PVB03 06 – CONTROL PANEL PARTS

Written by

in

RBD275PVB03 06 – CONTROL PANEL PARTS

Products

Position	Product
1	WP8302844 Whirlpool Control Panel
1	Control Panel (White Model)
1	Control Panel (Biscuit Model)
2	ASSEMBLY, CONTROL ENCLOSURE
3	Membrane Switch (Biscuit)
3	Membrane Switch (White)
3	Membrane Switch (Black)
4	Trim, Control Panel (Black)
4	Trim, Control Panel (White)
4	Trim, Control Panel (Biscuit)
5	BACKER, CONTROL PANEL
6	Latch, Sister Board
