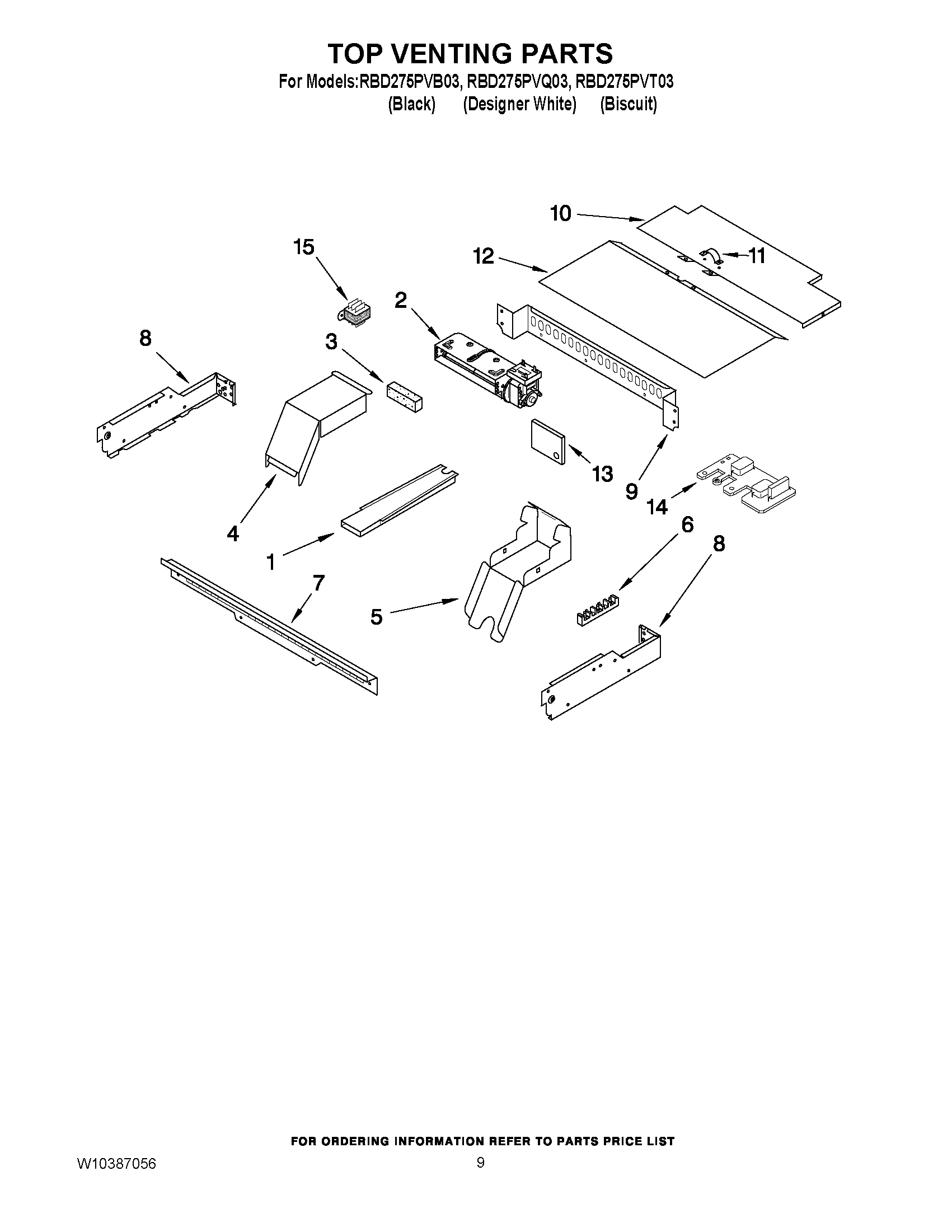

RBD275PVB03 07 – TOP VENTING PARTS

Written by

Products

Position	Product
1	Screw
1	4451759 Whirlpool Oven Exhaust Vent
2	WPW10176670 Whirlpool Blower
3	W10491987 Whirlpool Foam Seal
4	4455178 Whirlpool Oven Top Elbow
5	4455177 Whirlpool Oven Bottom Elbow
6	BLOCK, TERMINAL
6	Screw
7	VENT, CONTROL PANEL
7	WP4450038 Whirlpool Screw
8	W10755214 Whirlpool Side Complete
8	W10790240 Whirlpool Side Assembly Complete
9	Back, Control
10	Cover, Top Rear
11	4448664 Whirlpool Oven Mounting Bracket
12	SCREW
12	Cover, Top Front
13	Plate, Fan
14	SUPPRESSOR
15	Transformer
