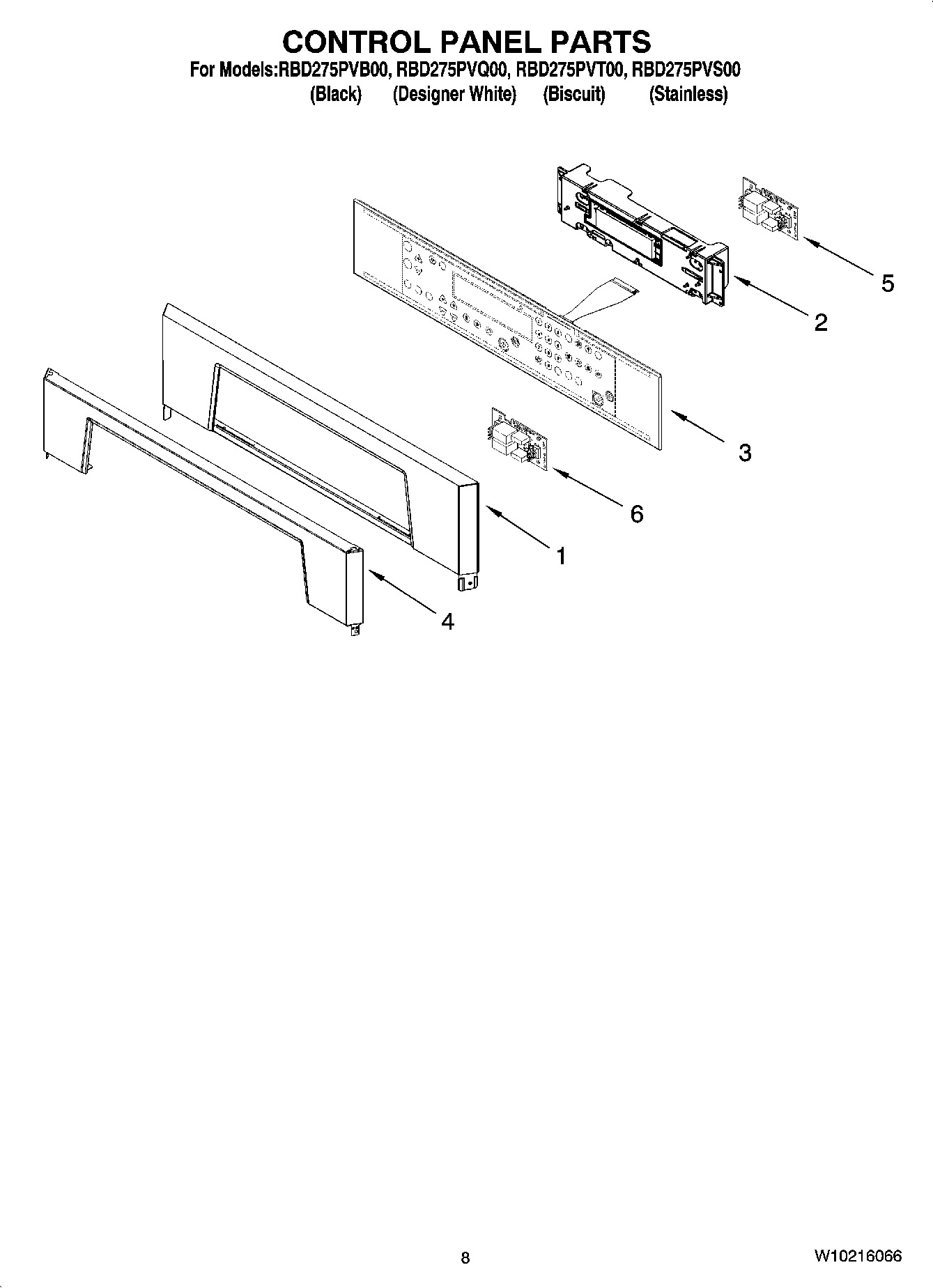

RBD275PVQ00 06 – CONTROL PANEL PARTS

Products

PositionProduct
1WP8302844 Whirlpool Control Panel
1Control Panel (White Model)
1Control Panel (Biscuit Model)
2Assy, Control
3Membrane Switch (Biscuit)
3Membrane Switch (White)
3Membrane Switch (Black)
4Trim, Control Panel (Biscuit)
4Trim, Control Panel (Black)
4Trim, Control Panel (Stainless)
4Trim, Control Panel (White)
5Backer, Control Panel
6Latch, Sister Board
