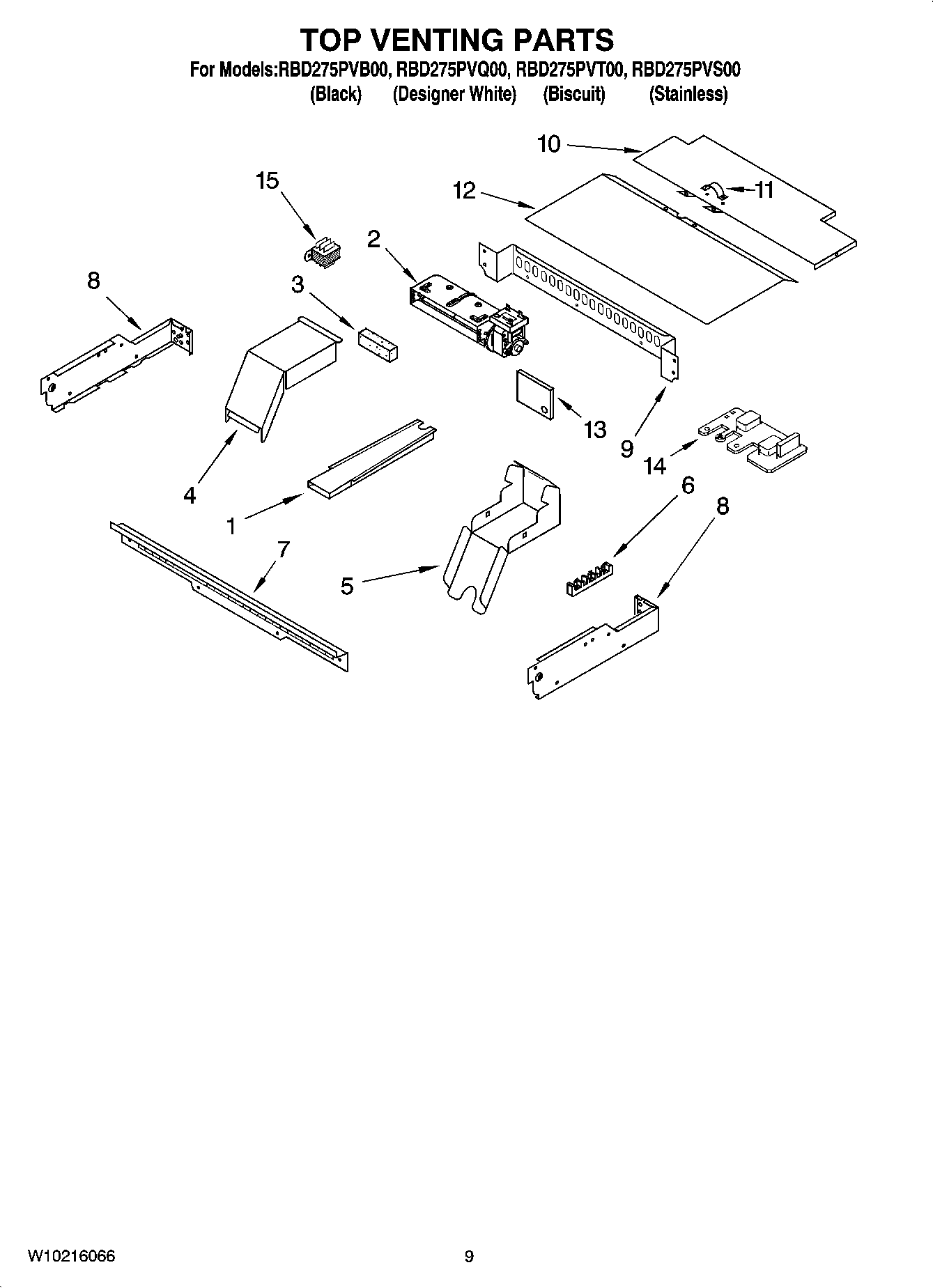

RBD275PVQ00 07 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WIRING HARNESS PARTS
	WP4448950 Whirlpool Screw
	Conduit, Double
	4452400 Whirlpool Microwave Wire Harness
	WP261869 Whirlpool Microwave Paint
	WPL 591014
	4451761 Whirlpool Oven Support Bracket
	261900 Whirlpool Microwave Spray
	Miscellaneous
	8302154 Whirlpool Oven Wire Harness
	ADHESIVE
	8528351 Whirlpool Clip
	WP482338 Whirlpool Refrigerator Adhesive
	Nut
	4448664 Whirlpool Oven Mounting Bracket
	WP4449809 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	4450800 Whirlpool Oven Screw
	WPW10339879 Whirlpool Wire Tie
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
1	Screw
1	4451759 Whirlpool Oven Exhaust Vent
2	WPW10176670 Whirlpool Blower
2	WP4455352 Whirlpool Mounting Bracket
3	W10491987 Whirlpool Foam Seal
4	4455178 Whirlpool Oven Top Elbow
5	4455177 Whirlpool Oven Bottom Elbow
6	WP8203546 Whirlpool Terminal Block
6	Screw
7	VENT, CONTROL PANEL
7	WP4450038 Whirlpool Screw
8	W10790240 Whirlpool Side Assembly Complete
8	W10755214 Whirlpool Side Complete
9	Back, Control
10	Cover, Top Rear
11	WP112432 Whirlpool Nut Assembly
12	Cover, Top Front
13	Plate, Fan
14	SUPPRESSOR
15	Transformer
