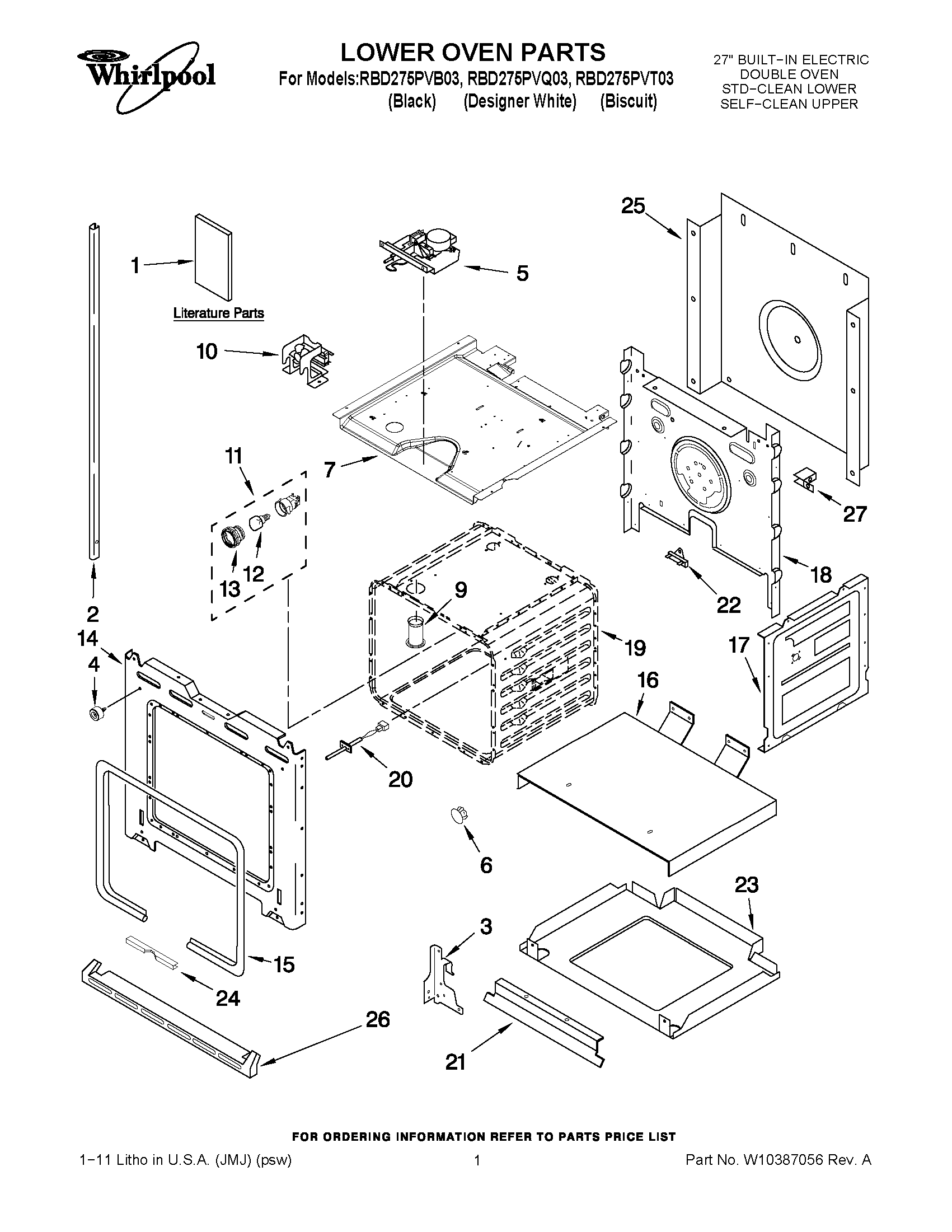

RBD275PVQ03 01 – LOWER OVEN PARTS

RBD275PVQ03 01 – LOWER OVEN PARTS

Written by

in

RBD275PVQ03 01 – LOWER OVEN PARTS

Products

PositionProduct
NIWPL 4450364
NIWPL 4449315
1Use & Care Guide
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1Tech Sheet (Oven)
1Installation Instructions
2W10339503 Whirlpool Trim
2WPW10339499 Whirlpool Trim Assembly
2WPW10339500 Whirlpool Trim
2WPW10339502 Whirlpool Trim Kit
2TRIM, SIDE LEFT (BISCUIT)
2TRIM, SIDE RIGHT (WHITE)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5WPW10195934 Whirlpool Door Latch
64450935 Whirlpool Oven Door Plug
7Top, Chassis
9W10861715 Whirlpool Vent Tube
9SCREW
10Fan & Bracket Assy
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Lens, Light (2)
14Screw
14Frame, Front
14WP4450118 Whirlpool Nut
15GASKET, DOOR
16Support, Insulation
17W10782197 Whirlpool Side Panel
18Back, Chassis
19CABINET (NOT A SERVICEABLE PART)
20WPW10131825 Whirlpool Oven Temperature Sensor
21Deflector, Vent
22WP4451354 Whirlpool Thermal Fuse Assembly
23Base, Chassis
24WP4448933 Whirlpool Retainer
24WP4449154 Whirlpool Screw
25WP4451747 Whirlpool Rear Cover
26Trim, Bottom Vent (Black)
26WP3400832 Whirlpool Screw
26Trim, Bottom Vent (Biscuit)
26Trim, Bottom Vent (White)
27WPL 4449845
27SCREW
