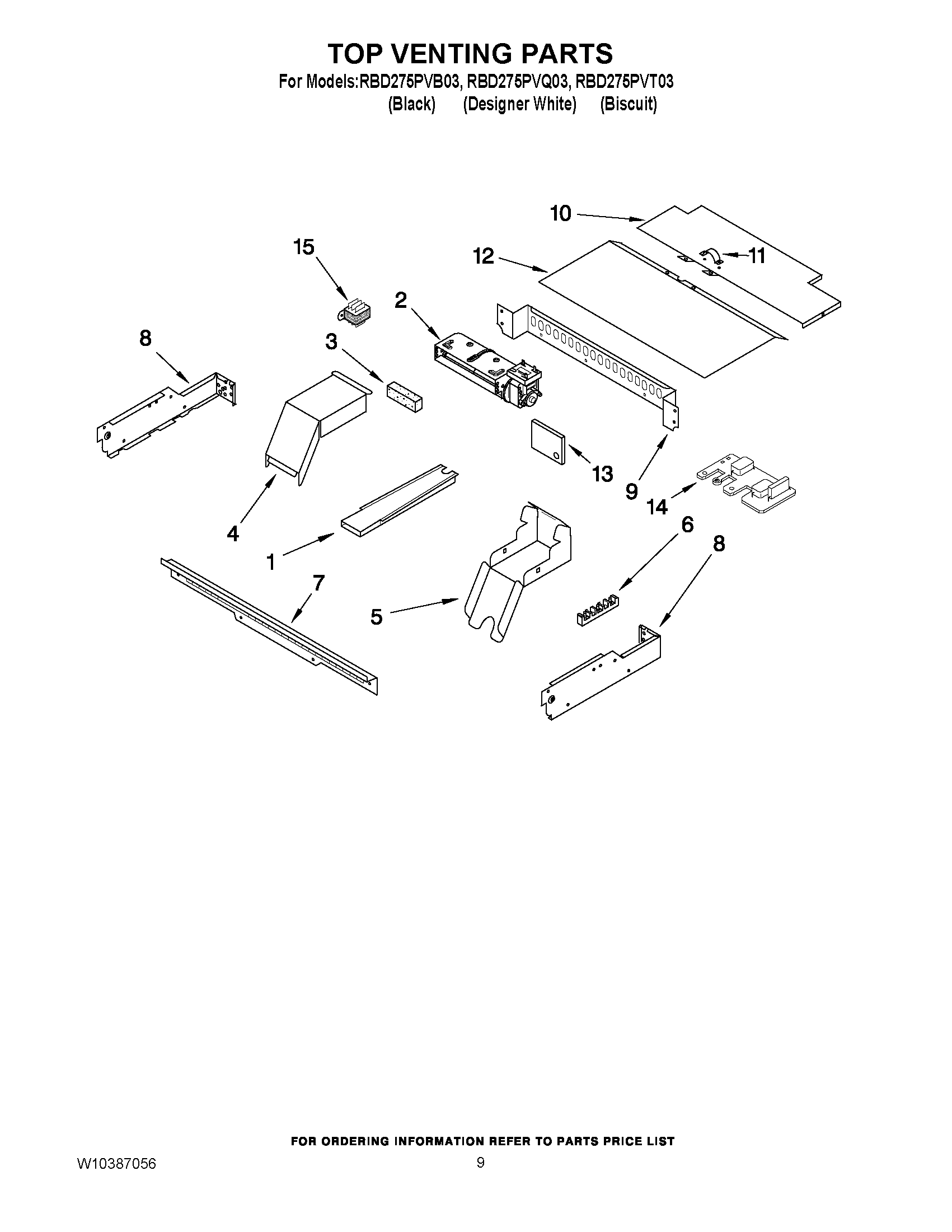

RBD275PVQ03 07 – TOP VENTING PARTS

Products

PositionProduct
1Screw
14451759 Whirlpool Oven Exhaust Vent
2WPW10176670 Whirlpool Blower
3W10491987 Whirlpool Foam Seal
44455178 Whirlpool Oven Top Elbow
54455177 Whirlpool Oven Bottom Elbow
6BLOCK, TERMINAL
6Screw
7VENT, CONTROL PANEL
7WP4450038 Whirlpool Screw
8W10755214 Whirlpool Side Complete
8W10790240 Whirlpool Side Assembly Complete
9Back, Control
10Cover, Top Rear
114448664 Whirlpool Oven Mounting Bracket
12SCREW
12Cover, Top Front
13Plate, Fan
14SUPPRESSOR
15Transformer
