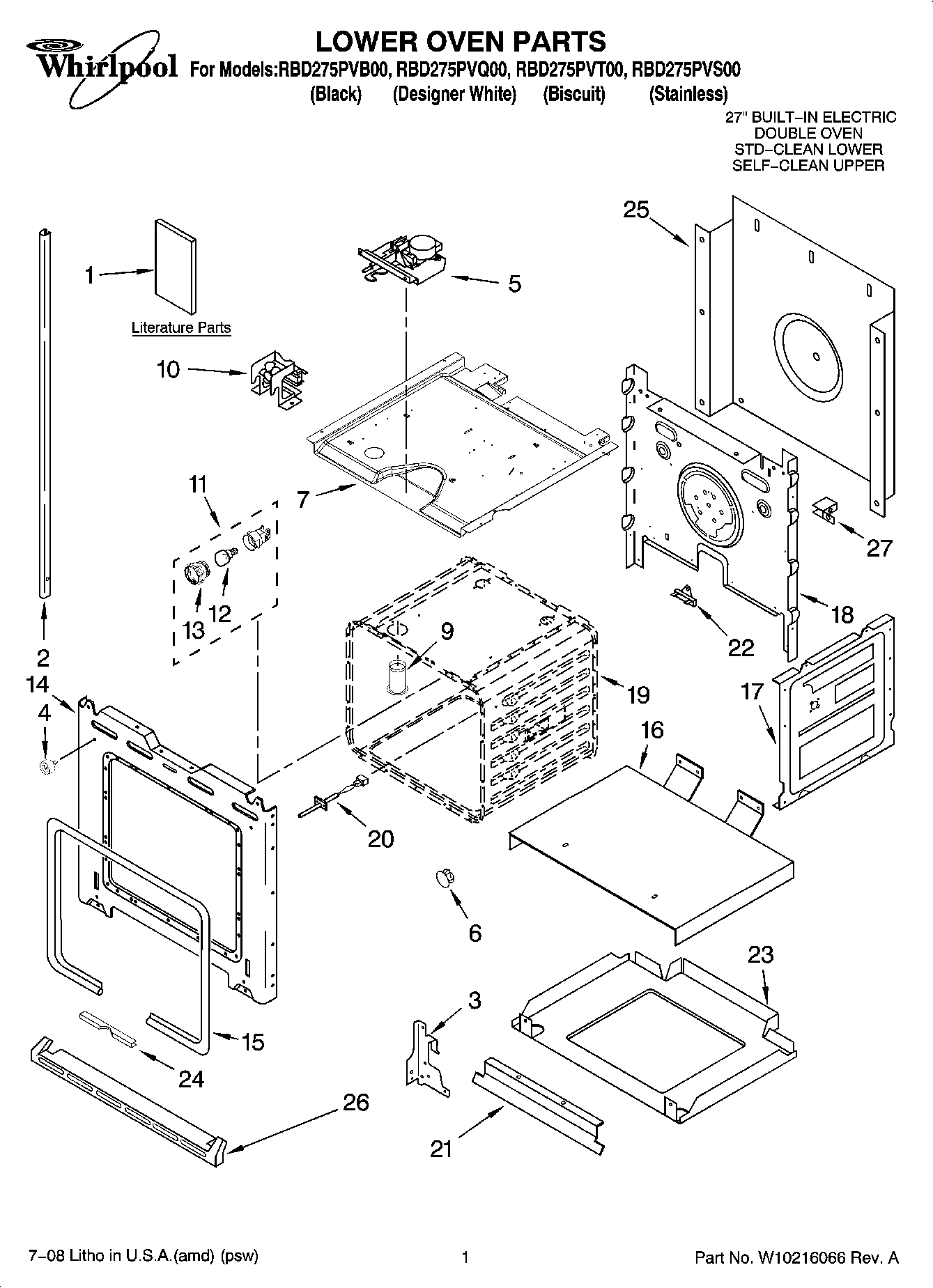

RBD275PVT00 01 – LOWER OVEN PARTS

Products

Position	Product
	WPL 4449315
	Insulation
	WPL 4450364
	Following Parts Not Illustrated
1	Use & Care Guide
1	Tech Sheet (Oven)
1	Installation Instructions
2	Trim, Side Right (Biscuit)
2	Trim, Side Right (White)
2	WPW10339502 Whirlpool Trim Kit
2	WPW10339500 Whirlpool Trim
2	WPW10339499 Whirlpool Trim Assembly
2	Trim, Side Right (Stainless)
2	TRIM, SIDELEFT (STAINLESS)
2	TRIM, SIDELEFT (BISCUIT)
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	WP9760889 Whirlpool Door Latch
6	4450935 Whirlpool Oven Door Plug
7	Top, Chassis
9	SCREW
9	W10861715 Whirlpool Vent Tube
10	Fan & Bracket Assy
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Lens, Light (2)
14	Screw
14	WP4450118 Whirlpool Nut
14	Frame, Front
15	Gasket, Door
16	Support, Insulation
17	W10782197 Whirlpool Side Panel
18	Back, Chassis
19	Liner, Oven (Not serviceable)
20	WPW10131825 Whirlpool Oven Temperature Sensor
21	Deflector, Vent
22	WP4451354 Whirlpool Thermal Fuse Assembly
23	Base, Chassis
24	WP4448933 Whirlpool Retainer
24	WP4449154 Whirlpool Screw
25	WP4451747 Whirlpool Rear Cover
26	WP3400832 Whirlpool Screw
26	Trim, Bottom Vent (Stainless)
26	Trim, Bottom Vent (White)
26	Trim, Bottom Vent (Biscuit)
26	Trim, Bottom Vent (Black)
27	WPL 4449845
27	WP4449809 Whirlpool Screw
