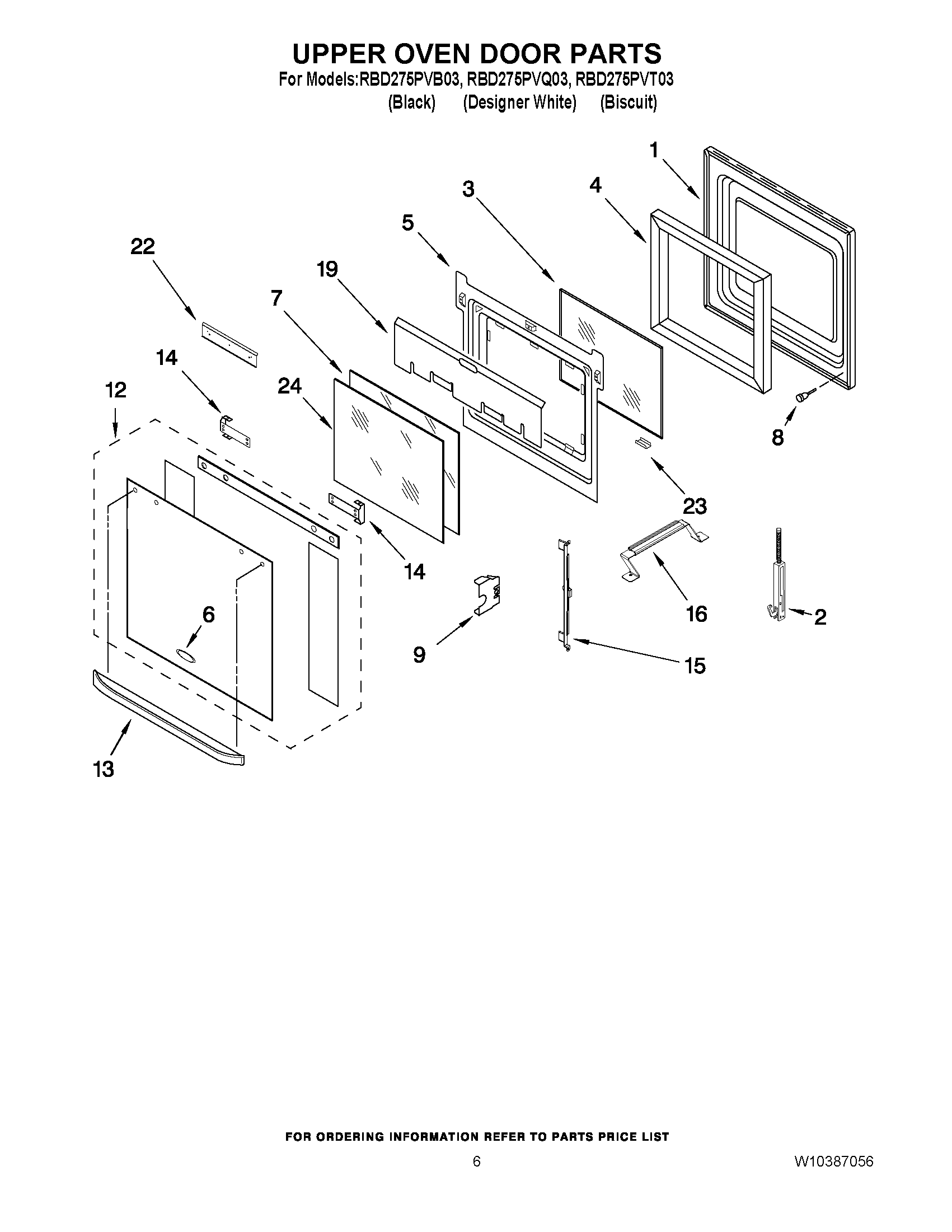

RBD275PVT03 04 – UPPER OVEN DOOR PARTSadmin2025-04-26T11:26:36+00:00RBD275PVT03 04 – UPPER OVEN DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Door Liner |
| 2 | WP9760572 Whirlpool Door Hinge |
| 2 | WP9760571 Whirlpool Door Hinge |
| 2 | WP4449743 Whirlpool Screw |
| 3 | WP4449253 Whirlpool Glass Window |
| 4 | Insulation, Sides |
| 5 | Retainer, Glass |
| 6 | Nameplate |
| 7 | Glass, Inner |
| 8 | 4448520 Whirlpool Oven Bumper |
| 9 | 4452152 Whirlpool Oven Mounting Bracket |
| 12 | Assembly, Door Glass (Biscuit) |
| 12 | ASSEMBLY, DOOR GLASS (BLACK) |
| 12 | ASSEMBLY, DOOR GLASS (WHITE) |
| 13 | Door Handle (Biscuit) |
| 13 | Door Handle (White) |
| 13 | W10169802 Whirlpool Microwave Door Handle |
| 14 | Bracket, Handle (L.Hand) |
| 14 | 4455803 Whirlpool Oven Bracket |
| 15 | WP9759229 Whirlpool Mounting Bracket |
| 16 | Bracket (3rd Glsss) |
| 19 | Shield, Heat |
| 19 | SCREW |
| 22 | Shield, Heat (Bottom) |
| 23 | RETAINER, CLIP (BLACK) |
| 23 | RETAINER, CLIP (WHITE) |
| 23 | CLIP, RETAINER (BISCUIT) |
| 24 | WP9759227 Whirlpool Glass Door |
