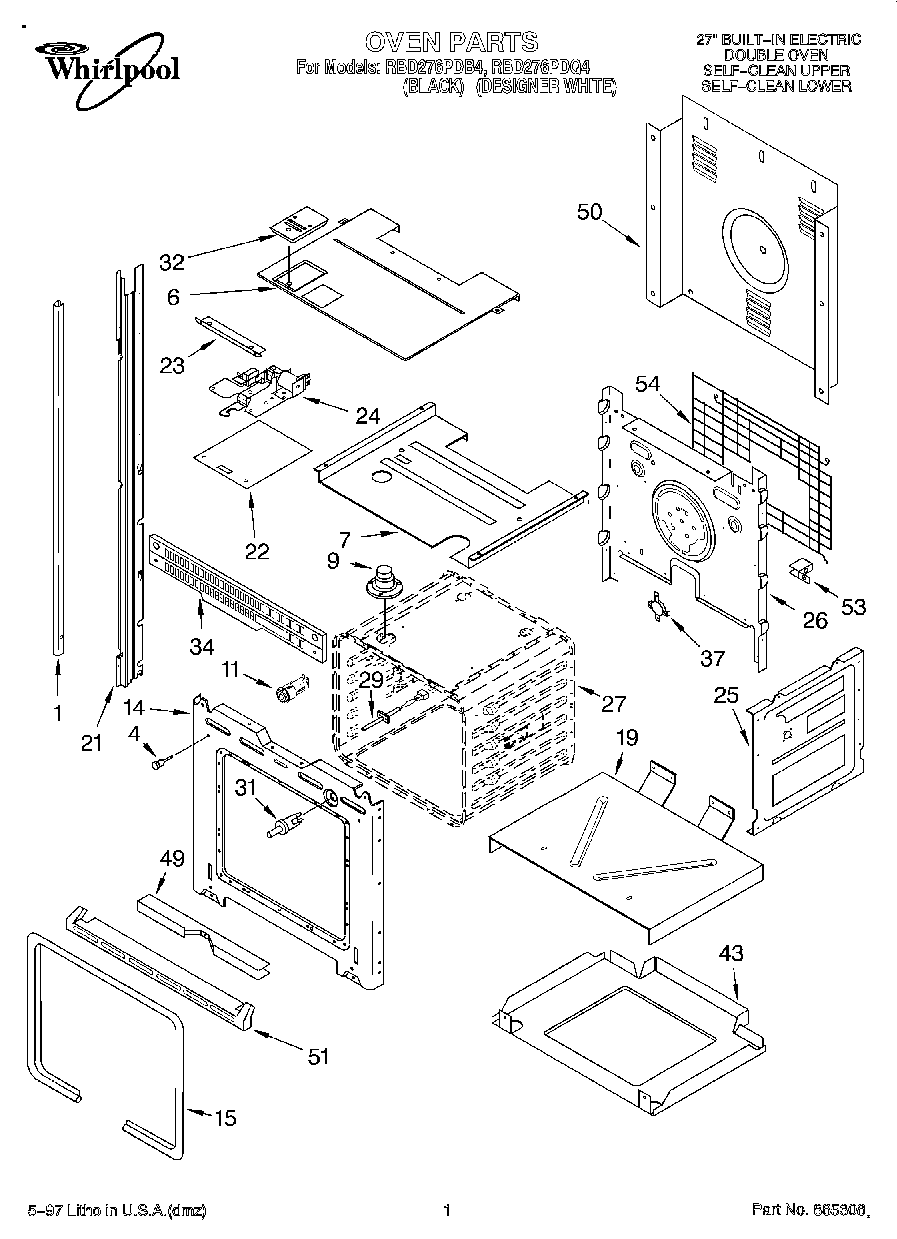

RBD276PDB4 01 – OVEN

Products

Position	Product
1	Trim, Side (Left Hand)) (White Model)
1	Trim, Side (LH Black)
1	Trim, Side (Right Hand) (White Model)
1	Trim, Side (RH Black)
1	Trim, Side (White)
1	WP8281236 Whirlpool Screw
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Partition
9	Tube, Vent
11	WPW10734065 Whirlpool Light
14	Frame, Front
14	WP4450118 Whirlpool Nut
14	Screw
15	WP4455381 Whirlpool Door Gasket
19	Support, Insulation
21	814374 Whirlpool Oven Rail Mount
21	814373 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
22	Shield, Latch
22	Trim, Bottom (Screw)
23	Deflector, Latch
24	Latch Assy
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
31	Switch, Door
32	Vent Box Assy
34	Vent, Center
37	WP4450934 Whirlpool Thermostat Assembly
37	WP4450249 Whirlpool Thermostat
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	Cover, Back
51	Tri
51	WPL 4448476
51	Screw, (2)
53	WPL 4449845
54	WP4449809 Whirlpool Screw
54	Spacer, Harness
54	WPL 4449315
54	WPL 4450364
