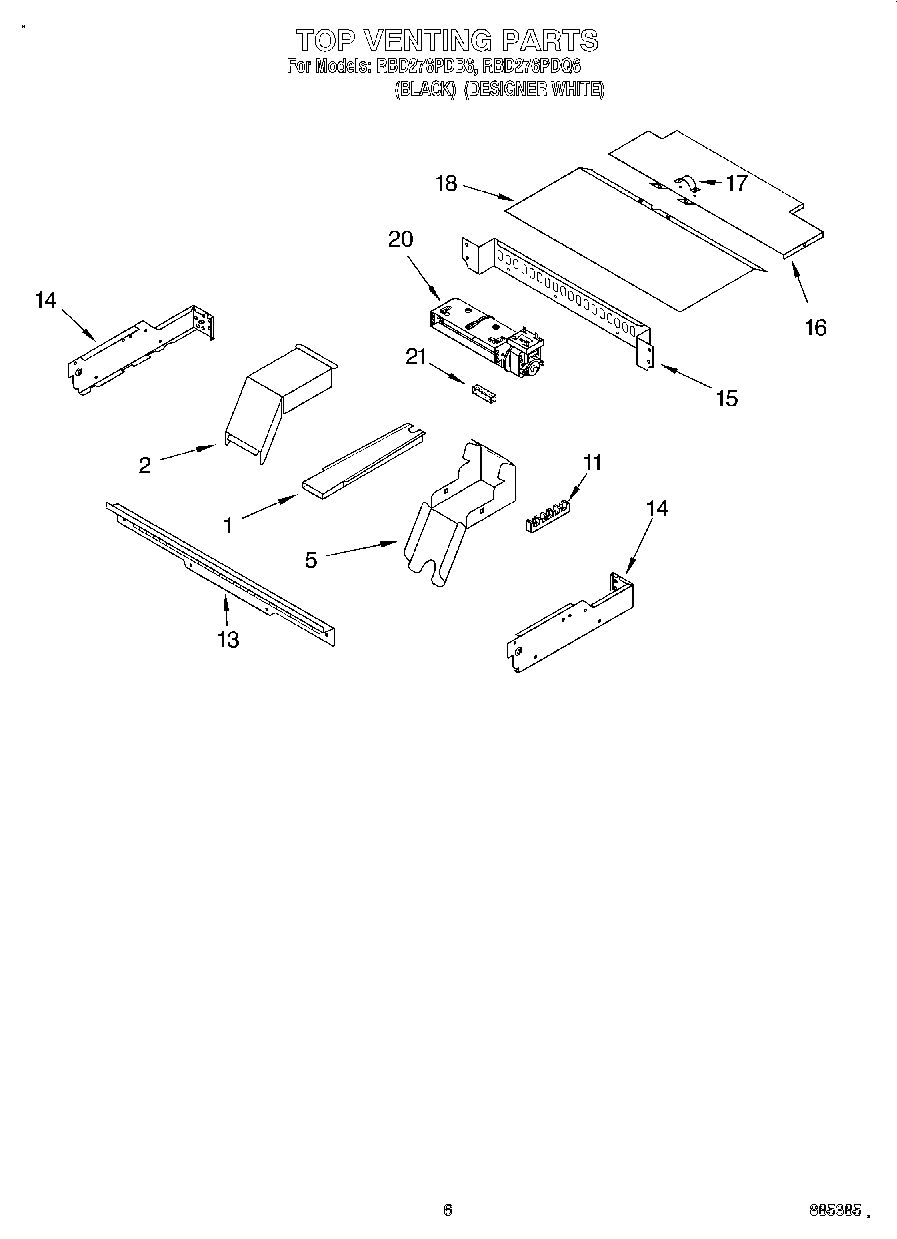

RBD276PDB6 05 – TOP VENTING, OPTIONAL

RBD276PDB6 05 – TOP VENTING, OPTIONAL

Written by

in

RBD276PDB6 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
54455177 Whirlpool Oven Bottom Elbow
11WP8203546 Whirlpool Terminal Block
11WP3387230 Whirlpool Screw
13Vent, (Control Panel)
13WP4450038 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16Cover, Top Rear
18Cover, Top Front
20WPW10016550 Whirlpool Blower Cooling Fan
21Wire (14 Ga. 150 c Green)
21WPL 4452239
21Wire (14 Ga. 150 c Yellow)
21Wire (12 Ga. 150 c Black)
21Wire (14 Ga. 150 c Orange)
2118 Ga. 80~c Rating (Red)
21Wire (14 Ga. 200 c Brown)
211
21WPL 591014
21Wire, 25` Roll (Black 14 Ga.)
214451761 Whirlpool Oven Support Bracket
21261900 Whirlpool Microwave Spray
21WP4451042 Whirlpool Thermal Fuse
21Harness, Wire (Main)
21Wire (14 Ga. 150 c Brown)
21WPW10339879 Whirlpool Wire Tie
214450800 Whirlpool Oven Screw
214448664 Whirlpool Oven Mounting Bracket
21Wire, 25“ Roll (White 14 GA.)
21Wire, 25` Roll (Red 14 Ga.)
21WP112432 Whirlpool Nut Assembly
21W10491987 Whirlpool Foam Seal
21WP4449809 Whirlpool Screw
2172017 Whirlpool Appliance Touch-Up Paint White
21285006 Whirlpool Spray
2172032 Whirlpool Touch Up Paint Black
21Wire (14 Ga. 150 c Blue)
21WP261869 Whirlpool Microwave Paint
21242831 Whirlpool Oven Wire
21Spacer, Harness
2116515 Whirlpool Clip
21Conduit, Double
21WP4448950 Whirlpool Screw
21814381 Whirlpool Pin
21WP482338 Whirlpool Refrigerator Adhesive
21350930 Whirlpool White Spray Paint
