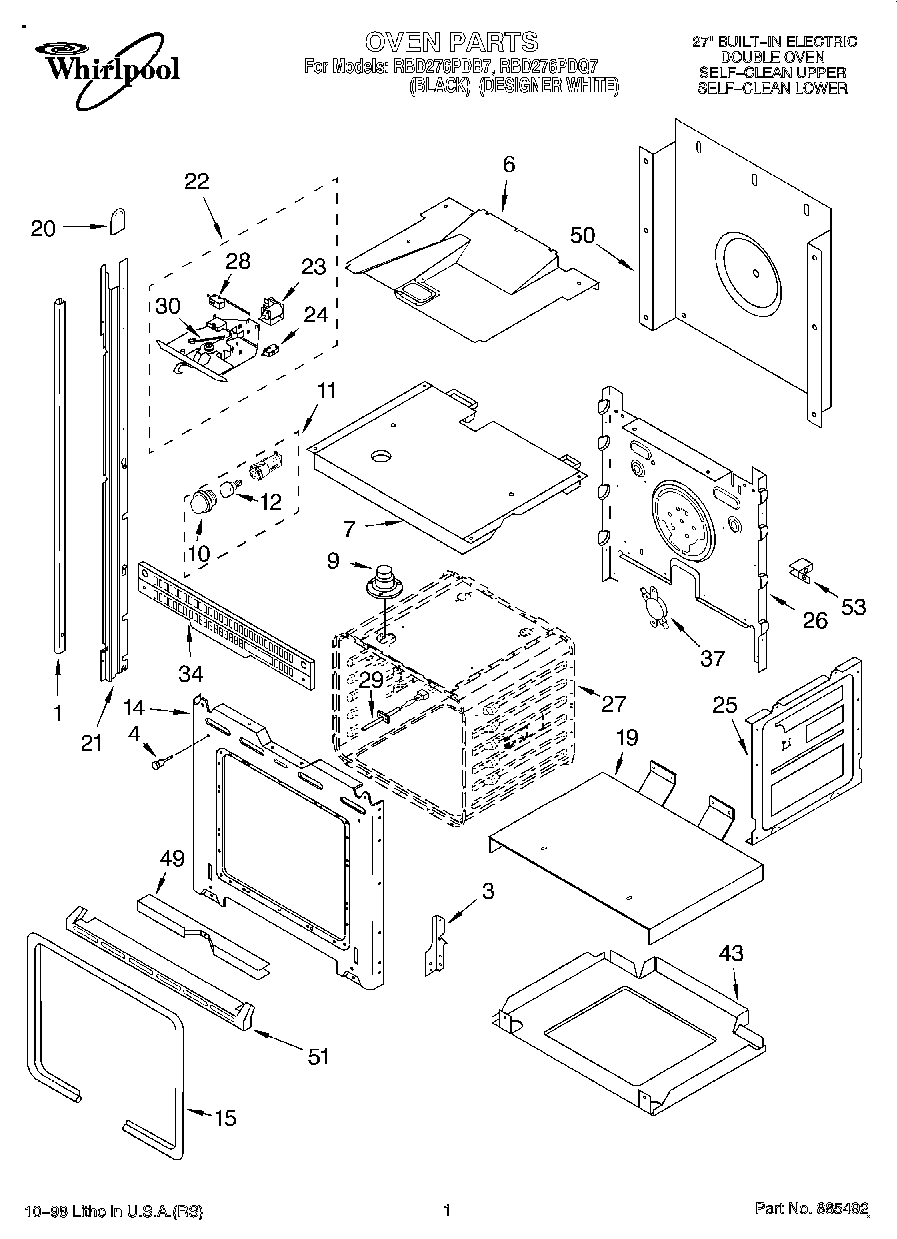

RBD276PDB7 01 – OVEN

Products

PositionProduct
1Trim, Side (White)
1Trim, Side (Left Hand)) (White Model)
1Trim, Side (LH Black)
1Trim, Side (Right Hand) (White Model)
1Trim, Side (RH Black)
1WP8281236 Whirlpool Screw
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21814373 Whirlpool Oven Rail Mount
21814374 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
22Latch Assembly
23Solenoid
24Micro Switch N.C.
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
28Microswitch
29Sensor
30Spring, Latch
34Vent, Center
37WP9759243 Whirlpool Thermostat
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WPL 4448476
51Screw, (2)
51Tri
53WPL 4449315
53WPL 4450364
53WP4449809 Whirlpool Screw
53WPL 4449845
