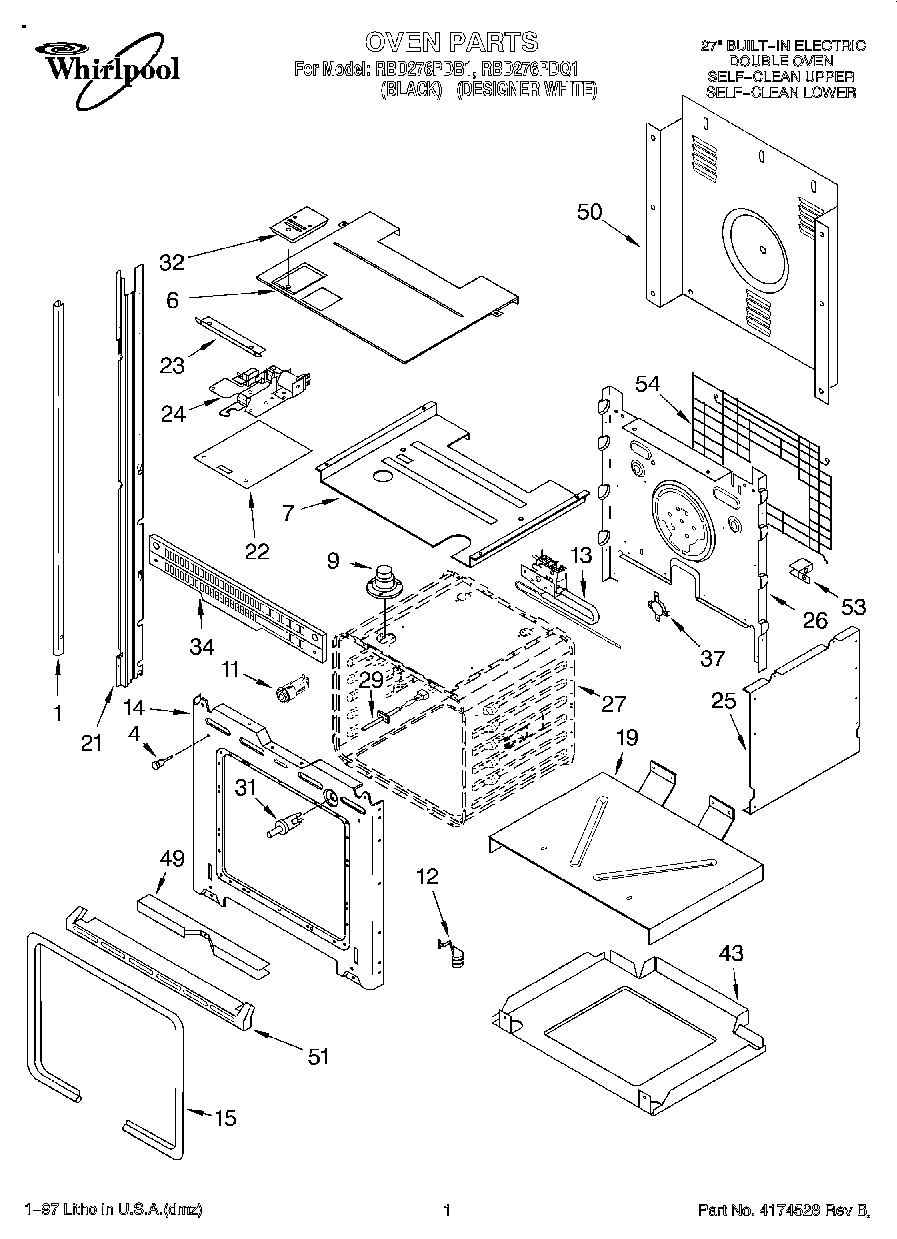

| 1 | Trim, Side (LH Black) |
| 1 | Trim, Side (Right Hand) (White Model) |
| 1 | Trim, Side (RH Black) |
| 1 | WP8281236 Whirlpool Screw |
| 1 | Trim, Side (White) |
| 1 | Trim, Side (Left Hand)) (White Model) |
| 4 | 4448520 Whirlpool Oven Bumper |
| 6 | Divider, Vent |
| 7 | Partition |
| 9 | Tube, Vent |
| 11 | WPW10734065 Whirlpool Light |
| 12 | 98005642 Whirlpool Clip |
| 13 | Safety Switch (Oven Temp) |
| 14 | Frame, Front |
| 14 | Screw |
| 15 | WP4455381 Whirlpool Door Gasket |
| 19 | Support, Insulation |
| 21 | 814373 Whirlpool Oven Rail Mount |
| 21 | 814374 Whirlpool Oven Rail Mount |
| 21 | WP4448444 Whirlpool Grommet |
| 22 | Shield, Latch |
| 23 | Deflector, Latch |
| 24 | Latch, Assy |
| 25 | Trim, Bottom (Screw) |
| 25 | Side, Chassis (R.H. & L.H.) |
| 26 | Back, Chassis |
| 27 | Liner, Oven (Not a Serviceable Part) |
| 29 | Sensor |
| 31 | Switch, Door |
| 32 | Vent Box Assy |
| 34 | Vent, Center |
| 34 | WP4450249 Whirlpool Thermostat |
| 34 | WP4450934 Whirlpool Thermostat Assembly |
| 43 | Base, Chassis |
| 49 | WP4449154 Whirlpool Screw |
| 49 | WP4448933 Whirlpool Retainer |
| 50 | Cover, Back |
| 51 | Tri |
| 51 | WPL 4448476 |
| 51 | Screw, (2) |
| 53 | WPL 4449845 |
| 54 | WP4449809 Whirlpool Screw |
| 54 | WPL 4449315 |
| 54 | WPL 4450364 |
| 54 | Spacer, Harness |
