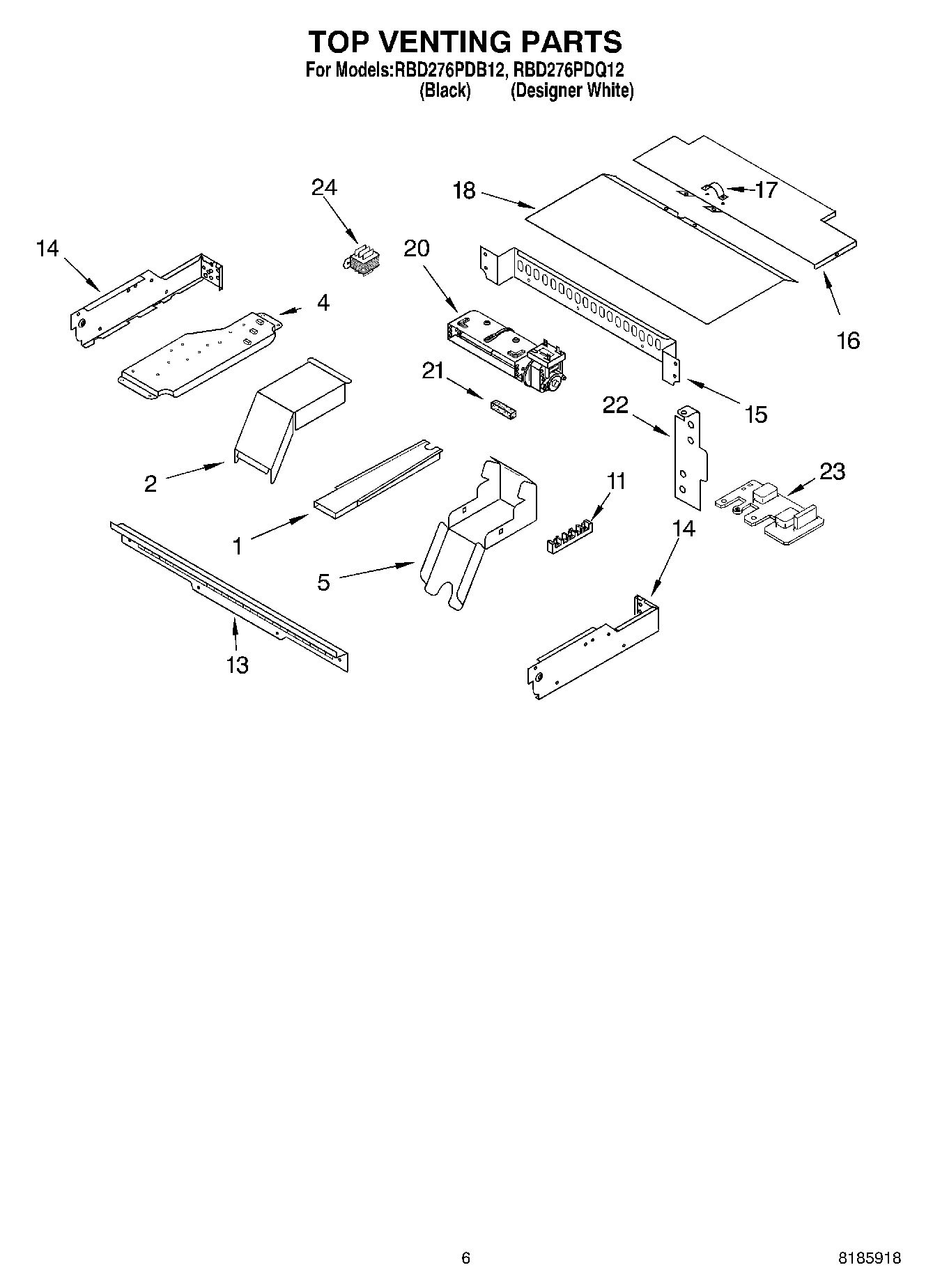

RBD276PDQ12 05 – TOP VENTING

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
4Plate, Mounting
54455177 Whirlpool Oven Bottom Elbow
11WP8203546 Whirlpool Terminal Block
11Screw
13Vent, (Control Panel)
13WP4450038 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16Cover, Top Rear
18Cover, Top Front
20WPW10016550 Whirlpool Blower Cooling Fan
20Blower
20WP4455352 Whirlpool Mounting Bracket
21W10491987 Whirlpool Foam Seal
224455191 Whirlpool Oven Mounting Plate
23WP4451985 Whirlpool Noise Filter Board
24Wire (12 Ga. 150 c Black)
244451761 Whirlpool Oven Support Bracket
24Transformer, Control
2418 Ga. 80~c Rating (Red)
24Wire (14 Ga. 200 c Brown)
241
24261900 Whirlpool Microwave Spray
24WPL 591014
24Harness, Wire (Latch)
24Wire, 25` Roll (Red 14 Ga.)
24Harness, Wire (Main)
24Wire (14 Ga. 150 c Yellow)
2472032 Whirlpool Touch Up Paint Black
24285006 Whirlpool Spray
24WPW10339879 Whirlpool Wire Tie
244450800 Whirlpool Oven Screw
244448664 Whirlpool Oven Mounting Bracket
24Wire, 25“ Roll (White 14 GA.)
24Wire, 25` Roll (Black 14 Ga.)
24WP112432 Whirlpool Nut Assembly
24WP4449809 Whirlpool Screw
2472017 Whirlpool Appliance Touch-Up Paint White
24WP482338 Whirlpool Refrigerator Adhesive
24814381 Whirlpool Pin
24Wire (14 Ga. 150 c Orange)
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Brown)
24Wire (14 Ga. 150 c Blue)
24WP261869 Whirlpool Microwave Paint
24242831 Whirlpool Oven Wire
24Spacer, Harness
2416515 Whirlpool Clip
24Conduit, Double
24WP4448950 Whirlpool Screw
24350930 Whirlpool White Spray Paint
