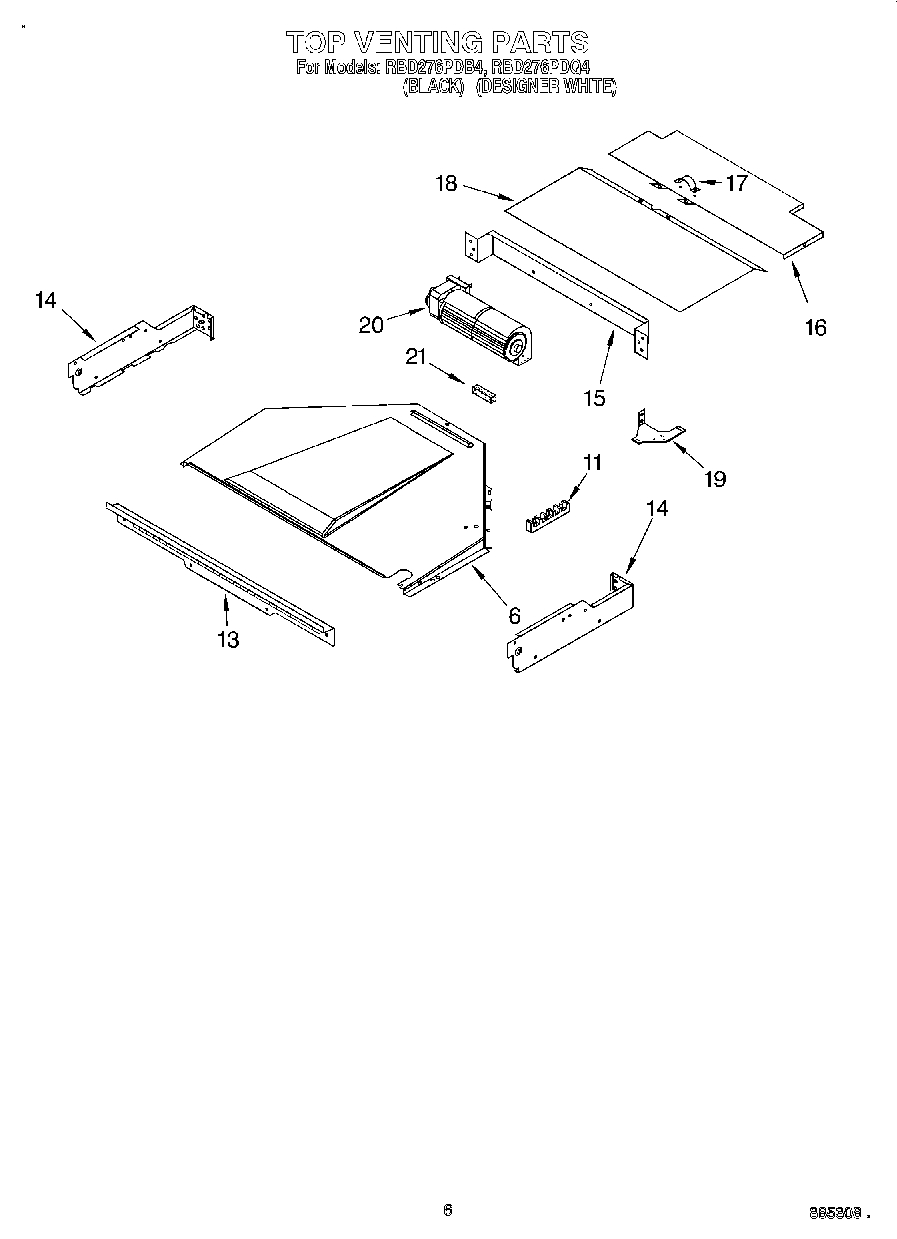

RBD276PDQ4 05 – TOP VENTING, OPTIONALadmin2025-04-26T11:24:30+00:00RBD276PDQ4 05 – TOP VENTING, OPTIONAL
Products
| Position | Product |
|---|
| 6 | Exhaust Duct |
| 11 | WP3387230 Whirlpool Screw |
| 11 | WP8203546 Whirlpool Terminal Block |
| 13 | Vent, (Control Panel) |
| 13 | WP4450038 Whirlpool Screw |
| 14 | W10755214 Whirlpool Side Complete |
| 14 | W10790240 Whirlpool Side Assembly Complete |
| 15 | Back, Control |
| 16 | Cover, Top Rear |
| 18 | Cover, Top Front |
| 19 | Bracket, Blower |
| 20 | Blower |
| 21 | 1 |
| 21 | Wire (14 Ga. 200 c Brown) |
| 21 | 18 Ga. 80~c Rating (Red) |
| 21 | Wire (12 Ga. 150 c Black) |
| 21 | Harness, Wire (Main) (Also, Order Door Switch Harness) |
| 21 | Harness, Wire (Door Switch) (Also, order Main Harness) |
| 21 | WP4451042 Whirlpool Thermal Fuse |
| 21 | WPL 591014 |
| 21 | 261900 Whirlpool Microwave Spray |
| 21 | Seal, Foam |
| 21 | Harness, Wire (Latch) |
| 21 | Roll Tape, Exhaust Duct |
| 21 | Wire (14 Ga. 150 c Yellow) |
| 21 | Wire (14 Ga. 150 c Orange) |
| 21 | 4450800 Whirlpool Oven Screw |
| 21 | 4448664 Whirlpool Oven Mounting Bracket |
| 21 | Wire, 25`` Roll (White 14 GA.) |
| 21 | Wire, 25` Roll (Red 14 Ga.) |
| 21 | Wire, 25` Roll (Black 14 Ga.) |
| 21 | 350930 Whirlpool White Spray Paint |
| 21 | WP112432 Whirlpool Nut Assembly |
| 21 | WP488366 Whirlpool Refrigerator Clamp |
| 21 | WP4449809 Whirlpool Screw |
| 21 | 285006 Whirlpool Spray |
| 21 | 72032 Whirlpool Touch Up Paint Black |
| 21 | Wire (14 Ga. 150 c Green) |
| 21 | Wire (14 Ga. 150 c Brown) |
| 21 | Wire (14 Ga. 150 c Blue) |
| 21 | WP261869 Whirlpool Microwave Paint |
| 21 | 242831 Whirlpool Oven Wire |
| 21 | Conduit, Double |
| 21 | WP4448950 Whirlpool Screw |
| 21 | 814381 Whirlpool Pin |
| 21 | WP482338 Whirlpool Refrigerator Adhesive |
| 21 | 72017 Whirlpool Appliance Touch-Up Paint White |
