RBD276PDQ6 02 – OVEN DOOR

RBD276PDQ6 02 – OVEN DOOR

Written by

in

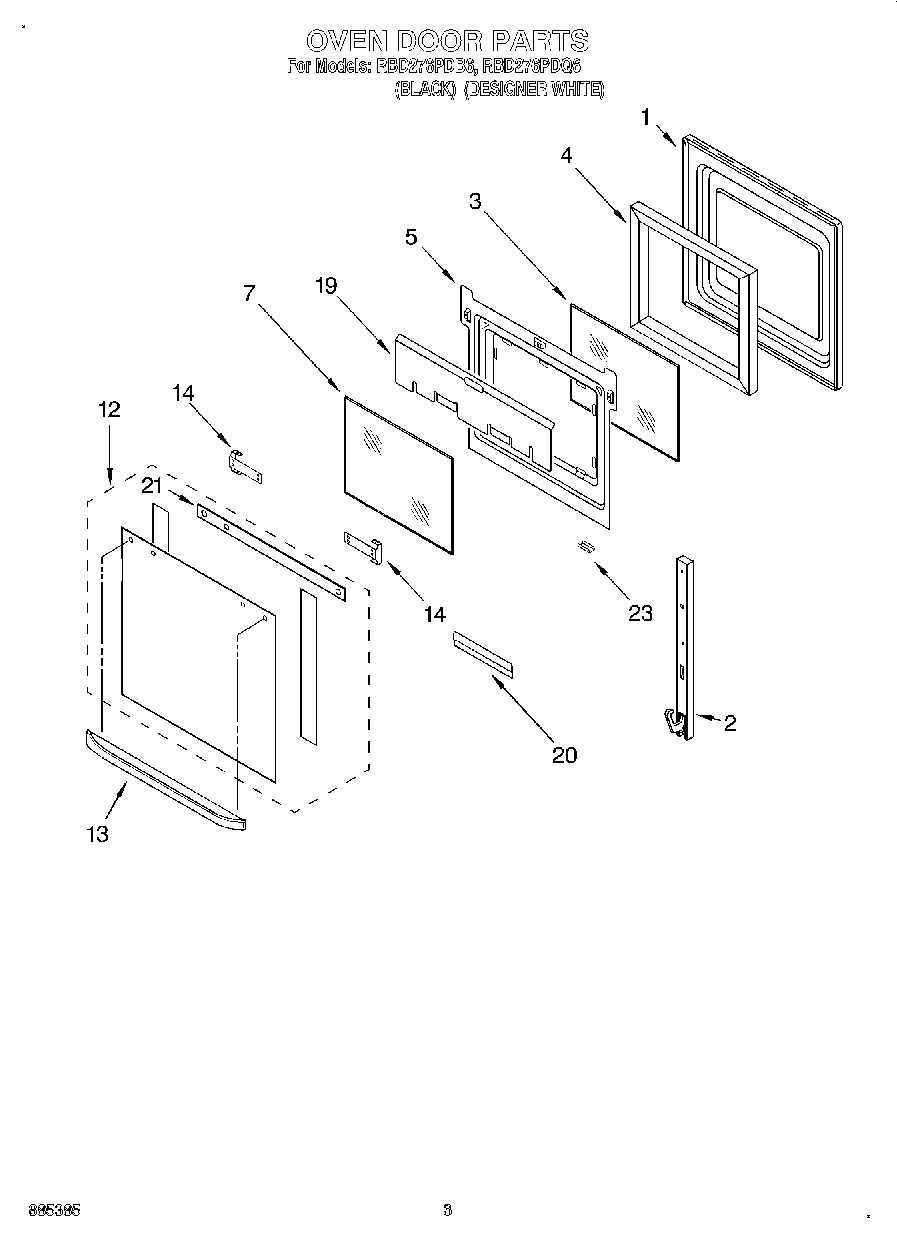

RBD276PDQ6 02 – OVEN DOOR

Products

PositionProduct
1Door Liner
2WP4455523 Whirlpool Oven Door Hinge
2WP4449743 Whirlpool Screw
3WP4449253 Whirlpool Glass Window
4Insulation, Sides
5Retainer, Glass
7WP4449257 Whirlpool Door Glass
12Door Glass, Assy (White Model)
12Door Glass Assy (Black Model)
13Handle, Door (White Model)
13Handle, Door (Black Model)
14Screw
14Bracket, Handle
19Shield, Heat
20Retainer, Glass
20WP4449809 Whirlpool Screw
21Seal, Top
23Clip, Retainer (Black Model)
23Clip, Retainer (White Model)
