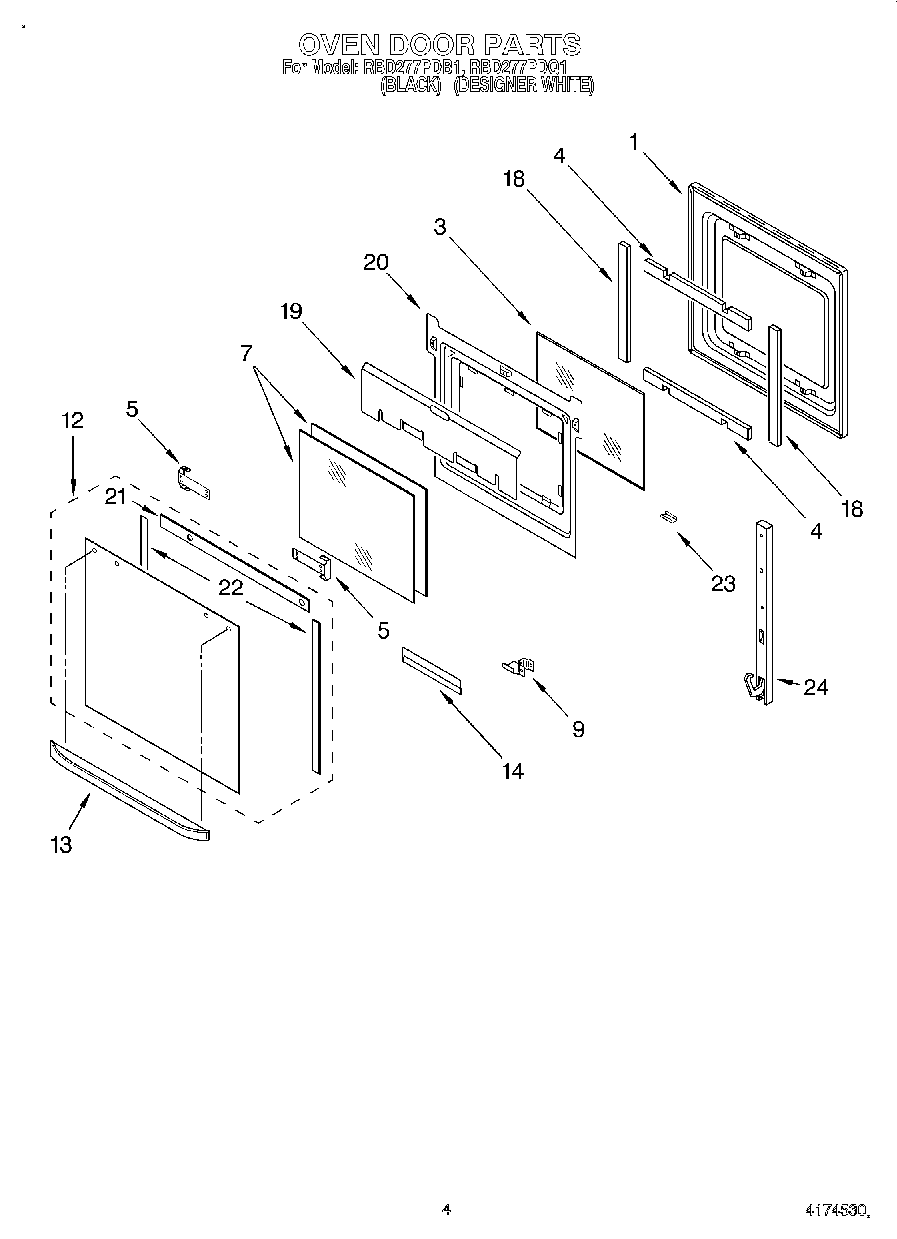

RBD277PDB1 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
4	Insulation Top and Bottom
5	Screw
5	Bracket, Handle
7	WP4449257 Whirlpool Door Glass
9	Retainer, Glass
12	Door Glass, Outer (Black Model)
12	Door Glass, Outer (White Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Retainer, Glass
18	W11688413 Whirlpool Insulation
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Top
22	Seal, Sides
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	WP4455524 Whirlpool Door Hinge
24	WP4449743 Whirlpool Screw
